Grundfos 96516552 - MTR 15-6/6 A-WB-A-HUUV | Multistage | Immersible | SelfPriming | Centrifugal | Vertical Installation | Vertical

GrundfosSKU: 96516552

Price:
Sale price$13,017.00
Build to order – stocked components, typically available in 16 business days
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
96516552 · Submersible Multistage Pump — Tank Top
MTR15HP208-230DD/460DV3.0-Phase60 HzNEMA Premium / IE3 60HzIP55 Dust/JettingStainless steel

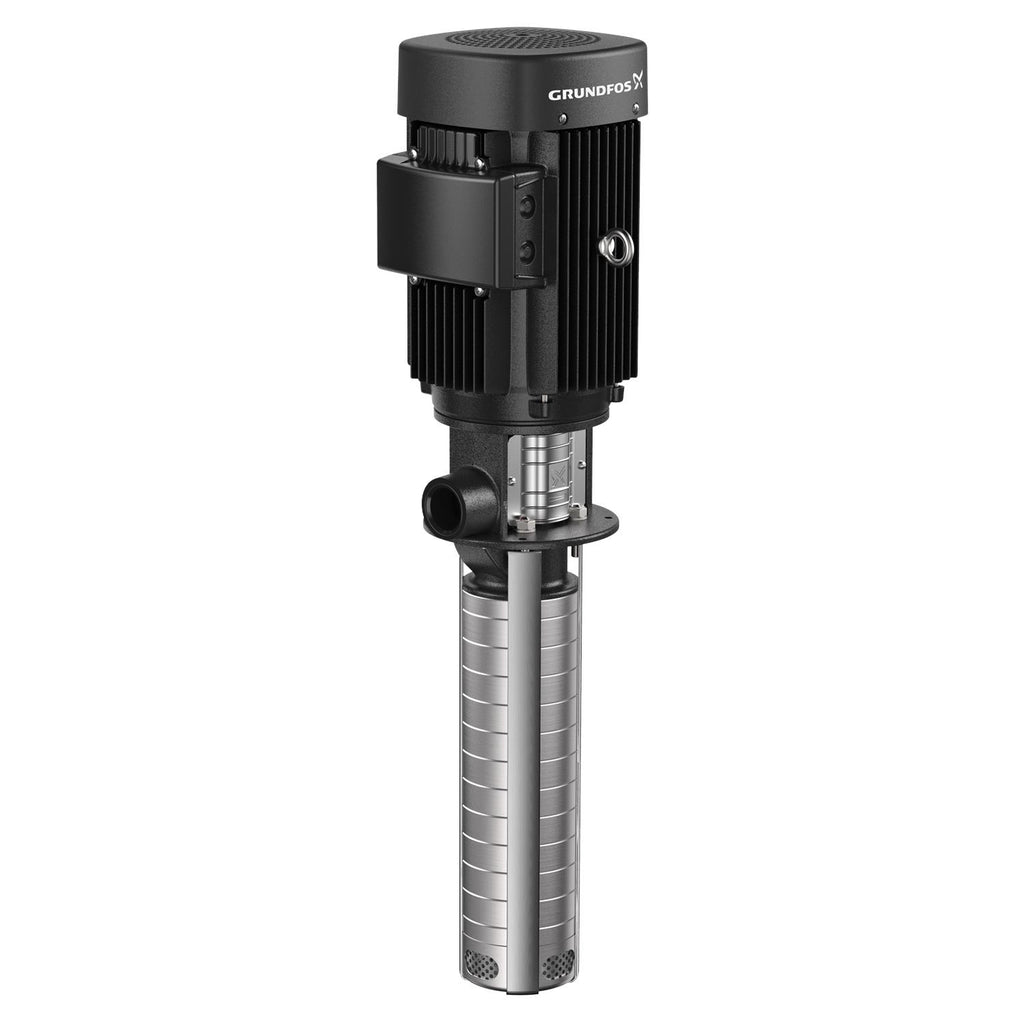

The Grundfos 96516552 (MTR 15-6/6 A-WB-A-HUUV) is a Submersible Multistage Pump — Tank Top. Vertical multistage pump for tank top mounting. For machine tool coolant, deionized water, and process liquid applications. Nominal performance: 90.3US gpm at 300.9ft. Rated 208-230DD/460DV, 3.0-Phase, 60 Hz. Applications include Machining.

Power
15HP
Voltage
208-230DD/460DV
Phase
3.0-Phase
Max Flow
90.3US gpm
Max Head
300.9ft
Max Pressure
362.59psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
NEMA Premium / IE3 60Hz motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Tank Top Installation

MTR installs directly on the tank lid — no pipe supports, no baseplate, no inline piping modifications. Ready to run in the space the tank already occupies.

Stainless Steel Throughout

All wetted parts in stainless steel. No corrosion from coolants, deionized water, cutting fluids, or mild process chemicals.

Multistage for High Head in Small Diameter

Multiple stages in a 4" or 6" diameter column provide the head of a much larger pump. Ideal where vertical space exists but floor space is limited.

Wide Flow and Head Range

MTR series covers 0.5 to 16 m³/h flow and up to 235 m head. Confirms correct model for your system requirements.

MTRE Variable Speed Option

MTRE adds an integrated frequency converter for constant pressure control. Same tank top installation, no external VFD required.

Genuine Grundfos Parts Available

As an authorized Grundfos distributor, PumpStop stocks and can source MTR repair kits, mechanical seals, and service components.

Model Information — 96516552
Series: MTR
Impeller Material: Stainless steel
Shaft Seal: HUUV
Technical Specifications
Model Number 96516552
Product Series MTR
Series Description Submersible Multistage Pump — Tank Top
Power 15HP
Voltage 208-230DD/460DV
Phase 3.0-Phase
Frequency 60 Hz
Motor Speed 3490-3530rpm
Pump Speed 3444rpm
Full Load Current 37,5-34,0/17,0A
Motor Type 160AA
Motor Protection PTC
Motor Efficiency Class NEMA Premium / IE3 60Hz
Motor Efficiency 90.5-91.0%
Insulation Class F
Protection Class (IP) IP55 Dust/Jetting
Nominal Flow 90.3US gpm
Nominal Head 300.9ft
Max Operating Pressure 362.59psi
Max Fluid Temperature 194°F
Max Ambient Temperature 104°F
Outlet Connection 2inch
Pipe Standard NPT(F)
Impeller Material Stainless steel
Shaft Seal HUUV
Approvals / Certifications CE, EAC, UKCA
Applications
Machining
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 208-230DD/460DV, 3.0-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 194°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. MTR pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — MTR Series
✓ Product Data Sheet — 96516552
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
Approvals CE,EAC,UKCA,RCM,cURus/cCSAus,Morocco
Approvals for motor CE,CC
Built-in motor protection PTC
Chambers 6
Code for shaft seal HUUV
Connect code WB
Connection NPT(F)
Curve tolerance ISO9906:2012 3B
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor 254TC
Frequency 60 Hz
Frequency converter NONE
Gross weight 309.0 lb
IE Eff. Class NEMA Premium / IE3 60Hz
IE efficiency Product name:MTR 15-6/6 A-WB-A-HUUV
IE Efficiency class NEMA Premium / IE3 60Hz
Immersion depth 14.1 in
Impeller Stainless steel
Impellers 0
Insulation F
Insulation class (IEC 85) F
IP Class 55 Dust/Jetting
Liquid max temp 194°F
Liquid temperature range 14 .. 194 °F
Material code A
Maximum ambient temperature 104 °F
Maximum operating pressure 362.59 psi
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor 254TC
Motor efficiency at 1/2 load 93.0-92.5 %
Motor efficiency at 3/4 load 92.0-92.5 %
Motor efficiency at full load 1 90.5-91.0 %
Motor standard NEMA
Motor type 160AA
n rpm F
Net weight 253.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 kW 15 HP
Phase 3
Power factor 1 0.91-0.89
Pump version A
Rated current 37,5-34,0/17,0 A
Rated flow 90.3 US gpm
Rated head 300.9 ft
Rated power - P2 15 HP
Rated speed 3490-3530 rpm
Rated voltage 3 x 208-230DD/460D V
Sales region Namreg
Service factor 1.15
Shaft Product name:MTR 15-6/6 A-WB-A-HUUV
Shaft seal HUUV
Standard NEMA
Starting current 680-900 %
Suitable for 5/6 Hz N
Terminal box position 6
Type 160AA
Type of connection NPT(F)
Version A

Motor Curves

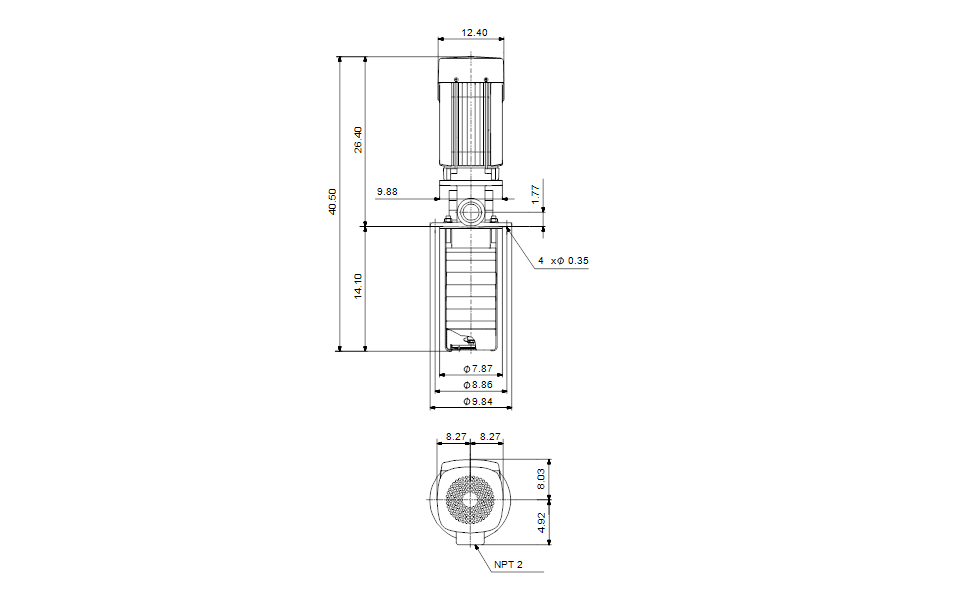

Dimensional Drawing

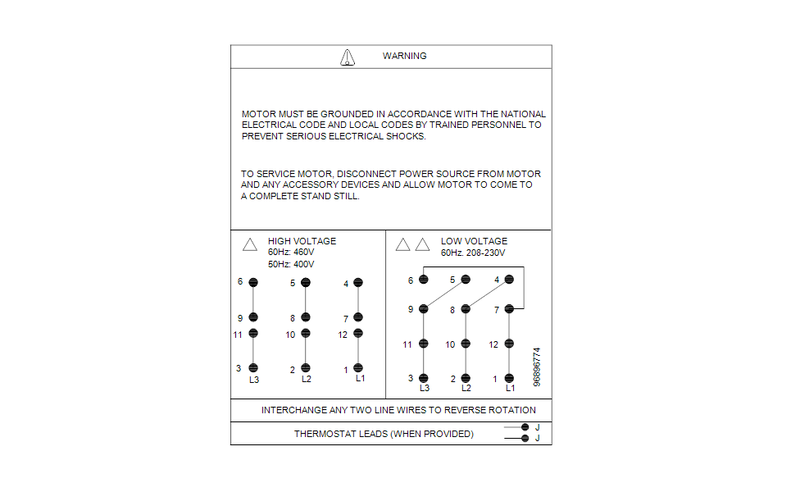

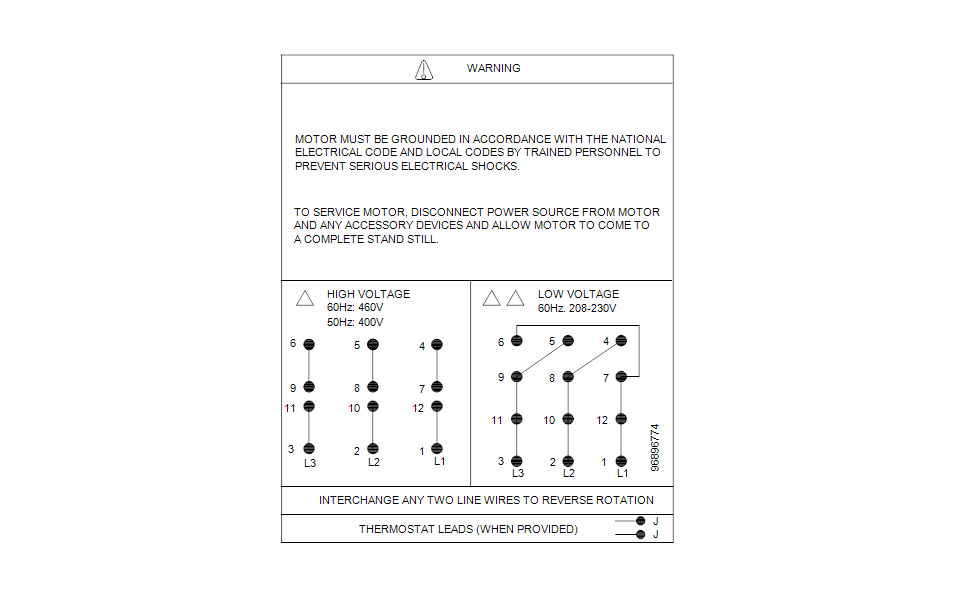

DWiring Diagram
