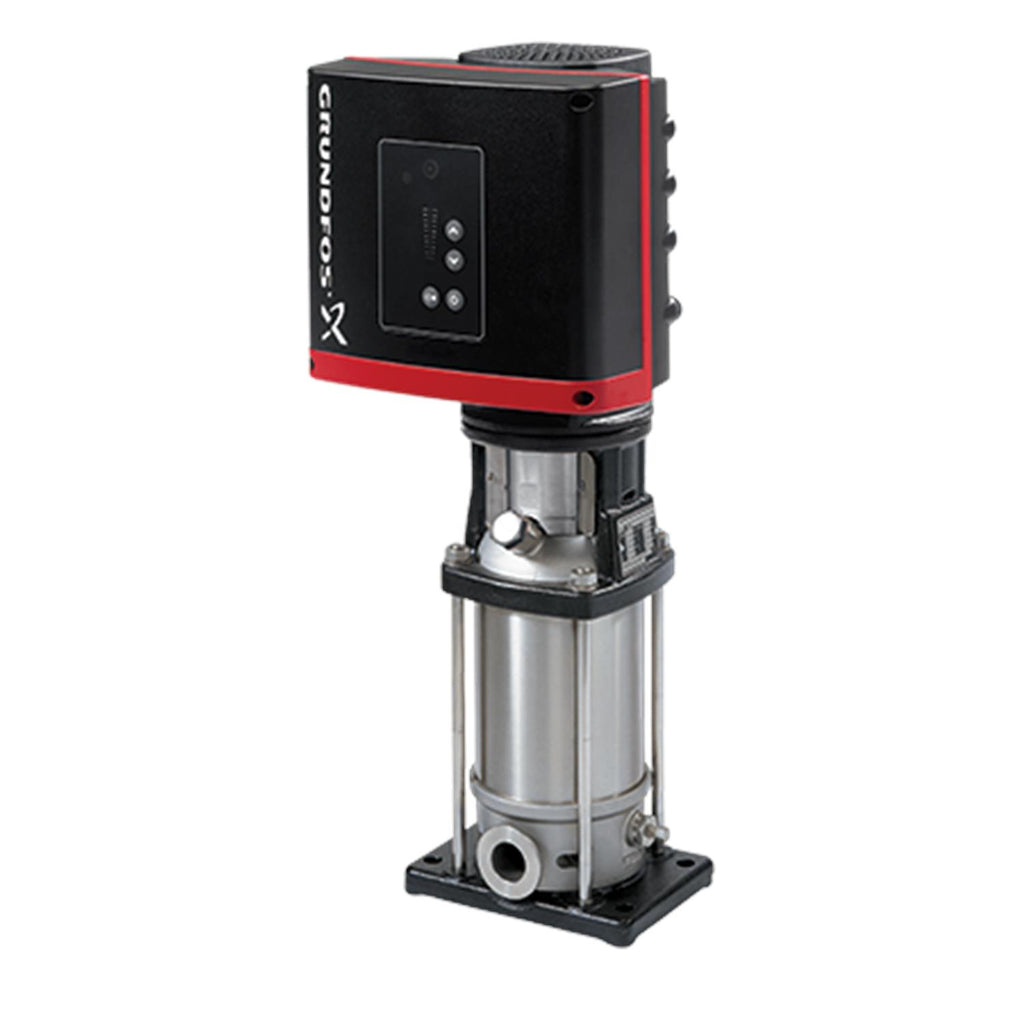

Grundfos 98419330 - CRF 10-1 A-BN-A-E-HQQE | SelfPriming | Centrifugal | Vertical | Inline

GrundfosSKU: 98419330

Price:
Sale price$6,292.00
Build to order – stocked components, typically available in 11 business days
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
CRF 10-1 A-BN-A-E-HQQE · Grundfos Accessory / Spare Part / Control
ACC1HP1-Phase60 HzIP55Stainless steel

The Grundfos 98419330 (CRF 10-1 A-BN-A-E-HQQE) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Nominal performance: 53.3US gpm at 33.14ft. Applications include Municipal solar solutions, Rotor & spray irrigation, Ground water transfer and more.

Power
1HP
Phase
1-Phase
Max Flow
53.3US gpm
Max Head
33.14ft
Max Pressure
145.04psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — CRF 10-1 A-BN-A-E-HQQE
Series: ACC
Model Code: CRF 10-1 A-BN-A-E-HQQE
Seal Type: Cartridge seal — H rubber bellows, QQ SiC/SiC faces, E EPDM O-ring
Impeller Material: Stainless steel
Housing Material: Cast iron
Shaft Seal: HQQE
Technical Specifications
Model Number 98419330
Product Series ACC
Series Description Grundfos Accessory / Spare Part / Control
Power 1HP
Phase 1-Phase
Frequency 60 Hz
Motor Speed 500-3600rpm
Pump Speed 3464rpm
Full Load Current 4.6A
Motor Type 80A
Motor Protection ELEC
Insulation Class F
Protection Class (IP) IP55
Nominal Flow 53.3US gpm
Nominal Head 33.14ft
Max Operating Pressure 145.04psi
Max Fluid Temperature 248°F
Max Ambient Temperature 122°F
Pipe Standard Oval / NPT(F)
Impeller Material Stainless steel
Housing Material Cast iron
Shaft Seal HQQE
Approvals / Certifications CE, UKCA, SEPRO, RCM
Applications
Municipal solar solutions
Rotor & spray irrigation
Ground water transfer
Livestock & Wildlife Watering
Water Treatment Fertigation
Chemigation & Dosing
Pivot & Lateral Irrigation
Frost protection
Solar boosting and water supply solutions
Controls and digital groundwater management
Solar controls and digital water management
Municipal solar solutions
Agriculture solar solutions
Livestock watering with solar solutions
Community solar solutions
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation.
Temperature limits Do not exceed max fluid temperature 248°F or max ambient temperature 122°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — CRF 10-1 A-BN-A-E-HQQE
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
Approvals CE
Approvals for drinking water NSF/ANSI 61
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 98425073
Connect code BN
Connection "2" NPT" inch
Control panel HMI200 - Standard
Curve tolerance ISO9906:2012 3B
DOE Pump Energy Index VL 0.42
Dual frequency YES
Enclosure class (IEC 34-5) IP55
Flange size for motor 56C
Function Module FM300 - Advanced
Gross weight 109.0 lb
Housing Cast iron
Impeller Stainless steel
Impellers 1
Insulation F
Insulation class (IEC 85) F
IP Class IP55
Liquid max temp 248°F
Liquid temperature range -4 .. 248 °F
Material code A
Maximum ambient temperature 122 °F
Maximum operating pressure 145.04 psi
Model A
Motor 56C
Motor type 80A
n rpm F
Net weight 90.9 lb
P2 kW 1 HP
Phase 1
Power factor 1 0.99
Power input - P1 0.88 kW
Pump housing Cast iron
Pump version A
Rated current 4.6 A
Rated flow 53.3 US gpm
Rated head 33.14 ft
Rated power - P2 1 HP
Rated speed 500-3600 rpm
Rated voltage Product name:CRF 10-1 A-BN-A-E-HQQE
Rated voltage ac 1 x 90-240 V
Rated voltage dc 30 - 300 V
Rubber E
Sales region Namreg
Shaft Product name:CRF 10-1 A-BN-A-E-HQQE
Shaft seal HQQE
Size of connection "2" NPT" inch
Stages 2
Type 80A
Type of connection Oval / NPT(F)
Version A

Motor Curves

Dimensional Drawing

DWiring Diagram
