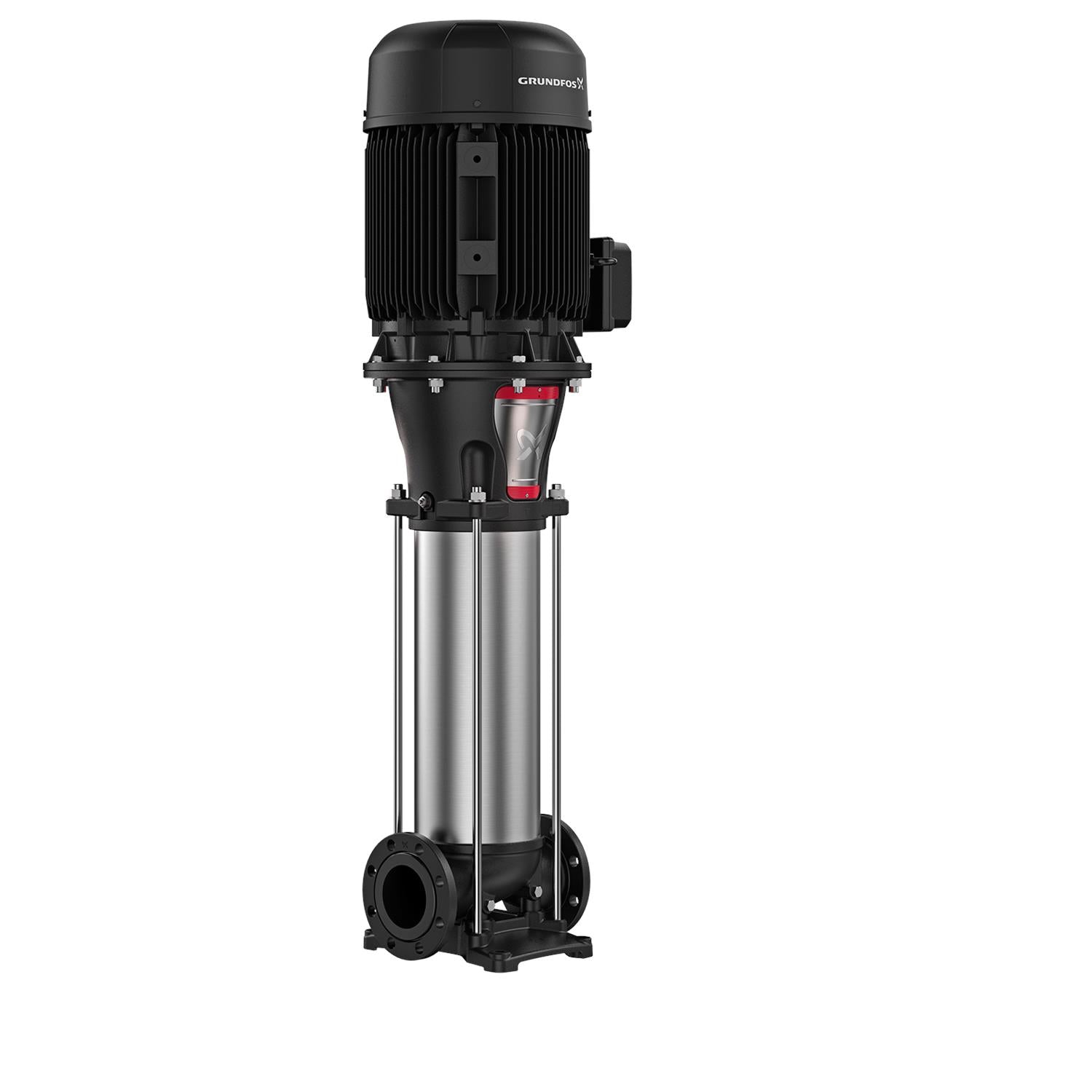

Grundfos 99918386 - CR 95-1-1 A-G-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

Save $4,594.56
GRUNDFOSSKU: 99918386

Price:
Sale price$4,977.44 Regular price$9,572.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CR 95-1-1 A-G-A-E-HQQE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. The Grundfos cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via ANSI flanges. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

EAN 5715114132589
Applications Industrial applications
Actual impeller diameter 6.07 in
Approvals for drinking water NSF/ANSI 61,NSF/ANSI 372
Bearing 1 WC/WC
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection ANSI
Connection 2 150 lb
Cooling IC 411
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 6.07 in
DOE Pump Energy Index CL 0.93
Enclosure class (IEC 34-5) IP55
Eta 1/1 0.91
Flange size for motor 254TC
Frequency 60 HZ
Frequency converter NONE
Full load SF current 40/20 A
Gross weight 699.0 lb
IE Eff. Class IE3 / NEMA Premium
IE efficiency IE3 91%
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 1
Insulation F
Insulation class (IEC 85) F
Liquid max temp 120°C
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material certified according to European standards
Material code A
Material Pricing Group 33
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 119.1 ft
Maximum operating pressure 232.06 psi
Maximum permissible operating pressure 16bar
Model A
Motor 254TC
Motor efficiency at 1/2 load 0.895
Motor efficiency at 3/4 load 0.91
Motor efficiency at full load 1 0.91
Motor protec NONE
Motor standard NEMA
Motor type WEG
n rpm 3525rpm
Net weight 439.0 lb
Number of poles 2
Number of reduced-diameter impellers 1
P2 HP 15 HP
P2 kW 11kW
Phase 3
Power (P2) required by pump 15 HP
Power factor 1 0.87
Pressure rating 150 lb
Pressure rating for connection 150 lb
Product family CR 95
Pump 15 HP
Pump housing Ductile cast iron
Pump inlet 4
Pump outlet 4
Pump version A
Pumped liquid Water
Rated current 34.8/17.4 A
Rated flow 500 US gpm
Rated flow 2 500 US gpm
Rated head 76.78 ft
Rated head 2 76.78 ft
Rated power - P2 15 HP
Rated speed 3525 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Shaft seal HQQE
Stages 1
Standard NEMA
Starting current 6.8
Support bearing Graflon
Thrust handling device N
Type WEG
Type of connection ANSI
Version A

Motor Curves

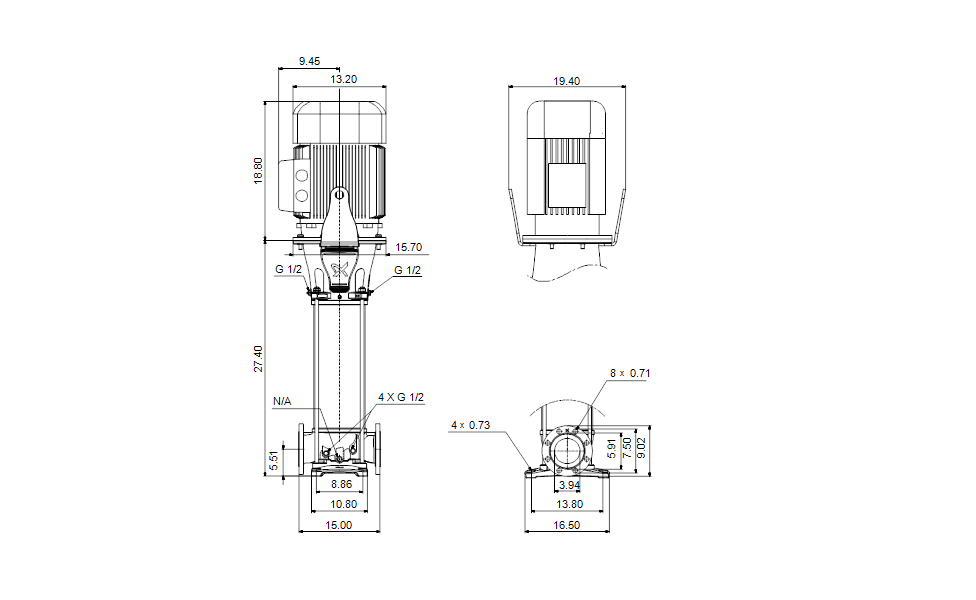

Dimensional Drawing

DWiring Diagram
