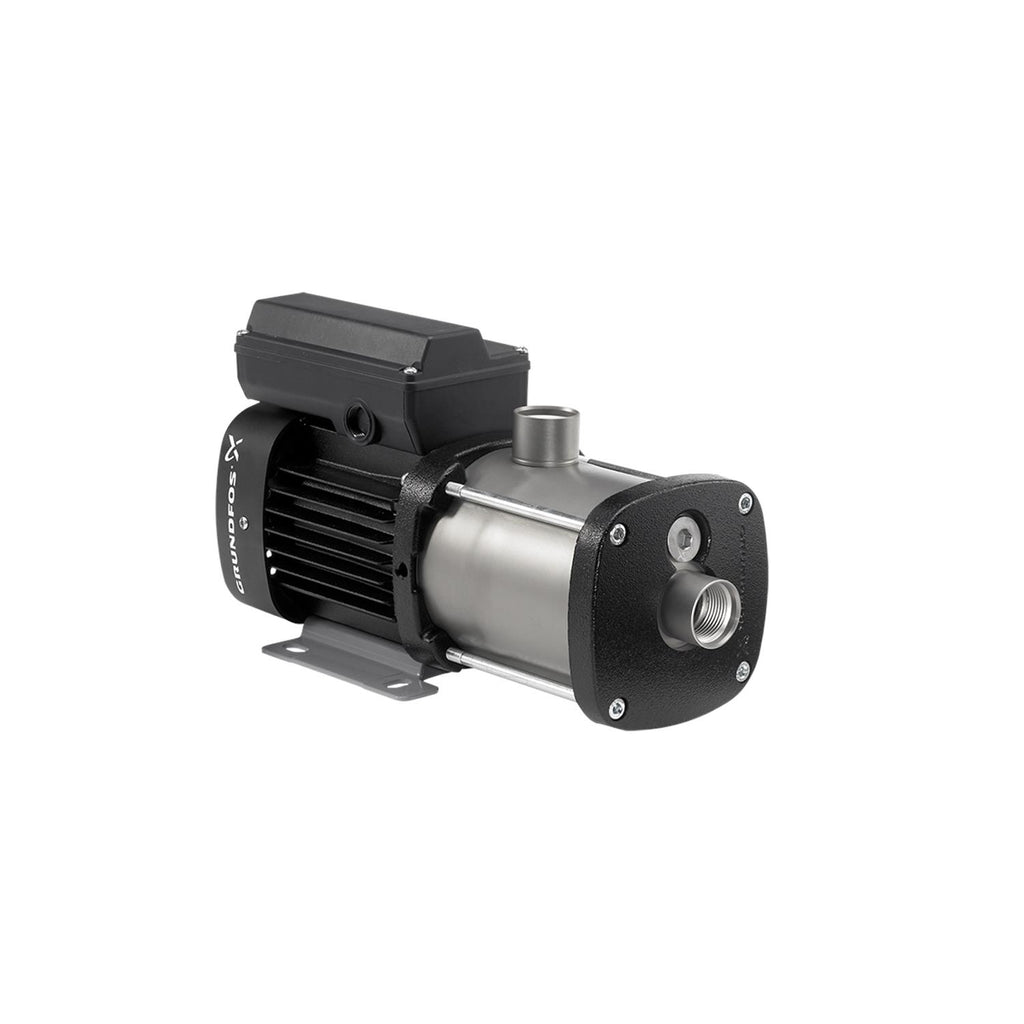

Grundfos 97776654 - CM 1-8 A-S-I-E-AQQE B-A-A-N | Horizontal | End Suction | Centrifugal

GrundfosSKU: 97776654

Price:
Sale price$2,454.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
Grundfos 97776654 - CM 1-8 A-S-I-E-AQQE B-A-A-N | Horizontal | End Suction | Centrifugal · Genuine Grundfos Part
CM SeriesGenuine Grundfos PartSpare Part / Accessory

The Grundfos 97776654 is a genuine Grundfos spare part, repair kit, or accessory compatible with the CM series (End-suction close coupled multistage). Confirm compatibility with your specific pump model before ordering.

Genuine Grundfos
OEM part — engineered and tested to Grundfos specifications
Authorized Distributor
Full manufacturer warranty and traceability on all genuine parts
Compatibility
Verify part number against your pump model and serial number before ordering
Expert Support
Parts identification help available — call (781) 281-8905 or chat
Compatible Pump Series — CM
Reliable, quiet and compact horizontal end-suction pump. The modular pump design makes it easy to customize performance. Suitable for water supply, pressure boosting, and liquid transfer in domestic and light commercial applications.
End-suction close coupled multistage
Part Details
Part Number 97776654
Compatible Series Grundfos CM
Product Category End-suction close coupled multistage
Part Type Genuine Grundfos OEM spare part / accessory
Important Notices
Compatibility Always verify this part number against your pump model number and serial number before ordering. Grundfos CM pumps are available in multiple configurations — not all parts are interchangeable between variants.
Genuine parts only Using non-genuine parts can affect pump performance, invalidate warranty, and cause premature failure. PumpStop supplies genuine Grundfos OEM parts only.
Installation Refer to the Grundfos Service Manual for your specific pump model for correct installation and torque specifications. Contact PumpStop for documentation.
Documentation
✓ Service Manual — CM Series
✓ Spare Parts List — CM Series
✓ Installation and Operating Manual (IOM)
Need the service manual or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm this part number is correct for your specific pump model and serial number. For parts identification assistance, chat or call (781) 281-8905.
EAN 5710624244050
Applications Heating, Air-conditioning, Pressure boosting, Domestic water supply, Industrial applications
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Cable included (Yes/No) N
Code for rubber E
Code for shaft seal AQQE
Connect code S
Connection 1 inch
Curve tolerance ISO9906:2012 3B
Density 998.2 kg/m³
Enclosure class (IEC 34-5) IP55
Frame size 80BA
Frequency converter NONE
Gross weight 19.4 kg
Housing Stainless steel
Impeller Stainless steel
Impellers 8
Insulation class (IEC 85) F
Liquid temperature range -20 .. 90 °C
Mains frequency 60 Hz
Material code I
Material Pricing Group 35
Max pressure at stated temp 16 bar / 90 °C
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.68
Model A
Motor standard NEMA
Net weight 16.9 kg
Outlet position 12
Product family CM
Pump housing Stainless steel
Pump speed on which pump data are based 3480 rpm
Pump version A
Pumped liquid Water
Range of ambient temperature -20 .. 55 °C
Rated current 14.6/7.3 A
Rated flow 2.04 m³/h
Rated head 72.56 m
Rated power - P2 1.1 kW
Rated speed 3320 rpm
Rated voltage 1 x 115/230 V V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 20 °C
Service factor 1
Size 80BA
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Standard NEMA
Starting current 320-320 %
Suitable for 50/60 Hz N
Terminal box position 12
Type of connection NPT(F)
Version A

Motor Curves

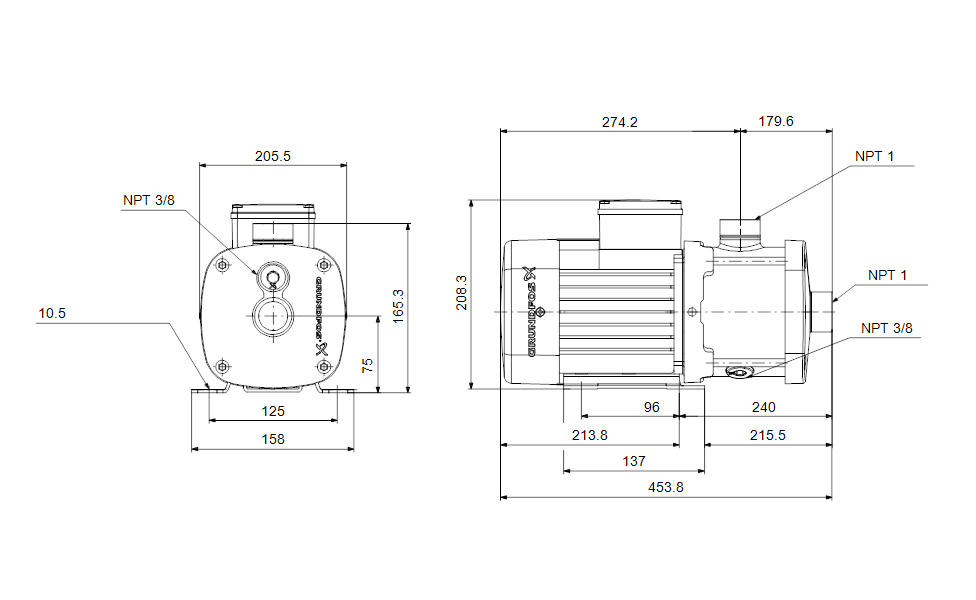

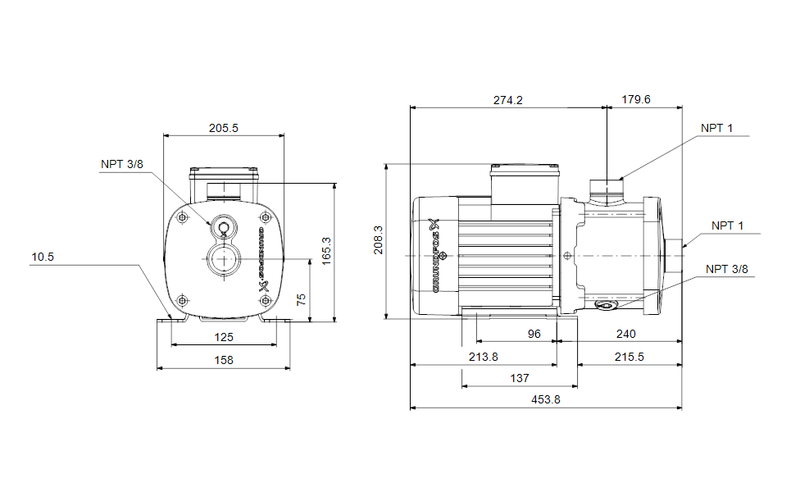

Dimensional Drawing

DWiring Diagram
