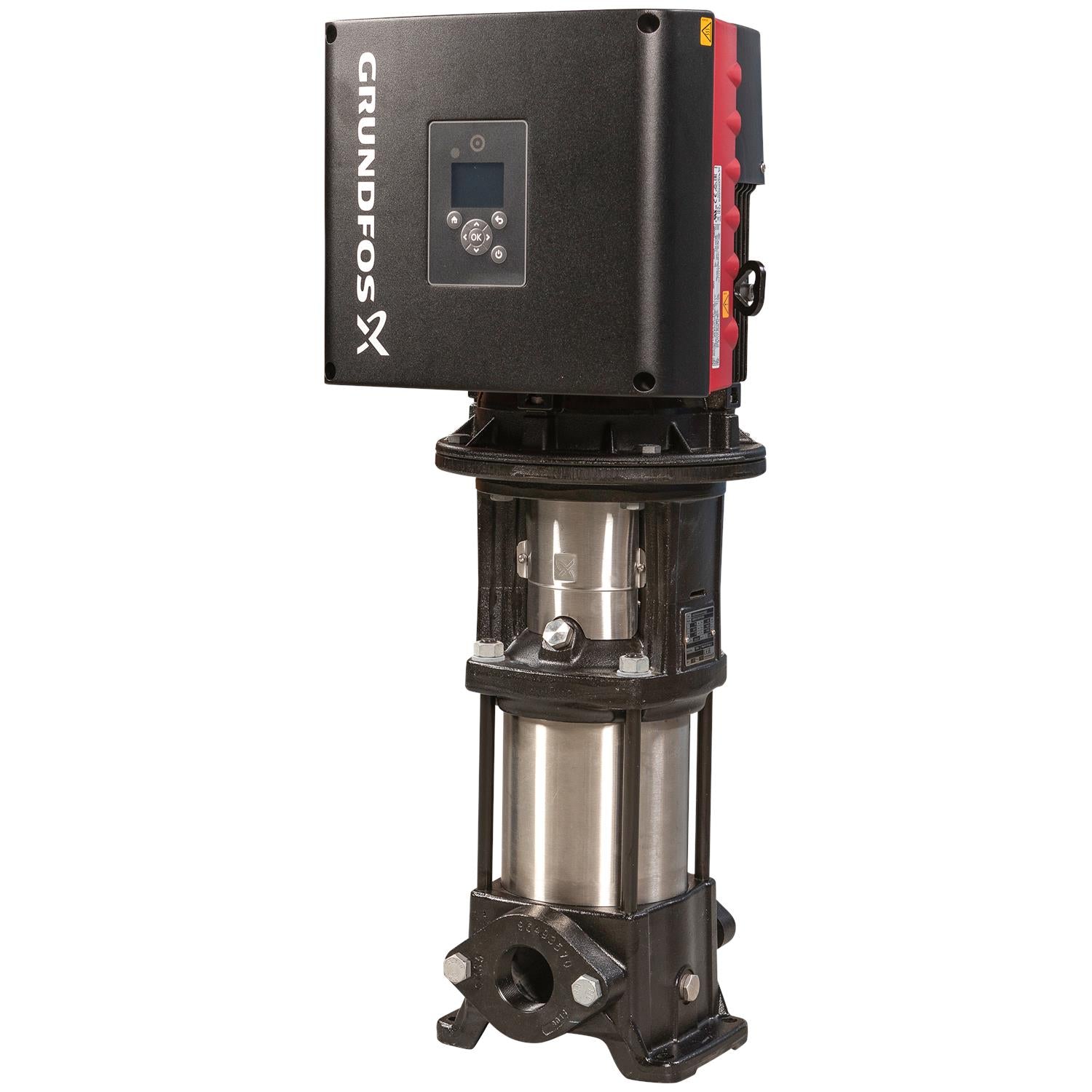

Grundfos 99340786 - CRE 3-8 A-B-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

GrundfosSKU: 99340786

Price:
Sale price$5,377.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
Grundfos 99340786 - CRE 3-8 A-B-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline · Genuine Grundfos Part
CRE SeriesGenuine Grundfos PartSpare Part / Accessory

The Grundfos 99340786 is a genuine Grundfos spare part, repair kit, or accessory compatible with the CRE series (Inline multi stage pumps). Confirm compatibility with your specific pump model before ordering.

Genuine Grundfos
OEM part — engineered and tested to Grundfos specifications
Authorized Distributor
Full manufacturer warranty and traceability on all genuine parts
Compatibility
Verify part number against your pump model and serial number before ordering
Expert Support
Parts identification help available — call (781) 281-8905 or chat
Compatible Pump Series — CRE
Vertical, multistage centrifugal pump with integrated frequency converter. The pump head and base are in cast iron — all wetted parts in stainless steel. Variable speed built in — no external drive required.
Inline multi stage pumps
Part Details
Part Number 99340786
Compatible Series Grundfos CRE
Product Category Inline multi stage pumps
Part Type Genuine Grundfos OEM spare part / accessory
Important Notices
Compatibility Always verify this part number against your pump model number and serial number before ordering. Grundfos CRE pumps are available in multiple configurations — not all parts are interchangeable between variants.
Genuine parts only Using non-genuine parts can affect pump performance, invalidate warranty, and cause premature failure. PumpStop supplies genuine Grundfos OEM parts only.
Installation Refer to the Grundfos Service Manual for your specific pump model for correct installation and torque specifications. Contact PumpStop for documentation.
Documentation
✓ Service Manual — CRE Series
✓ Spare Parts List — CRE Series
✓ Installation and Operating Manual (IOM)
Need the service manual or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm this part number is correct for your specific pump model and serial number. For parts identification assistance, chat or call (781) 281-8905.
EAN 5713827513954
Applications Industrial applications
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Bearing 1 SIC
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 98498870
Connect code B
Connection PN 16
Control panel Graphical
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange size for motor 56C
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 71.8 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 250.3 ft
Maximum operating pressure 16 bar
Model A
Motor Standard motor size
Motor efficiency at full load 1 0.869
Motor standard NEMA
Motor type 80B
Net weight 60.8 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.1 kW
Power factor 1 0.99
Pressure rating for connection PN 16
Pressure sensor N
Product family CRE 3
Pump 1.1 kW
Pump speed on which pump data are based 3450 rpm
Pump version A
Pumped liquid Water
Rated current 6.70-5.60 A
Rated flow 15.4 US gpm
Rated head 185.7 ft
Rated power - P2 1.1 kW
Rated speed 360-4000 rpm
Rated voltage 1 x 200-240 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Stages 8
Standard NEMA
Terminal box position 6
Type 80B
Type of connection Oval / NPT(F)
Version A

Motor Curves

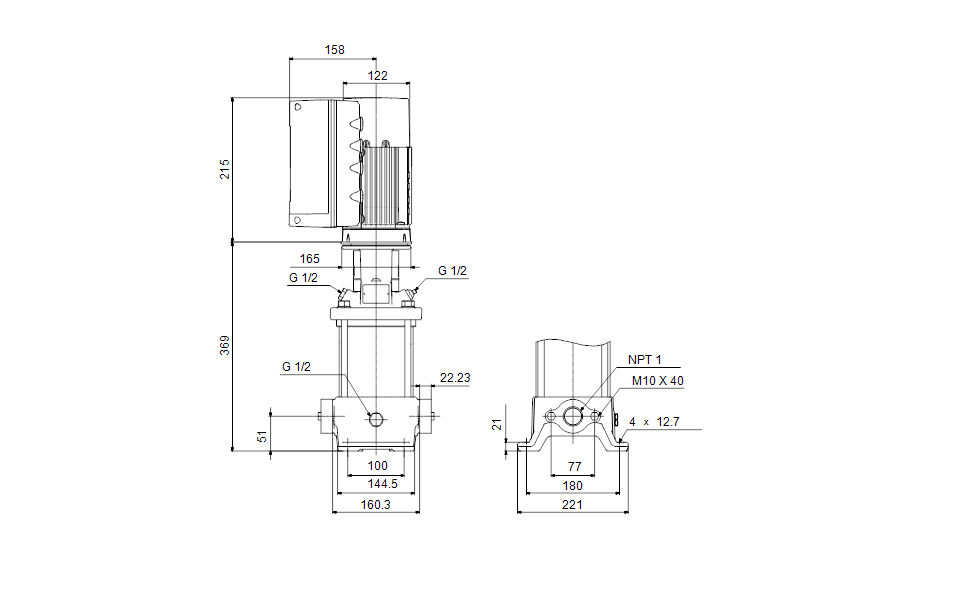

Dimensional Drawing

DWiring Diagram
