Description

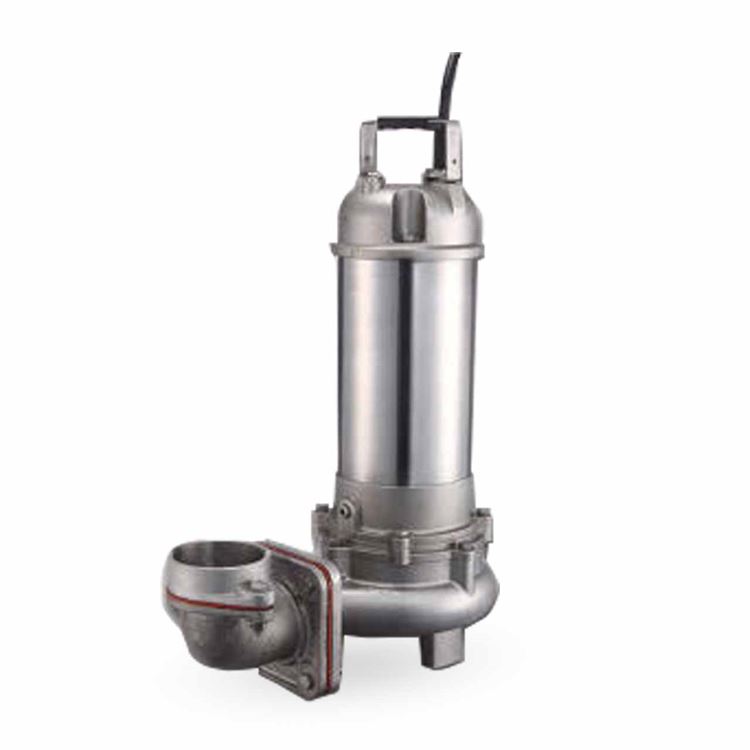

Barmesa BSV Series Submersible Stainless Vortex Sewage Pump
A Submersible Pump that is useful for a variety of applications such as dewatering, sump, effluent and utility. Pump may be operated in dry conditions for extended periods of time without damage to the motor and/or seals.
Barmesa BSV Series Submersible Stainless Vortex Sewage Pump Features
For Continuous Duty, Dry Type, Insulation Class B, Protection IP68.
316 Stainless Steel Motor Housing
Ball Bearings are Single Row, Permanently Oil Lubricated for Radial and Thrust Load.
Double Mechanical Seal, Oil Filled Chamber
Seal is Carbon-Ceramic Upper Seal, Silicone Carbide Lower Seal, Stainless Steel Spring.
Impeller is 316 Series Stainless Steel; 8 Vane, Semi-Open Vortex.
2.0" NPT Vertical Elbow Discharge
Temperature Rating: 104°F (40°C)
Motor Curves
