Description

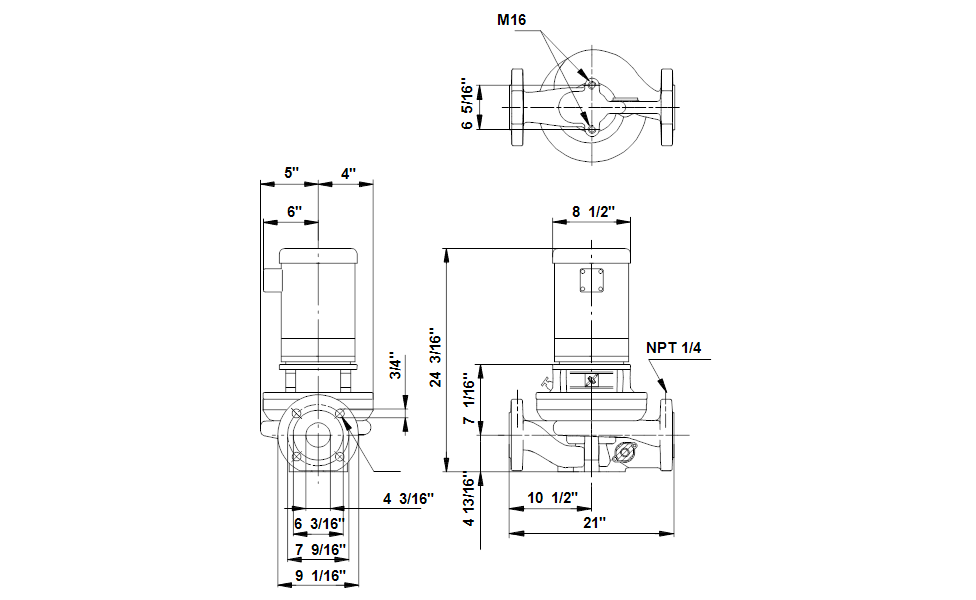

TP 100-160/2 A-G-Z-BUBE-JX2 | Single-stage centrifugal volute in-line single-head pump: neck rings and impeller made of stainless steel
cataphoresis treatment
shell coupling
top-pull-out principle for easy maintenance
optimized hydraulics
in-line design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation
corrosion resistant maintenance-free mechanical shaft seal. The motor is a 3-phase AC motor.
Motor efficiency at full load 1
0.865
Maximum operating pressure
145.04 psi
Power factor 1
0.89-0.86
Rated voltage
3 x 208-230YY/460Y V
Thermal protec
external
KVA code
K
Liquid temperature range
5 .. 284 °F
Insulation class (IEC 85)
F
Motor efficiency at 1/2 load
0.84
Built-in motor protection
NONE
Net weight
174.0 lb
Rated speed
3510-3530 rpm
Gross weight
193.0 lb
Rated power - P2
3 HP
Motor efficiency at 3/4 load
0.865
Shaft
Product name:TP 100-160/2 A-G-Z-BUBE-JX2
Rated current
8,35-7,80/3,9 A
Service factor
1.15
Pipe connection
4"
Full load SF current
9,5-8,95/4,5 A
Motor type
ML90FA, TEFC
Range of ambient temperature
-22 .. 104 °F
DOE Pump Energy Index CL
0.89
Rated flow
243 US gpm
Flange standard
ANSI
Diameter
3.72 in
Approvals on motor nameplate
EAC,ECUR,IE3,CURUS,CC122B,CE
Housing
Bronze
Rated head
34.12 ft
Actual impeller diameter
3.72 in
Type
ML90FA, TEFC
Curve tolerance
ISO9906:2012 3B2
Primary shaft seal
BUBE
Connection
4"
Impeller
Stainless steel
Pump housing
Bronze
Standard
ANSI
Country code
Namreg
Motor Curves
