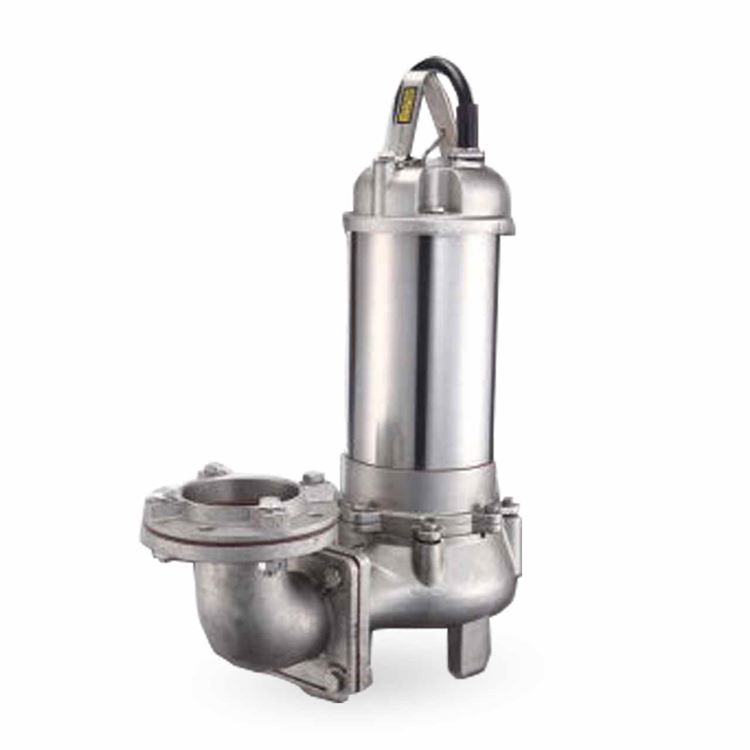

Barmesa 3BSV-503DS Submersible Stainless Vortex Sewage Pump 5.0 HP 230V 3 Phase 33' Cord Manual Stainless Steel IP68 Rating Enclosure 104°F 40°C Sewage Use Dewatering Use Sump Use Effluent Use

Save $514.32 This item ships free!
BarmesaSKU: 3BSV503DS

Price:
Sale price$3,771.68 Regular price$4,286.00
or Call for most up to date lead times. (781) 281-8905

Description

Barmesa Pumps — Miami, Florida · Industrial Pump Specialists
Model 3BSV503DS · 3BSV-DS series · Submersible Sewage Stainless Steel Pumps
5.0 HP3-Phase Power230V3450 RPM33 ft CordSilicon Carbide SealIP68

The Barmesa 3BSV-503DS is a 5.0 HP, 3-Phase, 230V submersible stainless vortex sewage pump. These pumps efficiently handle sewage and wastewater, particularly in corrosive environments where stainless steel construction is essential . Common applications include sewage treatment plants, industrial facilities, and commercial buildings. They play a crucial role in maintai 3" (7.62 cm) NPT flange. Includes flanged discharge.

Horsepower
5.0 HP
Phase
3-Phase
Voltage
230V
Speed
3450 RPM
Discharge
3" (7.62 cm) NPT flange. Includes flange
Max Temperature
104 °F (40 °C) PUMP CASING 316 series st
Solids Handling Design
Open double-vane impeller passes spherical solids — built for sewage, sludge, and wastewater applications
Silicon Carbide Seal
Single mechanical seal in oil-filled chamber — no packing adjustment, no drip, longer service intervals
3-Phase Industrial Motor
Three-phase induction motor with Class F insulation and IP68 protection for continuous industrial submersible duty
Expert Support
Technical help available — call (781) 281-8905 or chat for sizing and compatibility
Why This Product

Submersible Solids Handling — Sewage and Sludge Ready

Designed for pumping sewage, sludge, and water containing solid particles in industrial, municipal, and commercial applications. Open double-vane impeller passes spherical solids up to the rated diameter without clogging.

Open Double-Vane Impeller — Solids Passage

Open, double-vane impeller design maximizes solids passage with minimum clogging risk. Dynamically balanced to ISO G6.3 specification — reduces vibration and extends bearing service life in continuous duty applications.

Silicon Carbide Mechanical Seal — Long Life in Abrasives

Silicon carbide (SiC) seal faces resist abrasive wear from solids-laden fluids. Single mechanical seal in an oil-filled chamber provides reliable sealing with significantly longer service intervals than conventional seals.

Cast Iron Construction — Industrial Grade

Volute, motor housing, and impeller in cast iron ASTM A-48, Class 30 — the industry standard material for submersible sewage pump construction. Provides the strength and corrosion resistance required for continuous submersible operation.

416 Stainless Steel Shaft

416 stainless steel shaft provides corrosion resistance at the seal interface and superior strength over standard mild steel shafts. Resistance to corrosion at the seal face is critical for long-term seal integrity.

Barmesa Pumps Quality

Barmesa Pumps submersible sewage and sludge pumps serve industrial treatment facilities, municipal lift stations, and commercial construction worldwide — backed by a full parts and service network.

Technical Specifications
Model Number 3BSV503DS
Series 3BSV-DS series
Category Submersible Sewage Stainless Steel Pumps
Horsepower 5.0 HP
Phase 3-Phase
Voltage 230V
Speed 3450 RPM
Discharge 3" (7.62 cm) NPT flange. Includes flanged discharge.
Max Liquid Temperature 104 °F (40 °C) PUMP CASING 316 series stainless steel MOTOR COVER 316 series stainless steel
Motor For continuous dry running, operates at 230/460 V, 1 & 3-phase, 3450 RPM, 60 Hz. Class B, IP68 protection, with capacitor integrated in motor.
Impeller Design: 8 vane, semi-open Vortex. Material: 316 series stainless steel
Shaft 316 series stainless steel LIFTING BAIL 316 series stainless steel MAX. SUBMERGE
Mechanical Seal Design: double, mechanical, oil filled chamber. Material: carbon-ceramic upper seal, silicon carbide lower seal, Viton® elastomers, stainless steel sp
Seal Plate 316 series stainless steel
Bearings Ball type, lubricated and sealed for 60,000 hours operation. Designed for radial and axial loads.
Hardware elbow at 316 series stainless steel GASKETS Viton®
Cord Entry Includes 33 feet of special neoprene cable. The cable is sealed preventing from
Key Features
Discharge: 3" (7.62 cm) NPT flange. Includes flanged elbow at discharge.
Spherical solids handling: 1.75" (45 mm)
HP: 5 - 7.5
RPM: 3450
Impeller: 8 vane, semi-open vortex. 316 series stainless steel.
Shaft: 316 series stainless steel
Motor: for continuous dry running, operates at 230/460 V, 1 & 3-phase, 3450 RPM, 60 Hz. Class B, IP6
Optional Equipment
  • 316 stainless steel slide rail coupling MAX. DISCHARGE DISCHARGE MAX. FLOW CORD SPH SLD MODEL HP V PH AMPS DIAM. MAX. (m) (GPM) (ft) HNDLG 3BSV503DS 5 230 3 15 3" 27 275 33 1.75" 3BSV504DS 5 460 3 8 3" 27 275 33 1.75" 3BSV753DS 7.5 230 3 21 3" 32 290.5 33 1.75" 3BSV754DS 7.5 460 3 10.5 3" 32 290.5 33 1.75" - Three-phase pump, VFD compatible. Reliable operation within 30 ~ 60 Hz. MODEL A A1 A2 A3 B B1 B2 D D1 D2 D3 D4 D5 3BSV-503DS 18.4 3.9 10.8 7 8.3 3.7 4.5 7.2 5.6 6.1 5.3 5.5 5.9 3BSV-504DS 3BSV-753DS 18.4 3.9 10.8 7 8.3 3.7 4.5 7.2 5.6 6.1 5.3 5.5 5.9 3BSV-754DS MODEL D6 DN E F G P P1 P2 H H1 H2 H3 WT 3BSV-503DS 5.9 3 0.6 0.6 0.6 90° 45° 90° 24.9 18.4 6.3 8.9 105.6 3BSV-504DS 3BSV-753DS 5.9 3 0.6 0.6 0.6 90° 45° 90° 26.5 20 6.3 8.9 118.4 3BSV-754DS - Dimensions in inches. * WT = Weight in pounds, without cable.
⚠ Important Safety Notices
  • Do not use the pump to handle explosive or corrosive liquids.
  • This pump is not approved for use in swimming pools, recreational facilities, or any application where human
  • Do not operate the pump dry for extended periods; this may damage the motor or the seal.
  • Testing is performed with water specific gravity of 1.0 @ 68 °F (20 °C); other fluids may vary
Important Notices
Fluid compatibility For use with clean water and non-explosive liquids compatible with pump materials. Never use with explosive, flammable, or corrosive fluids unless specifically rated.
Swimming pools Not approved for use in swimming pools, recreational installations, or any application where human contact is common.
Temperature Do not exceed maximum liquid temperature rating (104 °F (40 °C) PUMP CASING 316 series stainless steel MOTOR COVER 316 series stainless steel). Exceeding limits causes seal and motor damage.
Electrical Requires properly sized, grounded branch circuit with correctly rated motor starter and thermal overload protection.
Available Documentation
✓ Data Sheet — 3BSV-DS series
✓ User Manual — 3BSV-DS series
Need the data sheet or user manual? Contact PumpStop and we'll send it over.
Before You OrderConfirm HP, voltage, and phase are correct for your installation. All models in the 3BSV-DS series share casing dimensions and spare parts. For sizing guidance, chat or call (781) 281-8905.

Motor Curves
