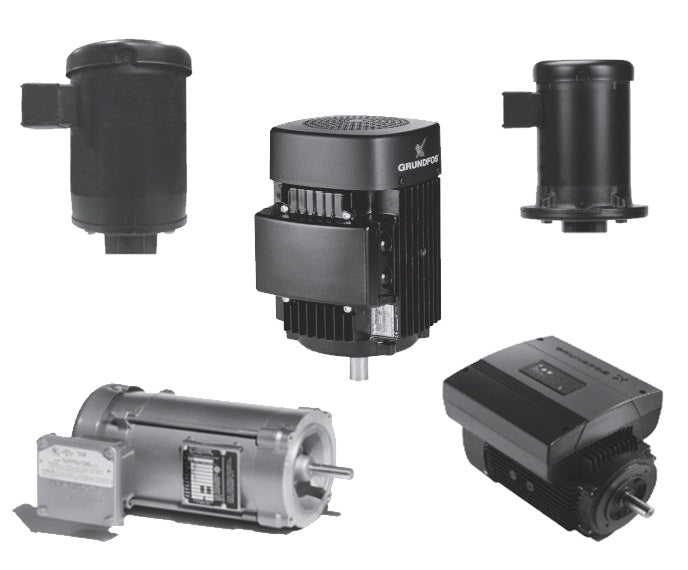

Grundfos Pumps 85900703 ML71BB 230/460-2 1HP 56C (sellable pn 91134903)

GrundfosSKU: 85900703

Price:
Sale price$528.05
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
85900703 · Grundfos Accessory / Spare Part / Control
ACC1HP208-230YY/460YV3.0-Phase60 HzNEMA Premium / IE3 60HzIP55 Dust/Jetting

The Grundfos 85900703 is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Rated 208-230YY/460YV, 3.0-Phase, 60 Hz.

Power
1HP
Voltage
208-230YY/460YV
Phase
3.0-Phase
Frequency
60 Hz
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
NEMA Premium / IE3 60Hz motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — 85900703
Series: ACC
Technical Specifications
Model Number 85900703
Product Series ACC
Series Description Grundfos Accessory / Spare Part / Control
Power 1HP
Voltage 208-230YY/460YV
Phase 3.0-Phase
Frequency 60 Hz
Motor Speed 3430-3460rpm
Full Load Current 3,25-3,35/1,68A
Motor Type 71BB
Motor Efficiency Class NEMA Premium / IE3 60Hz
Motor Efficiency 77.0-77.0%
Insulation Class F
Protection Class (IP) IP55 Dust/Jetting
Max Ambient Temperature 140°F
Min Ambient Temperature -22°F
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 208-230YY/460YV, 3.0-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature per nameplate or max ambient temperature 140°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — 85900703
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5700397593684
