Grundfos 98924642 - 77S100-17 | Vertical Installation | Vertical | Horizontal | Submersible

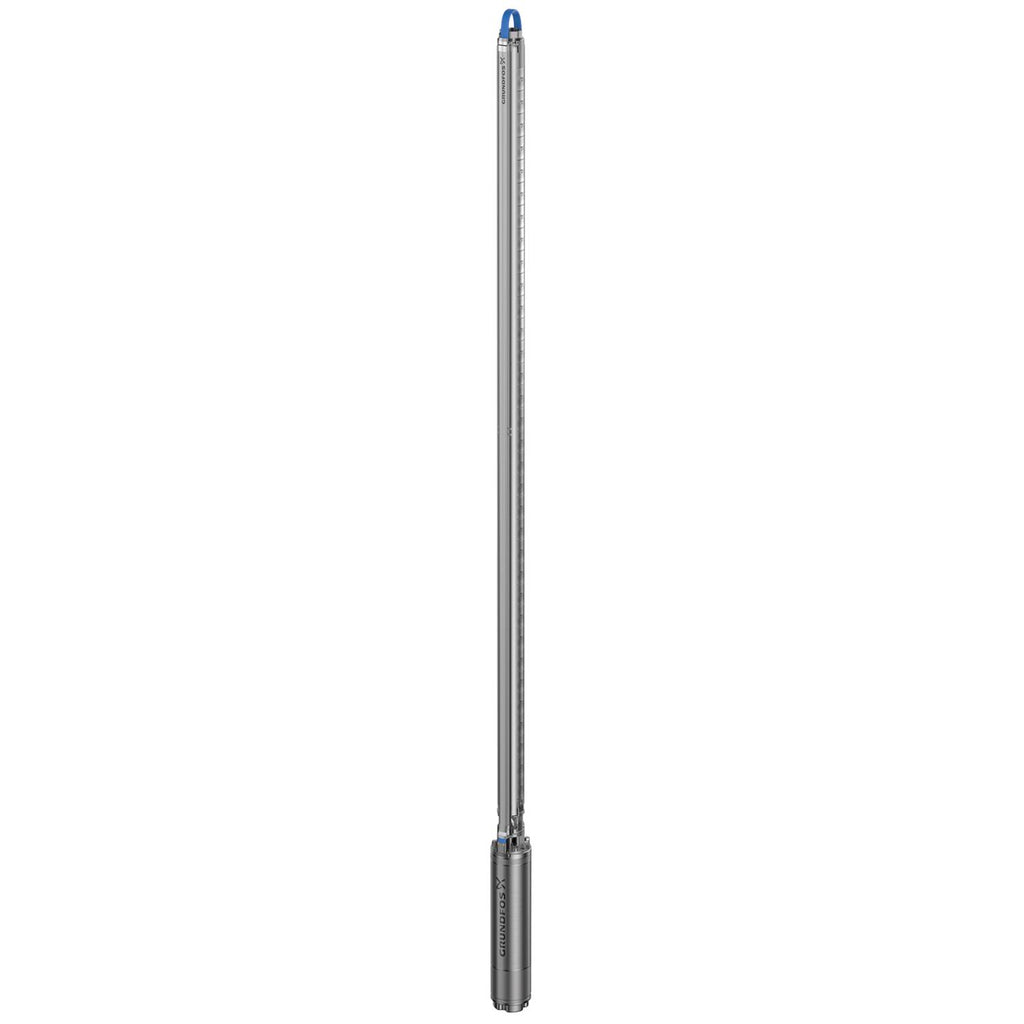

GrundfosSKU: 98924642

Price:
Sale price$10,743.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
77S100-17 · Grundfos Accessory / Spare Part / Control
ACC10HP440-460-480V3.0-Phase60 HzIP68Stainless steel

The Grundfos 98924642 (77S100-17) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Nominal performance: 73.5US gpm at 341.2ft. Rated 440-460-480V, 3.0-Phase, 60 Hz. Applications include Residential groundwater intake, Residential water pressure boosting, Municipal wells and more.

Power
10HP
Voltage
440-460-480V
Phase
3.0-Phase
Max Flow
73.5US gpm
Max Head
341.2ft
Max Pressure
870.23psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — 77S100-17
Series: ACC
Model Code: 77S100-17
Impeller Material: Stainless steel
Technical Specifications
Model Number 98924642
Product Series ACC
Series Description Grundfos Accessory / Spare Part / Control
Power 10HP
Voltage 440-460-480V
Phase 3.0-Phase
Frequency 60 Hz
Motor Speed 3450-3470-3480rpm
Pump Speed 3450rpm
Full Load Current 17.4-16.8-16.6A
Motor Type MS6000
Insulation Class F
Protection Class (IP) IP68
Nominal Flow 73.5US gpm
Nominal Head 341.2ft
Max Operating Pressure 870.23psi
Max Fluid Temperature 104°F
Nominal Pipe Bore 2inch
Pipe Standard NPT(F)
Impeller Material Stainless steel
Approvals / Certifications CULDWUS, CCSAUS
Applications
Residential groundwater intake
Residential water pressure boosting
Municipal wells
Municipal solar solutions
Rotor & spray irrigation
Ground water transfer
Livestock & Wildlife Watering
Water Treatment Fertigation
Chemigation & Dosing
Pivot & Lateral Irrigation
Frost protection
Solar boosting and water supply solutions
Controls and digital groundwater management
Solar controls and digital water management
Municipal solar solutions
Agriculture solar solutions
Livestock watering with solar solutions
Community solar solutions
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 440-460-480V, 3.0-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 104°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — 77S100-17
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
Approvals CULDWUS,CCSAUS
Approvals for drinking water PROP65
Built-in motor protection NONE
Connection 2 inch
Curve tolerance ISO9906:2012 3B
Diameter 5.71 in
DOE Pump Energy Index CL 0.91
Enclosure class (IEC 34-5) IP68
Frequency 60 Hz
Gross weight 209.0 lb
Impeller Stainless steel
Impellers NONE
Insulation F
Insulation class (IEC 85) F
IP Class IP68
KVA code G
Liquid max temp 104°F
Liquid temperature range 5 .. 104 °F
Maximum operating pressure 870.23 psi
Maximum outlet pressure 220.46 psi
Minimum borehole diameter 5.71 in
Model A
Motor Stainless steel
Motor diameter 6 inch
Motor flange design NEMA
Motor type MS6000
Motor version T40
n rpm F
Net weight 131.0 lb
Number of reduced-diameter impellers NONE
P2 kW 10 HP
Phase 3
Power (P2) required by pump 10 HP
Power factor 1 0.84-0.83-0.80
Pump 10 HP
Pump speed on which pump data are based 3450 rpm
Rated current 17.4-16.8-16.6 A
Rated flow 73.5 US gpm
Rated head 341.2 ft
Rated power - P2 10 HP
Rated speed 3450-3470-3480 rpm
Rated voltage 3 x 440-460-480 V
Return valve YES
Service factor 1.15
Shaft Product name:77S100-17
Shaft seal for motor SIC/SICNBR
Size of connection 2 inch
Stages 17
Start. 1 method direct-on-line
Starting current 410-440-470 %
Thermal protec external
Type MS6000
Type of connection NPT(F)
Valve YES
Version T40
Windings Enamelled

Motor Curves

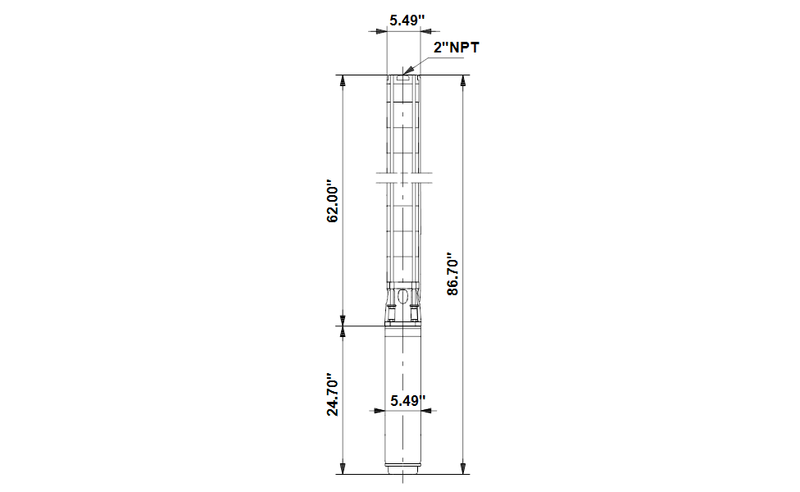

Dimensional Drawing

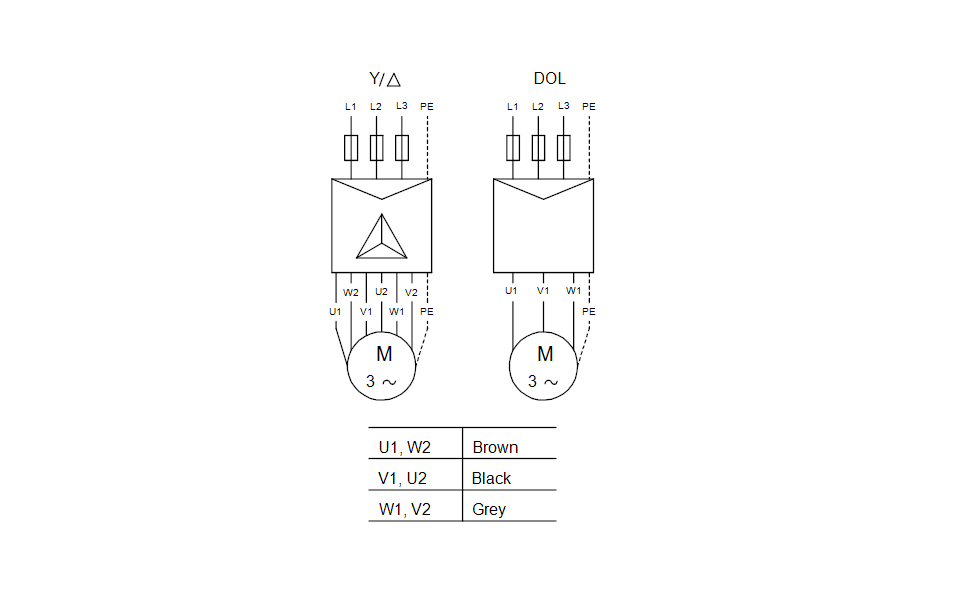

DWiring Diagram
