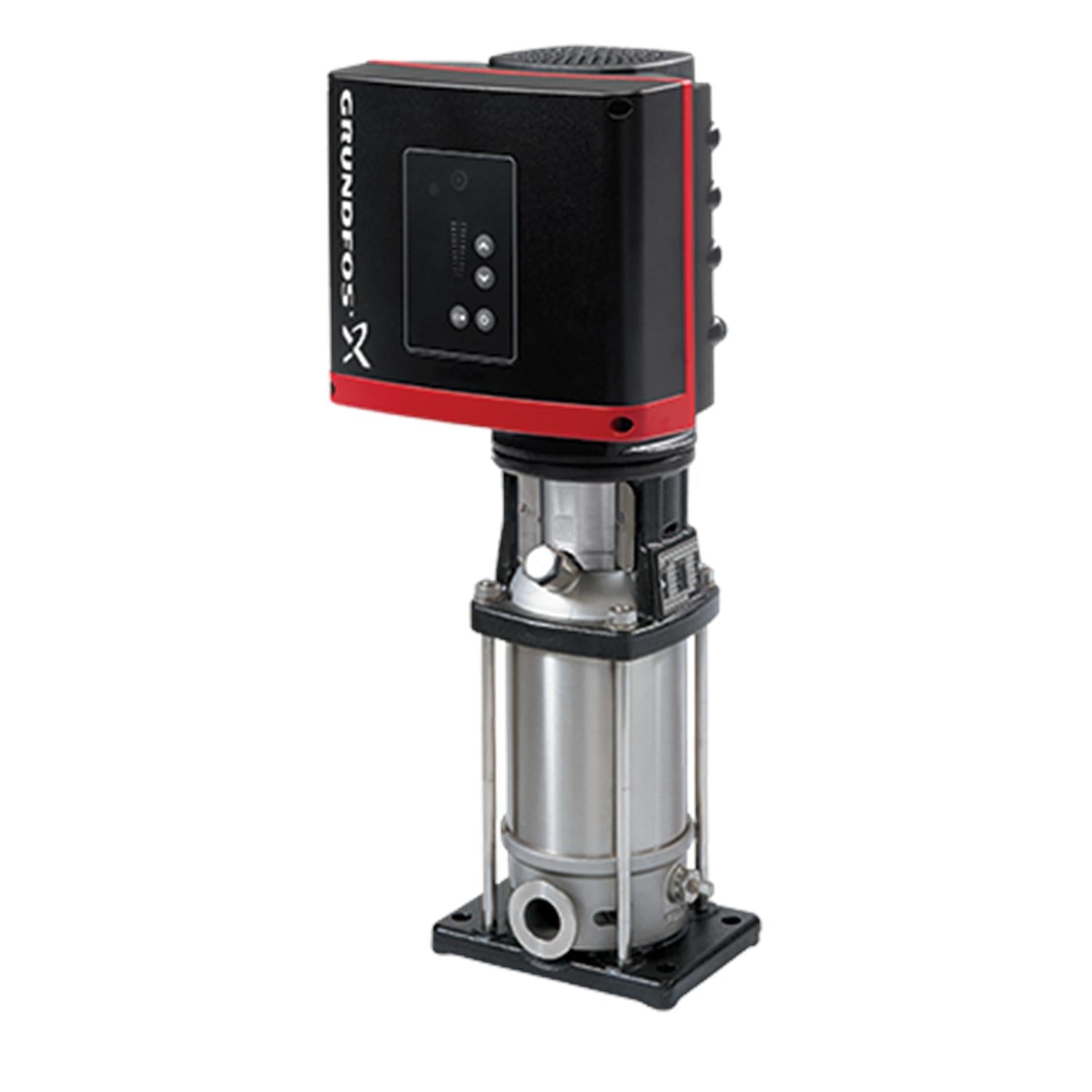

Grundfos 98424484 - CRF 15-1 A-B-A-E-HQQE | SelfPriming | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 98424484

Price:
Sale price$7,593.00
Build to order – stocked components, typically available in 14 business days
or Call for most up to date lead times. (781) 281-8905

Description

CRF 15-1 A-B-A-E-HQQE CRIF/CRNF is a vertical, centrifugal multi-stage pump. This inline (non-self-priming) pump is suitable for in-pipe systems and mounting on a foundation. The pump equips with the MGF motor which can be run on both DC and AC. The motor electronics already included all the necessary motor protection functions; therefore, no extra motor protection device is needed. The Maximum Power Point Tracking (MPPT) software in the motor allows it to operate efficiently with solar panel. The motor has P1 1250W and maximum speed 3350 RPM. External sensor can be connected in order to control the pump operation.

Approvals CE
Approvals for drinking water NSF/ANSI 61
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 98425074
Connect code B
Connection "2" NPT" inch
Control panel HMI200 - Standard
Curve tolerance ISO9906:2012 3B
DOE Pump Energy Index VL 0.45
Dual frequency YES
Enclosure class (IEC 34-5) IP55
Flange size for motor 56C
Function Module FM300 - Advanced
Gross weight 113.0 lb
Housing Cast iron
Impeller Stainless steel
Impellers 1
Insulation F
Insulation class (IEC 85) F
IP Class IP55
Liquid max temp 248°F
Liquid temperature range -4 .. 248 °F
Material code A
Maximum ambient temperature 122 °F
Maximum operating pressure 145.04 psi
Model A
Motor 56C
Motor type 90C
n rpm F
Net weight 98.7 lb
P2 kW 2 HP
Phase 1
Power factor 1 0.99
Power input - P1 1.73 kW
Pump housing Cast iron
Pump version A
Rated current 8.9 A
Rated flow 79.3 US gpm
Rated head 50.53 ft
Rated power - P2 2 HP
Rated speed 500-3600 rpm
Rated voltage Product name:CRF 15-1 A-B-A-E-HQQE
Rated voltage ac 1 x 90-240 V
Rated voltage dc 30 - 300 V
Rubber E
Sales region Namreg
Shaft Product name:CRF 15-1 A-B-A-E-HQQE
Shaft seal HQQE
Size of connection "2" NPT" inch
Stages 2
Type 90C
Type of connection Oval / NPT(F)
Version A

Motor Curves
