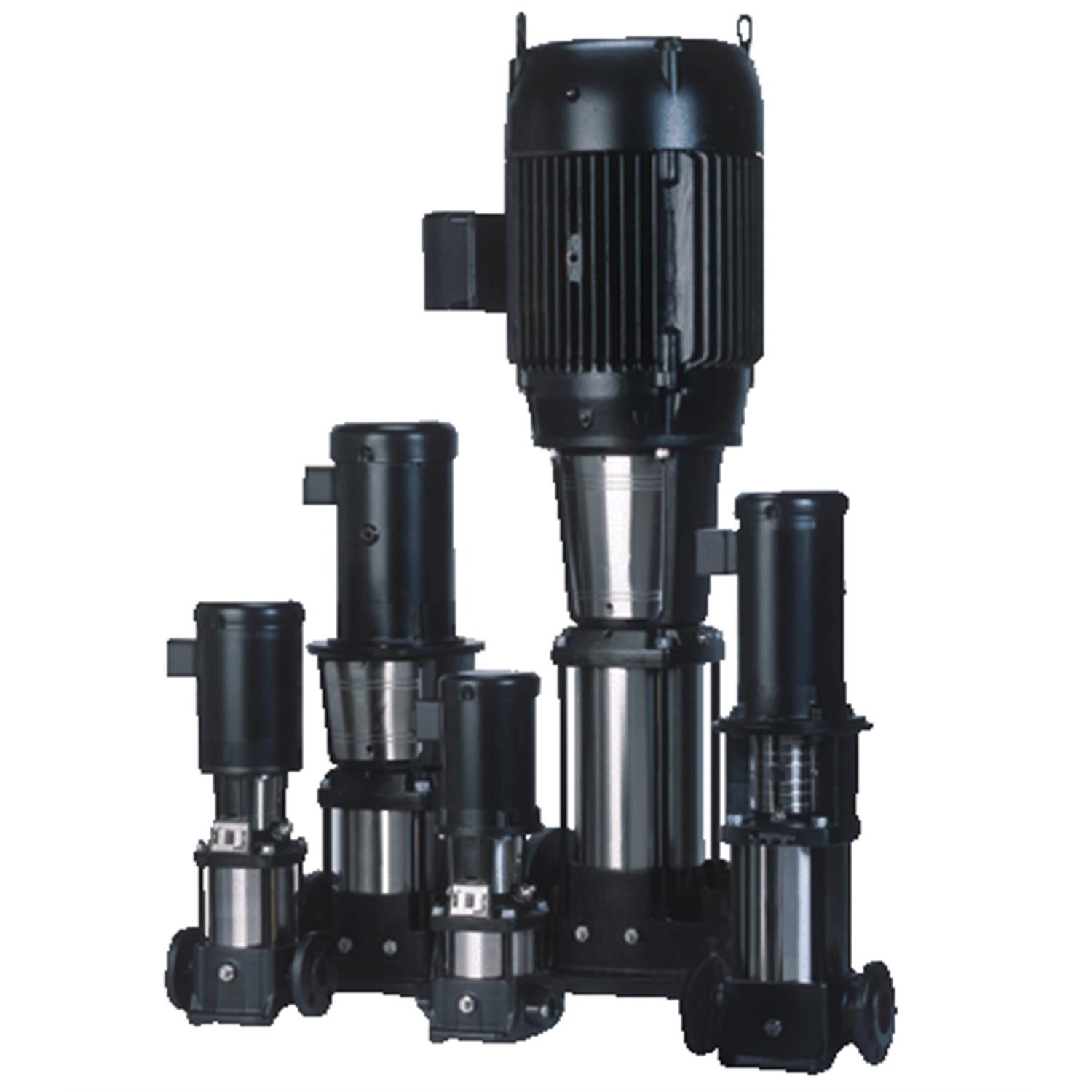

Grundfos 99968294 - CR 10-8 K-GJ-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $3,549.40
GRUNDFOSSKU: 99968294

Price:
Sale price$4,743.60 Regular price$8,293.00
Typically In Stock – standard inventory item,typically available in 1 business days
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99968294 - CR 10-8 K-GJ-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered to deliver exceptional efficiency and reliability, making it an ideal choice for high-pressure systems.

With its advanced design, the CR 10-8 K-GJ-A-E-HQQE model is part of the CR series, known for its low NPSH capabilities and versatility in various settings. Whether you need a pump for water supply, heating, or cooling applications, this model is built to meet your demands.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

Actual impeller diameter 3.66 in
Approvals CURUS
Bearing 1 SIC
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code GJ
Connection PN 25
Cooling IC 411
Curve tolerance ISO9906:2012 3B
Diameter 3.66 in
DOE Pump Energy Index CL 0.94
Enclosure class (IEC 34-5) IP55
Flange rating inlet 300 lb
Flange size for motor 213TC
Frequency 60 Hz
Frequency converter NONE
Full load SF current 19.9/9.97 A
Gross weight 265.0 lb
IE Eff. Class IE3 / NEMA Premium
IE efficiency IE3 89,5%
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 0
Insulation F
Insulation class (IEC 85) F
IP Class IP55
Liquid max temp 248°F
Liquid temperature range -4 .. 248 °F
Low NPSH Y
Material code A
Maximum ambient temperature 104 °F
Maximum head 357.6 ft
Maximum operating pressure 232.06 psi
Model A
Motor 213TC
Motor efficiency at 1/2 load 0.875
Motor efficiency at 3/4 load 0.885
Motor efficiency at full load 1 0.895
Motor standard NEMA
Motor type WEG
n rpm F
Net weight 245.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 kW 7.5 HP
Phase 3
Power (P2) required by pump 7.5 HP
Power factor 1 0.89
Pressure rating for connection PN 25
Pump 7.5 HP
Pump version K
Rated current 17.3/8.67 A
Rated flow 53.3 US gpm
Rated head 295.3 ft
Rated power - P2 7.5 HP
Rated speed 3530 rpm
Rated voltage 3 x 230/460 V
Rubber E
Service factor 1.15
Shaft Product name:CR 10-8 K-GJ-A-E-HQQE
Shaft seal HQQE
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 8
Standard NEMA
Starting current 7.6
Type WEG
Type of connection ANSI / JIS
Version K

Motor Curves

Dimensional Drawing

DWiring Diagram
