Barmesa SRCH-2 Slide Rail Coupling 2.0" X 2.0" Stainless Steel Cast Iron

Save $137.16 This item ships free!
BarmesaSKU: SRCH200

Price:
Sale price$1,005.84 Regular price$1,143.00
or Call for most up to date lead times. (781) 281-8905

Description

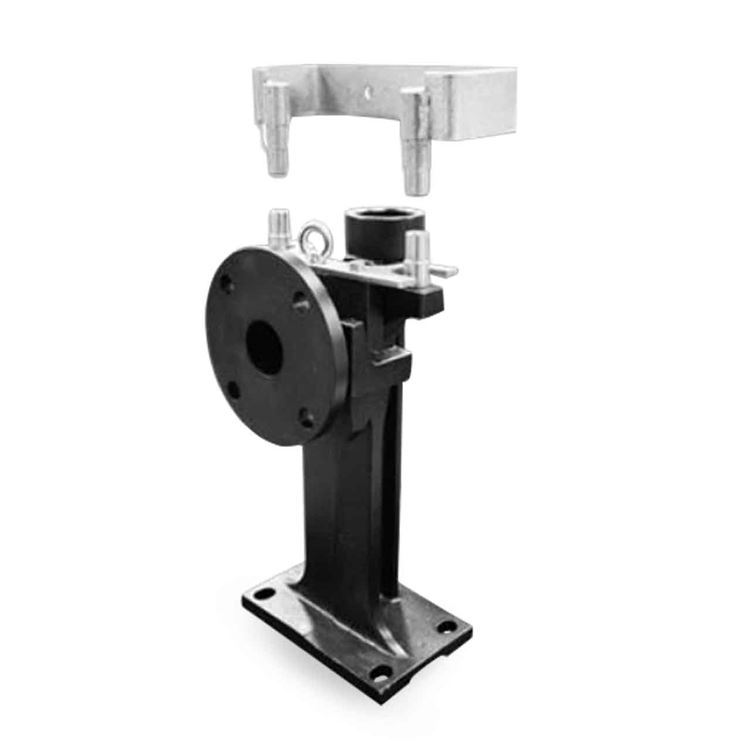

The Barmesa SRCH-2 slide rail coupling 2.0" x 2.0" stainless steel cast iron.

These couplings are designed for wet wells, tanks, or lift stations where it is necessary to remove a pump from service and reinstall the pump without maintenance personnel entering the pit to unbolt the pumps flanges.

Slide rail guide system allows pump retrieval without confined space entry or pipe disconnection.

Slide Rail System
Remove pump without draining or disassembling discharge piping
Premium Motor
High-efficiency motor with built-in thermal overload protection
Manufacturer Documentation
Specs from official Barmesa data sheets — data sheet & user manual linked below

Technical Specifications

Model Number SRCH-2
Frequency 60 Hz
Hardware 304 series stainless steel.
Paint Air dry enamel, water based. inch [mm] 3.4"(87) )534("1.71 23.6"(600) )5.971("7 0.9"(24) 3.9"(101.6)

Key Features

  • Stationary elbow: cast iron, ASTM A-48, Class 30.
  • Guide rail cap: 304 series stainless steel

Available Models in This Series

MODEL PART No.
SRCH200 -
23.6"x19.6"(600x500) Min. Size
Ø1.25"(33)
2-Ø0.3"(10)
4"(102)
(19.1)
)05("9.1
"9.1Ø )05(
7"(178)
(120.7)
8,9,10
Ground bolts:4-M12X6.2"(160)
1 1 UPPER GUIDE BRACKET SST
2 2 DOWEL PIN SST
3 3 SCREW HXHD M8 x 16 SST
4 1 LOWER GUIDE PLATE SST
)005("6.91 5 1 O-RING BUNA
6 1 PULL OUT FLANGE IRON
7 1 BASE ELBOW IRON
8 4 NUT M16 SST
9 4 WASHER LOCK 16 SST
10 4 ANCHOR BOLT M16 x 220 SST
2" 1¼" w/ upper guide bracket 46.3
