Description

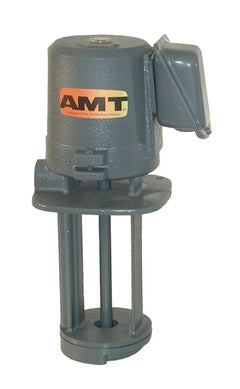

The AMT 5380-95 is a 1/8 HP pumps immersion-type coolant pump cast iron. Delivers up to 56 GPM. coolant reservoir to prevent machining chips from entering the pump and
Designed for Machine Tool Coolant Circulation
Purpose-built for continuous coolant circulation in CNC machine tools, lathes, mills, and grinding machines. Submersible or pedestal-mount configurations designed for coolant sump installation.
Coolant-Compatible Materials
Constructed from materials compatible with water-soluble cutting fluids, synthetic coolants, and semi-synthetic coolants. Not designed for petroleum-based cutting oils — verify compatibility before use.
Continuous-Duty Motor
Motor is rated for continuous operation — the pump runs whenever the machine runs. Designed for the duty cycle of a production machine tool, not a general-purpose pump with intermittent operation.
Compact Sump-Mount Design
Compact design fits within standard machine tool coolant sumps. The pump mounts directly in the sump without additional support structure — minimizing footprint and simplifying installation.
Self-Priming from Shallow Sumps
Low net positive suction head requirements allow reliable priming even when coolant levels are low. Important for machines with small sumps where coolant level fluctuates during operation.
TEFC / Coolant-Sealed Motor
Sealed motor prevents coolant and mist intrusion into windings — the leading cause of coolant pump motor failure in machine tool applications where coolant splashing is unavoidable.
| Model Number | 5380-95 |
| Series | Immersion/Suction Coolant Pumps |
| Category | Coolant Pumps |
| Horsepower | 1/8 HP |
| Voltage | 115V |
| List Price | $3 |
| Max Flow Rate | 56 GPM |
| Max Head | 60 Ft. |
| Max Temperature | 180° F |
| Max Flow Rate | 56 GPM |
| Max Head | 60 Ft. |
| Max Fluid Temperature | 180° F |
| Model | HP | Type | Frame | Voltage | Phase | Casing | Seal | Weight | List Price |
|---|---|---|---|---|---|---|---|---|---|
| 5380-95 | 1/8 HP | 115 | 3 | ||||||
| 5381-95 | 1/8 HP | ||||||||
| 5390-95 | 1/4 HP | 115 | 6 | ||||||
| 5391-95 | 1/4 HP | 230 | 6 | ||||||
| 5400-95 | 1/2 HP | 230 | 9 | ||||||
| 5410-95 | 3/4 HP | 230 | 1 | ||||||
| 5411-95 | 1 HP |
★ Highlighted = this product (5380-95). All models share the same casing and spare parts. QSP = ships within 24 hours.
| Fluid compatibility | For use with non-flammable, non-abrasive liquids compatible with pump component materials. Verify chemical compatibility before use. |
| Seal compatibility | Always verify seal material compatibility with your specific fluid and chemical conditions. |
| Electrical | Requires a properly sized, grounded branch circuit. Do not use an extension cord. Protect motor with a properly sized thermal overload relay. |
| Temperature limit | Maximum fluid temperature 180° F. Exceeding this limit will damage seals and motor insulation. |
