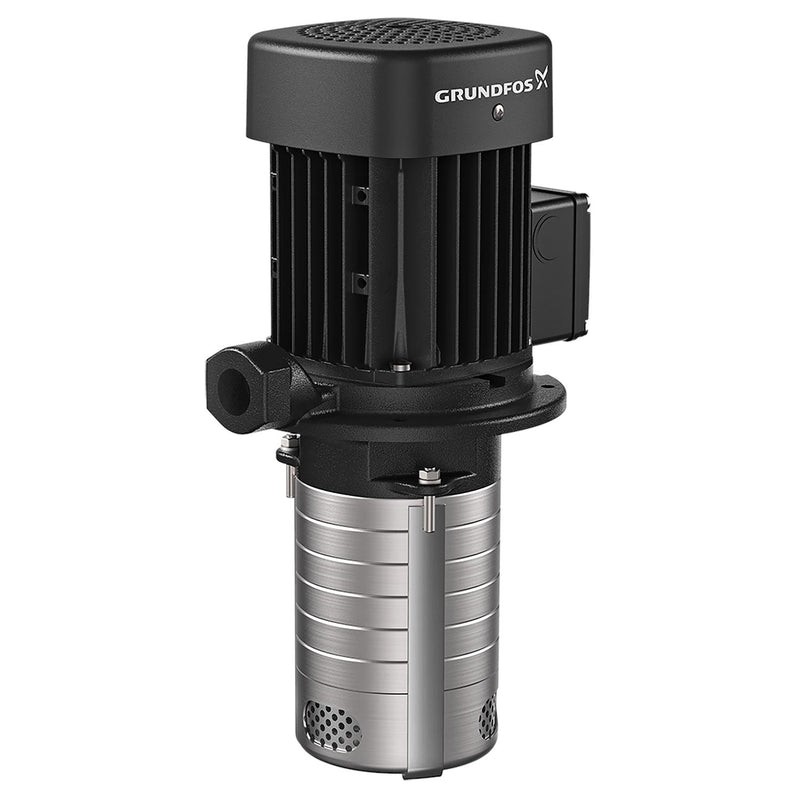

Grundfos 98993324 - MTC 4-4/4 A-WB-A-AQQV

Save $1,005.80
GRUNDFOSSKU: 98993324

Price:
Sale price$1,406.20 Regular price$2,412.00
Typically In Stock – standard inventory item, typically available in 1 business days
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98993324 - MTC 4-4/4 A-WB-A-AQQV is a high-performance pump designed for various industrial applications. Manufactured by Grundfos, a leader in pump technology, this model is ideal for those seeking reliable and efficient pumping solutions.

This pump falls under the category of Grundfos Controls & Accessories and is suitable for multi-stage and single-stage applications. Its vertical multistage design ensures optimal performance in demanding environments, making it a versatile choice for both centrifugal and immersed pumping needs.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Grundfos 98993324. If you encounter any difficulties in identifying the correct item, our knowledgeable team is here to help.

Approvals CE,cURus/cCSAus
Approvals for motor CE,CC
Built-in motor protection NONE
Chambers 4
Code for shaft seal AQQV
Connect code WB
Connection NPT(F)
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP54
Frame size 80BA
Frequency 60 Hz
Frequency converter NONE
Gross weight 33.7 lb
Housing Cast iron
I MAX 5,4-5,15/2,6A
IE Eff. Class IE3 / NEMA Premium
IE efficiency Product name:MTC 4-4/4 A-WB-A-AQQV
IE Efficiency class IE3 / NEMA Premium
Immersion depth 7.83 in
Impeller Stainless steel
Impellers 0
Insulation F
Insulation class (IEC 85) F
IP Class IP54
Liquid max temp 194°F
Liquid temperature range 14 .. 194 °F
Material code A
Maximum ambient temperature 140 °F
Maximum current consumption 5,4-5,15/2,6 A
Maximum operating pressure 145.04 psi
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor CE,CC
Motor standard NEMA
Multi plug N
n rpm F
Net weight 31.1 lb
Number of reduced-diameter impellers 0
P2 kW 1.48 HP
Phase 3
Pump housing Cast iron
Pump version A
Pumped liquid Emulsion
Rated current 4,70-4,60/2,30 A
Rated flow 26.4 US gpm
Rated head 117.1 ft
Rated power - P2 1.48 HP
Rated speed 3465 rpm
Rated voltage 3 x 208-230YY/460Y V
Selected liquid temperature 68 °F
Service factor 1.15
Shaft Product name:MTC 4-4/4 A-WB-A-AQQV
Shaft seal AQQV
Standard NEMA
Starting current 720-800 %
Suitable for 5/6 Hz Y
Terminal box position 6
Type of connection NPT(F)
Version A

Motor Curves

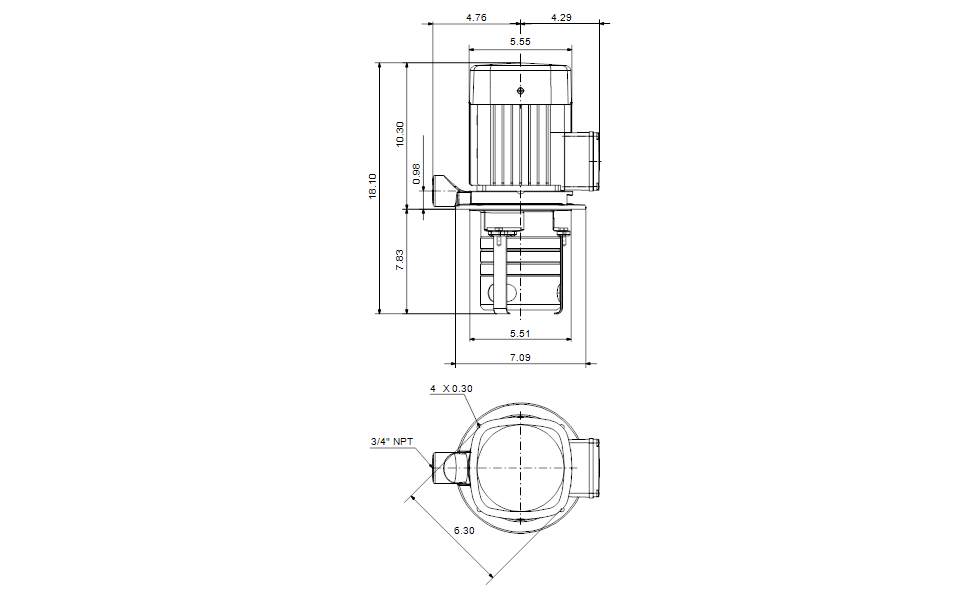

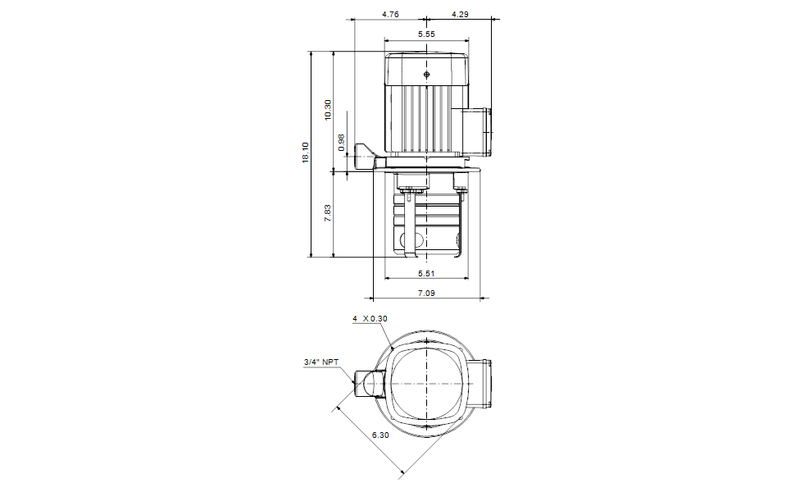

Dimensional Drawing

DWiring Diagram
