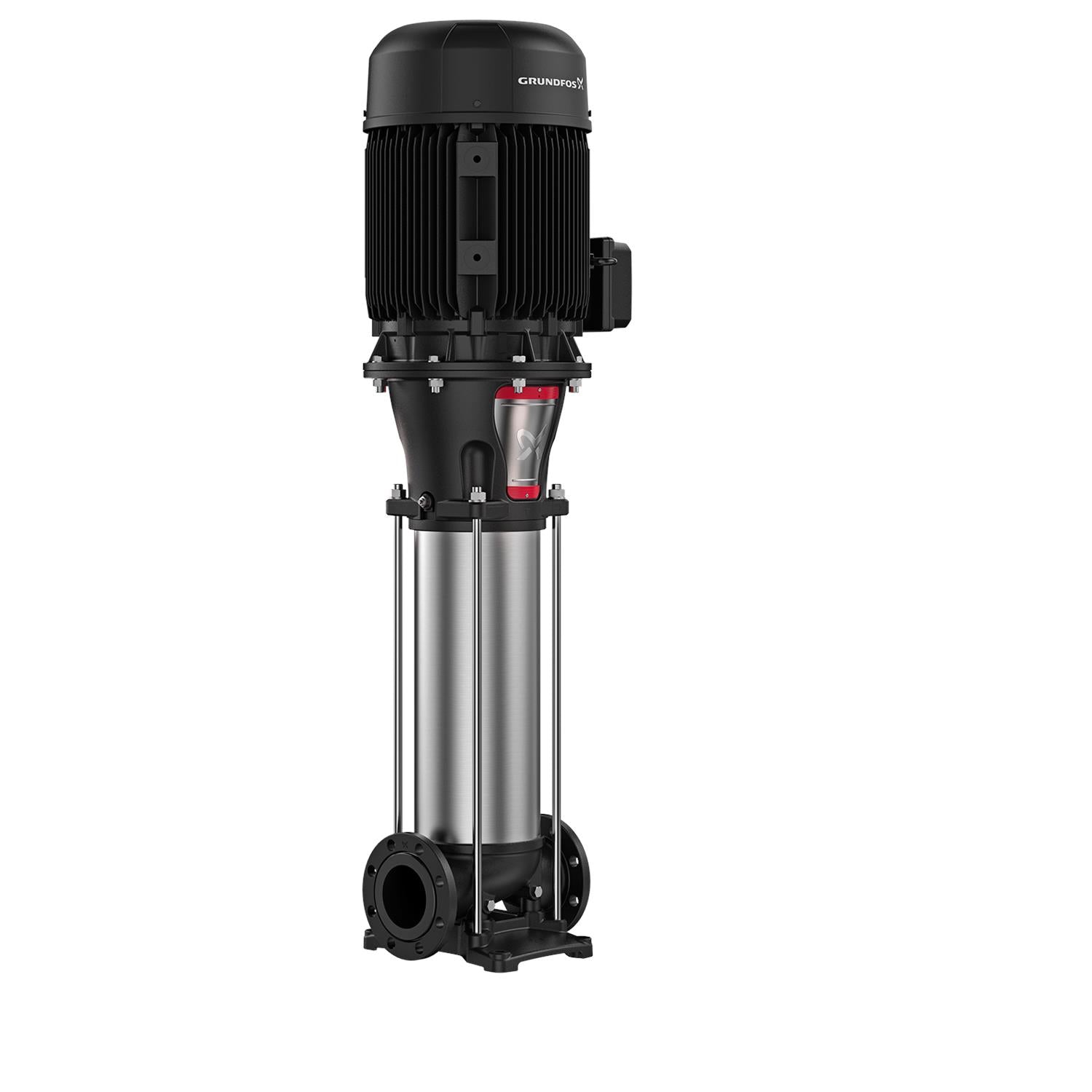

Grundfos 99918393 - CR 95-3 A-G-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

GrundfosSKU: 99918393

Price:
Sale price$30,733.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
Grundfos 99918393 - CR 95-3 A-G-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline · Genuine Grundfos Part
CR SeriesGenuine Grundfos PartSpare Part / Accessory

The Grundfos 99918393 is a genuine Grundfos spare part, repair kit, or accessory compatible with the CR series (Inline multi stage pumps). Confirm compatibility with your specific pump model before ordering.

Genuine Grundfos
OEM part — engineered and tested to Grundfos specifications
Authorized Distributor
Full manufacturer warranty and traceability on all genuine parts
Compatibility
Verify part number against your pump model and serial number before ordering
Expert Support
Parts identification help available — call (781) 281-8905 or chat
Compatible Pump Series — CR
Vertical, multistage centrifugal pump with suction and discharge ports on the same level. The pump head and base are in cast iron — all wetted parts in stainless steel. Used in water supply, pressure boosting, industrial liquid transfer, and HVAC applications.
Inline multi stage pumps
Part Details
Part Number 99918393
Compatible Series Grundfos CR
Product Category Inline multi stage pumps
Part Type Genuine Grundfos OEM spare part / accessory
Important Notices
Compatibility Always verify this part number against your pump model number and serial number before ordering. Grundfos CR pumps are available in multiple configurations — not all parts are interchangeable between variants.
Genuine parts only Using non-genuine parts can affect pump performance, invalidate warranty, and cause premature failure. PumpStop supplies genuine Grundfos OEM parts only.
Installation Refer to the Grundfos Service Manual for your specific pump model for correct installation and torque specifications. Contact PumpStop for documentation.
Documentation
✓ Service Manual — CR Series
✓ Spare Parts List — CR Series
✓ Installation and Operating Manual (IOM)
Need the service manual or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm this part number is correct for your specific pump model and serial number. For parts identification assistance, chat or call (781) 281-8905.
EAN 5715114132657
Applications Industrial applications
Actual impeller diameter 6.07 in
Approvals for drinking water NSF/ANSI 61,NSF/ANSI 372
Bearing 1 WC/WC
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection ANSI
Connection 2 150 lb
Cooling IC 411
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 6.07 in
DOE Pump Energy Index CL 0.93
Enclosure class (IEC 34-5) IP55
Eta 1/1 0.93
Flange size for motor 326TSC
Frequency 60 HZ
Frequency converter NONE
Full load SF current 140/70.1 A
Gross weight 1120.0 lb
IE Eff. Class IE3 / NEMA Premium
IE efficiency IE3 93%
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 3
Insulation F
Insulation class (IEC 85) F
Liquid max temp 120°C
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material certified according to European standards
Material code A
Material Pricing Group 33
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 439.7 ft
Maximum operating pressure 232.06 psi
Maximum permissible operating pressure 16bar
Model A
Motor 326TSC
Motor efficiency at 1/2 load 0.93
Motor efficiency at 3/4 load 0.93
Motor efficiency at full load 1 0.93
Motor protec NONE
Motor standard NEMA
Motor type WEG
n rpm 3550rpm
Net weight 860.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 HP 50 HP
P2 kW 37kW
Phase 3
Power (P2) required by pump 50 HP
Power factor 1 0.89
Pressure rating 150 lb
Pressure rating for connection 150 lb
Product family CR 95
Pump 50 HP
Pump housing Ductile cast iron
Pump inlet 4
Pump outlet 4
Pump version A
Pumped liquid Water
Rated current 112/56.1 A
Rated flow 500 US gpm
Rated flow 2 500 US gpm
Rated head 325.1 ft
Rated head 2 325.1 ft
Rated power - P2 50 HP
Rated speed 3550 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.25
Shaft seal HQQE
Stages 3
Standard NEMA
Starting current 6.2
Support bearing Graflon
Thrust handling device N
Type WEG
Type of connection ANSI
Version A

Motor Curves

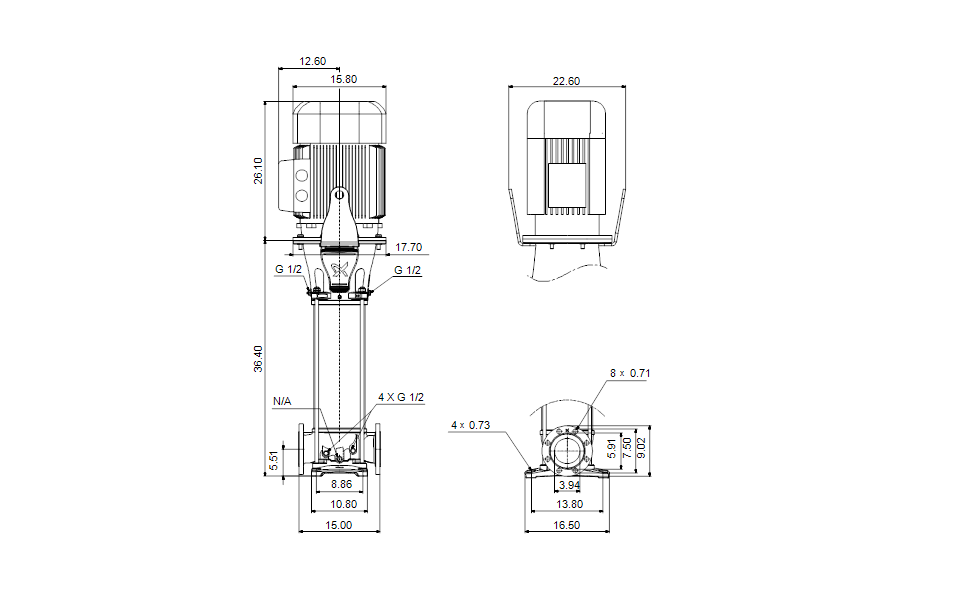

Dimensional Drawing

DWiring Diagram
