Grundfos 99616711 - CUE 3X380-500V IP20 2,2KW | Pump Controller | Frequency Converter | Wall Mounted

GrundfosSKU: 99616711

Price:
Sale price$1,688.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
99616711 · Grundfos Accessory / Spare Part / Control
ACC3HP380-440/441-500V3.0-Phase50, 60 HzIP20

The Grundfos 99616711 (CUE 3X380-500V IP20 2,2KW) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Rated 380-440/441-500V, 3.0-Phase, 50, 60 Hz. Applications include Wash and clean, Industrial heating, Cooling and more.

Power
3HP
Voltage
380-440/441-500V
Phase
3.0-Phase
Frequency
50, 60 Hz
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — 99616711
Series: ACC
Technical Specifications
Model Number 99616711
Product Series ACC
Series Description Grundfos Accessory / Spare Part / Control
Power 3HP
Voltage 380-440/441-500V
Phase 3.0-Phase
Frequency 50, 60 Hz
Full Load Current 5,6-4,8A
Motor Protection YES
Protection Class (IP) IP20
Max Ambient Temperature 122°F
Min Ambient Temperature 32°F
Approvals / Certifications CE, CULUS, C-TICK
Applications
Wash and clean
Industrial heating
Cooling
Industrial water supply & transfer
Industrial wastewater treatment & reuse
Municipal surface water
Drinking water treatment
Municipal water transportation
Municipal wastewater transport
Municipal wastewater treatment
Rotor & spray irrigation
Ground water transfer
Livestock & Wildlife Watering
Water Treatment Fertigation
Chemigation & Dosing
Pivot & Lateral Irrigation
Frost protection
Solar boosting and water supply solutions
Controls and digital groundwater management
Solar controls and digital water management
Municipal solar solutions
Agriculture solar solutions
Livestock watering with solar solutions
Community solar solutions
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 380-440/441-500V, 3.0-Phase, 50, 60 Hz.
Temperature limits Do not exceed max fluid temperature per nameplate or max ambient temperature 122°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — 99616711
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
Approvals on nameplate CE, CULUS, C-TICK
Built-in motor protection YES
Enclosure class (IEC 34-5) IP20
Frequency 50 / 60 Hz
Gross weight 11.2 lb
I MAX 5.6A
IP Class IP20
Length 150/300 m
Maximum current consumption 5.6 A
Minimum ambient temperature 32°F
Mounted on Wall
n rpm YES
Net weight 10.8 lb
P2 kW 3 HP
Phase 3
Range of ambient temperature 32 .. 122 °F
Rated current 5.6-4.8 A
Rated power - P2 3 HP
Rated voltage 3 x 380-440/441-500 V
Relative humidity 5-95 %
Thermal protec external
Danish VVS No. 382995022

Motor Curves

Dimensional Drawing

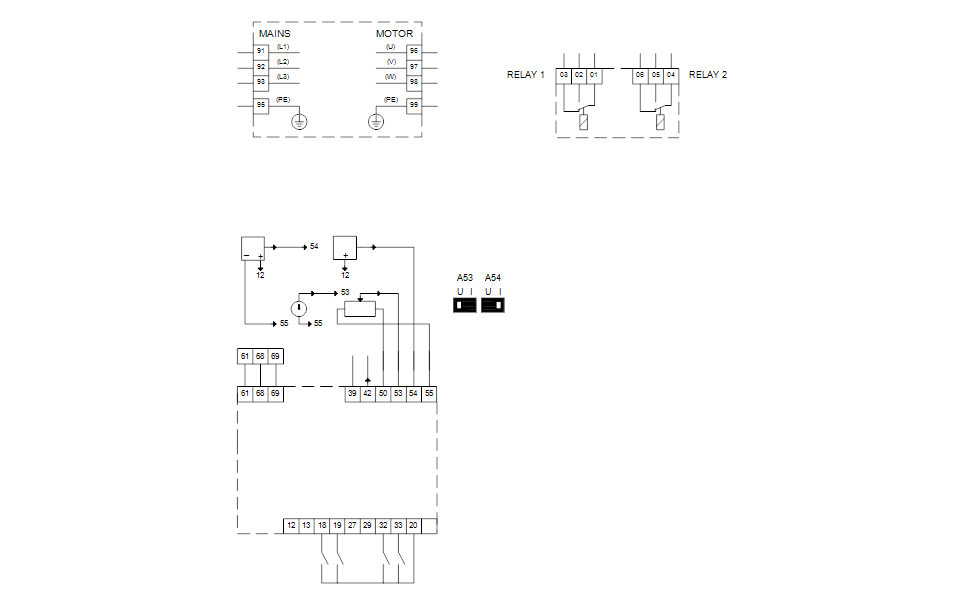

DWiring Diagram
