Description
Baldor Replacement Part — Component

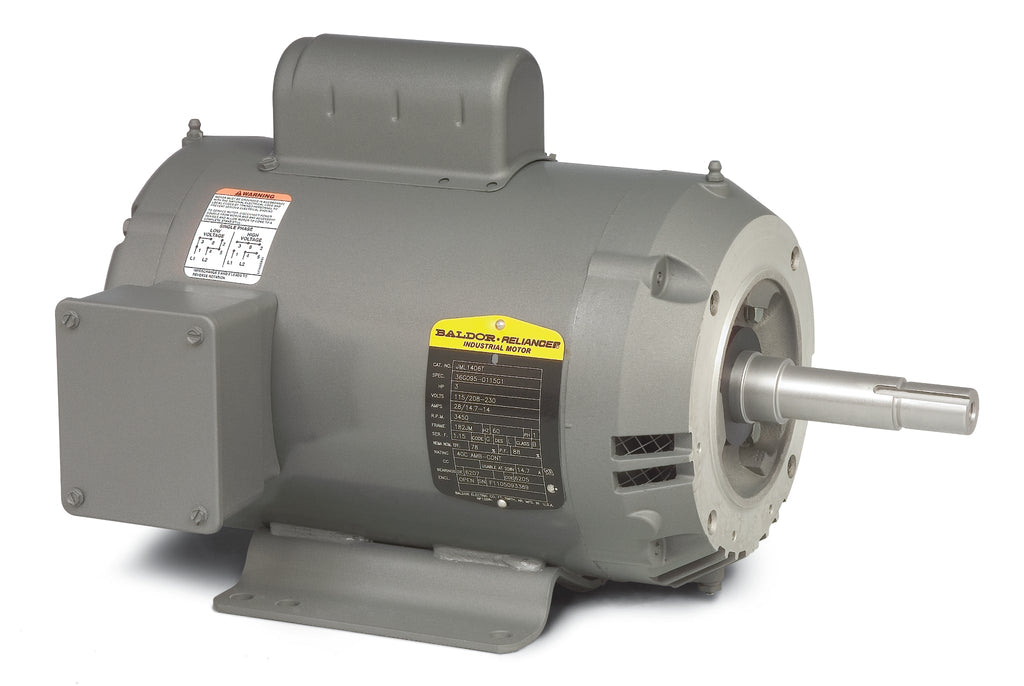

The Baldor JML1406T for Baldor pump systems.
Part Specifications
| Part Number | JML1406T |
| Brand | Baldor |
⚠ Confirm Compatibility Before OrderingAlways verify this part is correct for your specific pump model. Contact PumpStop with your pump model number and we'll confirm.
UPC
781568114629
Supplier Part Number
JML1406T
Category
AC Motors
Subcategory
JM,JP,WCP Close Coupled Motors
Product Family
General Purpose
Agency Approvals
CURUS
Ambient Temperature
40 °C
Approximate Weight (lbs)
69.0
Auxillary Box
No Auxillary Box
Auxillary Box Lead Termination
None
Base Indicator
Rigid
Bearing Grease Type
Polyrex EM (-20F +300F)
Blower
None
Catalog Number
JML1406T
Current @ Voltage
14.000 A @ 230.0 V, 14.700 A @ 208.0 V, 28.000 A @ 115.0 V
Design Code
L
Drip Cover
No Drip Cover
Duty Rating
CONT
Efficiency @ 100% Load
78.0 %
Electrically Isolated Bearing
Not Electrically Isolated
Enclosure
ODP
Feedback Device
NO FEEDBACK
Frame
182JM
Frame Material
Steel
Frequency
60.00 Hz
Front Face Code
Standard
Front Shaft Indicator
None
Haz Area Class and Group
NONE
Haz Area Division
Not Applicable
Heater Indicator
No Heater
High Voltage Full Load Amps
14.0 a
Insulation Class
F
Inverter Code
Not Inverter
KVA Code
G
Lifting Lugs
No Lifting Lugs
Locked Bearing Indicator
Locked Bearing
Motor Lead Exit
Ko Box
Motor Lead Quantity/Wire Size
4 @ 14 AWG, A PH
Motor Lead Termination
Flying Leads
Motor Letter Type
Cap Start, Induction Run
Motor Standards
NEMA
Motor Type
3628L
Mounting Arrangement
F1
Number of Poles
2
Output
3.000 hp
Output @ Frequency
3.000 HP @ 60 HZ
Overall Length
16.50 IN
Phase
1
Power Factor
88
Pulley End Bearing Type
Ball
Pulley Face Code
C-Face
Pulley Shaft Indicator
Tapped & Key
Rodent Screen
Included
Service Factor
1.15
Shaft Diameter
0.875 IN
Shaft Extension Location
Pulley End
Shaft Ground Indicator
No Shaft Grounding
Shaft Rotation
Reversible
Shaft Slinger Indicator
Shaft Slinger
Speed
3450 rpm
Speed Code
Single Speed
Starting Method
Direct on line
Synchronous Speed
3,600 rpm
Synchronous Speed @ Frequency
3600 RPM @ 60 HZ
Thermal Device - Bearing
None
Thermal Device - Winding
None
Vibration Sensor Indicator
No Vibration Sensor
Voltage
115 V, 208 V, 230 V
Voltage @ Frequency
115.0 V @ 60 HZ, 208.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1
None
Winding Thermal 2
None
Motor Curves
