Description
Liberty Pumps — A Family and Employee Owned Company
Model 405 · Commercial Drain Pump · SSPMA Certified · CSA Listed

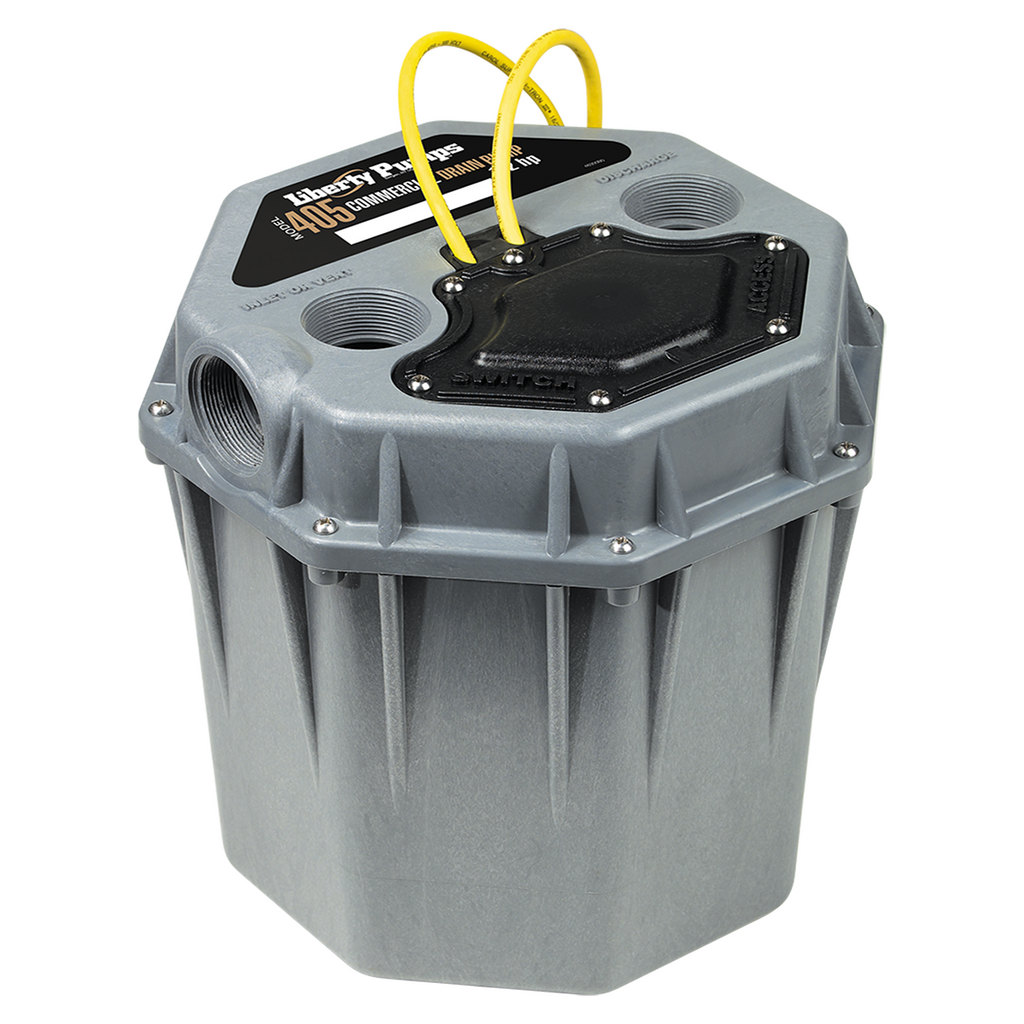

The Liberty Pumps Model 405 is a 1/2 HP factory pre-assembled commercial drain pump and basin, built for higher head applications in commercial and industrial buildings where drain water temperatures can reach 180°F. The 405 handles 3/8" solids and features QuickTree technology for float switch access without disconnecting plumbing. Fully automatic operation, oil-filled thermally protected motor, and a corrosion-resistant polyolefin basin with integrally molded rubber gasket make this the go-to drain pump for bar sinks, commercial kitchens, laundry trays, and dishwasher applications.
Horsepower
1/2 HP
Voltage
115 V
Amps
7.3 A
Speed
3,450 RPM
Max Fluid Temp
180 °F
Solids Handling
3/8 inch
Why This Product
180°F Max Fluid Temperature
Built specifically for commercial drain applications where standard residential pumps fail — dishwashers, bar sinks, and commercial kitchens push temperatures far beyond what a 140°F-rated pump can sustain. The 405 handles it continuously without derating.
QuickTree Float Switch Access
Liberty's QuickTree technology lets maintenance staff inspect or replace the float switch by removing the access cover only — no need to disconnect plumbing or pull the pump. In commercial settings where downtime costs money, this matters.
Factory Pre-Assembled
The 405 arrives ready to install — basin, pump, float switch, and piggyback plug all factory-mounted and tested. No assembly on site means faster installation and no missed steps that could affect the warranty or performance.
Oil-Filled Motor with Thermal Overload
The oil-filled, hermetically sealed motor runs cooler and quieter than air-filled alternatives, and the built-in thermal overload protection shuts the pump down before damage occurs if the motor is overloaded — then resets automatically.
Gas-Tight Integrally Molded Gasket
The rubber gasket is molded directly into the polyolefin basin — not a separate component that can shift or degrade separately. Meets the 10-foot stack test requirement, meaning it holds the seal even under full drain stack back-pressure conditions.
Up to 40% Energy Savings
The 405 uses an efficient motor design that reduces electrical usage by up to 40% compared to standard drain pump motors. For commercial installations running the pump daily across multiple cycles, this pays back meaningfully over the product's life.
Electrical Specifications
| Horsepower | 1/2 HP |
| Voltage | 115V (Model 405) / 230V (Model 405HV) |
| Amperage | 7.3 A (115V) / 3.5 A (230V) |
| Frequency | 60 Hz |
| Speed | 3,450 RPM |
| Motor Type | Oil-filled, hermetically sealed |
| Motor Protection | Thermal-overload protection |
| Power Cord | 10 ft with ground plug |
| Operation | Fully automatic (float switch) / Manual override via piggyback plug |
Pump Specifications
| Inlet Size | 2" NPT |
| Discharge Size | 2" NPT |
| Vent Size | 2" NPT |
| Solids Handling | 3/8" spherical solids |
| Maximum Fluid Temperature | 180°F (82°C) |
| Basin Material | Corrosion-resistant polyolefin |
| Gasket | Integrally molded rubber — gas-tight seal, 10' stack test approved |
| Bearings | Permanently lubricated sealed bearings — maintenance-free |
| Float Switch | Factory-mounted with QuickTree access technology |
| Switch Type | Piggyback plug — allows temporary manual bypass without wiring changes |
Dimensional Data
| Weight | 16 lbs |
| Major Height | 14-1/8" |
| Major Width | 13-3/4" |
| Inlet Height (from bottom of basin) | 12-5/8" |
| Total Basin Capacity | 5.5 gallons |
Available Models
| Model | HP | Volts | Amps | Connections | Alarm |
|---|---|---|---|---|---|
| 405 | 1/2 | 115 | 7.3 | 2" Discharge / Inlet / Vent | None |
| 405/A | 1/2 | 115 | 7.3 | 2" Discharge / Inlet / Vent | Standard Alarm (ALM-2) |
| 405/A-EYE | 1/2 | 115 | 7.3 | 2" Discharge / Inlet / Vent | NightEye Wi-Fi Alarm |
| 405HV | 1/2 | 230 | 3.5 | 2" Discharge / Inlet / Vent | None |
Performance Reference
Model 405 · 115V / 60 Hz · 3,450 RPM · Performance Curve Data Points
| Flow (GPM) | Head at 77°F (ft) | Head at 180°F (ft) |
|---|---|---|
| 0 | ~38 | ~33 |
| 10 | ~33 | ~28 |
| 20 | ~27 | ~22 |
| 30 | ~20 | ~16 |
| 40 | ~12 | ~8 |
| 50 | ~5 | ~2 |
| 60 | 0 | 0 |
Performance data approximated from manufacturer curve. High-temperature operation (180°F) reduces available head. Refer to Liberty Pumps specification sheet for certified curve data.
Key Features
1/2 HP oil-filled hermetically sealed motor
Handles fluid temperatures to 180°F
3/8" solids handling capability
2" discharge, inlet, and vent connections
QuickTree technology for float switch access without disconnecting plumbing
Factory pre-assembled — ready to install
Fully automatic operation via float switch
Piggyback plug for temporary manual bypass
Integrally molded rubber gasket — gas-tight, 10' stack test approved
Corrosion-resistant polyolefin basin
Maintenance-free permanently lubricated sealed bearings
Thermal-overload motor protection with automatic reset
10 ft power cord with ground plug
Separate access cover for easy switch inspection
Up to 40% energy savings vs. standard drain pump motors
Standard alarm and NightEye Wi-Fi alarm models available
SSPMA Certified / CSA Listed
3-Year limited warranty
Typical Applications
Bar sinks and commercial bar drains
Laundry trays and commercial laundry
Multi-compartment utility sinks
Dishwashers and commercial kitchens
Dehumidifiers
Gray wastewater drainage below gravity lines
Commercial and industrial buildings requiring high-head drain pumping
Any application where drain water temperature exceeds 140°F
Important Notices
| Chemical use | Not intended for use with chemicals, flammable fluids, grease, hydrocarbons, sand, cement, or abrasives. Use with these substances voids warranty and risks pump failure. |
| Temperature limit | Do not operate with fluid temperatures above 180°F (82°C). Exceeding this limit will overheat the pump and cause failure. |
| Electrical | Must be connected to a GFCI receptacle meeting UL 943 requirements. Do not use an extension cord. Requires a separately fused, grounded branch circuit sized for pump voltage and amperage. |
| Grounding | Pump must be properly grounded using the supplied grounding conductor. Never bypass the ground prong. |
| Disassembly | Field disassembly beyond float switch removal voids warranty. Contact Liberty Pumps or an authorized service center for internal repairs. |
Before You Order Confirm model variant (standard 405, alarmed 405/A, NightEye 405/A-EYE, or high-voltage 405HV) before placing your order. Alarmed models ship with the alarm float factory-mounted — no assembly required. For current lead times, chat or call (781) 281-8905. Image shown may not reflect actual product.
Documentation
| Specification Sheet | Liberty Pumps Model 405 — Specification Sheet (PDF) |
| Installation Manual | Liberty Pumps Model 404 / 405 — Installation Manual (PDF) |
