Grundfos 78334516 - MS6000XT40 | Submersible Motor | High Efficiency

GRUNDFOSSKU: 78334516

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 78334516 MS6000XT40 is a high-efficiency submersible motor designed for use with MS6000 series pump systems. It fits industrial and commercial pumping applications where reliable, energy-efficient motor performance is required by maintenance and service technicians.

Key features

  • High-efficiency submersible motor construction for prolonged operation
  • Designed for MS6000 series controls and pump systems
  • Provides dependable replacement performance to reduce downtime

Applications

Ideal for industrial pumping, municipal water systems, and commercial booster or wastewater pumps. Commonly used as a replacement motor where MS6000-series compatibility is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 78334516

EAN 5700390627034
Applications Motors
Approvals CE
Axial load max 27 kN
Breakdown torque 280-310 %
Built-in motor protection NONE
Built-in temp. transmitter no
CE approved (Yes/No) Y
Diameter 6 inch
Enclosure class (IEC 34-5) IP68
Insulation class (IEC 85) F
KVA code J
Locked-rotor torque 150-170 %
Mains frequency 60 Hz
Material Pricing Group 28
Max liquid t at 0.15 m/sec 104 °F
Maximum ambient pressure 60 bar
Maximum current consumption 39 A
Model C
Moment of inertia 0.17 lb ft²
Motor Stainless steel
Motor diameter 6 inch
Motor type MS6000
Motor version T40
Net weight 117.0 lb
Power factor 1 0.84-0.81
Product family MS6000
Rated current 39.0-38.5 A
Rated full-load torque 1 35.03 ft lb
Rated power - P2 15 kW
Rated speed 3470-3480 rpm
Rated voltage 3 x 380-400 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Service factor 1.15
Shaft seal for motor CER/CARNBR
Start. method direct-on-line
Starting current 560-600 %
Thermal protec external
Type MS6000
Version T40
Voltage tolerance +6/-10 %
Winding resistance 0.597 ohm
Windings Enamelled

Motor Curves

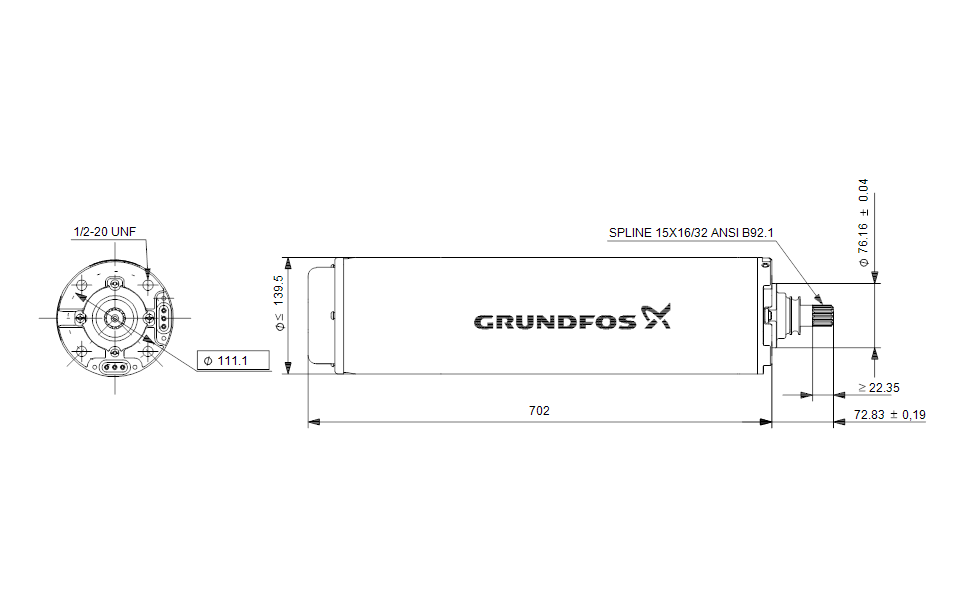

Dimensional Drawing

DWiring Diagram
