Grundfos 78105514 - MS6000T40 | Submersible Motor | High Efficiency

GRUNDFOSSKU: 78105514

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos MS6000T40 submersible motor designed for industrial pump systems, offering high efficiency for operators needing reliable motor replacements and service parts.

Key features

  • Designed for submersible pump installations and industrial applications
  • Related to Grundfos controls and accessories and MS6000 series components
  • Delivers efficient operation to reduce energy use and downtime

Applications

Suitable for use in industrial pumping stations, wastewater and sewage systems, and other submersible motor-driven equipment where MS6000 series compatibility is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 78105514

EAN 5700390615932
Applications Motors
Approvals CE
Axial load max 27 kN
Breakdown torque 290-320 %
Built-in motor protection NONE
Built-in temp. transmitter yes
CE approved (Yes/No) Y
Diameter 6 inch
Enclosure class (IEC 34-5) IP68
Insulation class (IEC 85) F
Locked-rotor torque 180-200 %
Mains frequency 50 Hz
Material Pricing Group 28
Max liquid t at 0.15 m/sec 104 °F
Maximum ambient pressure 60 bar
Model C
Moment of inertia 0.135 lb ft²
Motor Stainless steel
Motor diameter 6 inch
Motor type MS6000
Motor version T40
Net weight 101.0 lb
Power factor 1 0.80-0.76
Product family MS6000
Rated current 46.0-46.5 A
Rated full-load torque 1 26.92 ft lb
Rated power - P2 11 kW
Rated speed 2880-2890 rpm
Rated voltage 3 x 220-230 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Shaft seal for motor CER/CARNBR
Start. method direct-on-line
Starting current 530-560 %
Thermal protec external
Type MS6000
Version T40
Voltage tolerance +6/-10 %
Winding resistance 0.347 ohm
Windings Enamelled

Motor Curves

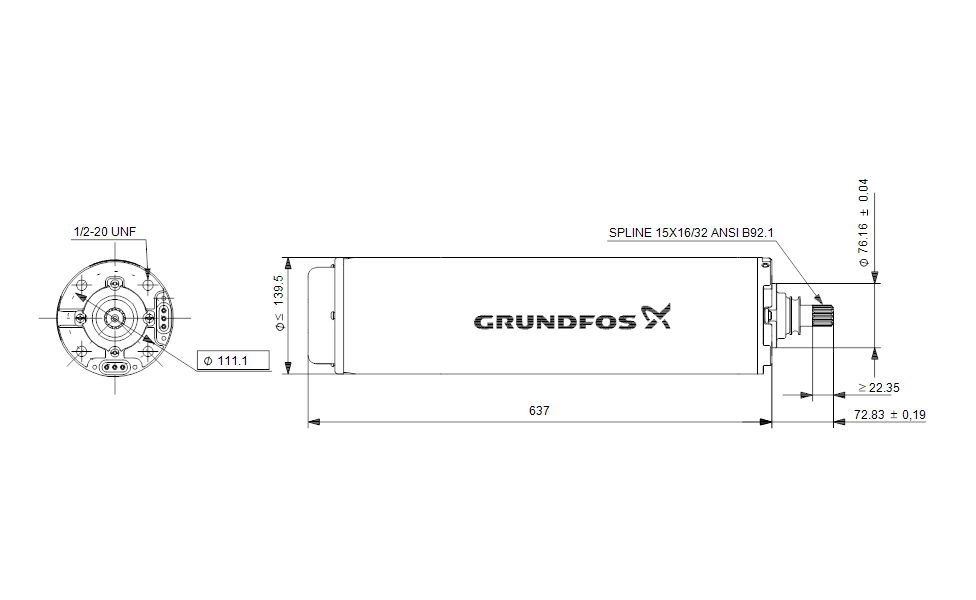

Dimensional Drawing

DWiring Diagram
