Grundfos 78105512 - MS6000T40 | Submersible Motor | High Efficiency

GRUNDFOSSKU: 78105512

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos MS6000T40 submersible motor for the MS6000 series, designed for 3-phase canned motor pump applications with a sand shield and liquid-lubricated bearings. Typical users include service technicians and plant maintenance teams replacing or upgrading pump motors.

Key features

  • 3-phase canned-type motor with sand shield for solids-handling environments
  • Compatible with Grundfos Controls & Accessories and MS6000 series installations
  • Liquid-lubricated bearings and pressure-equalizing diaphragm provide durable, reliable operation

Applications

Suitable for submersible pump systems in municipal, industrial, and wastewater settings, plus replacement motor applications where compact, high-efficiency submersible motors are required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 78105512

EAN 5700390615840
Applications Motors
Approvals CE
Axial load max 7.5 kN
Breakdown torque 250-280 %
Built-in motor protection NONE
Built-in temp. transmitter yes
CE approved (Yes/No) Y
Diameter 6 inch
Enclosure class (IEC 34-5) IP68
Insulation class (IEC 85) F
Locked-rotor torque 160-180 %
Mains frequency 50 Hz
Material Pricing Group 28
Max liquid t at 0.15 m/sec 104 °F
Maximum ambient pressure 60 bar
Model C
Moment of inertia 0.105 lb ft²
Motor Stainless steel
Motor diameter 6 inch
Motor type MS6000
Motor version T40
Net weight 81.6 lb
Power factor 1 0.82-0.79
Product family MS6000
Rated current 31.0-31.0 A
Rated full-load torque 1 18.44 ft lb
Rated power - P2 7.5 kW
Rated speed 2870-2880 rpm
Rated voltage 3 x 220-230 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Shaft seal for motor CER/CARNBR
Start. method direct-on-line
Starting current 500-530 %
Thermal protec external
Type MS6000
Version T40
Voltage tolerance +6/-10 %
Winding resistance 0.560 ohm
Windings Enamelled

Motor Curves

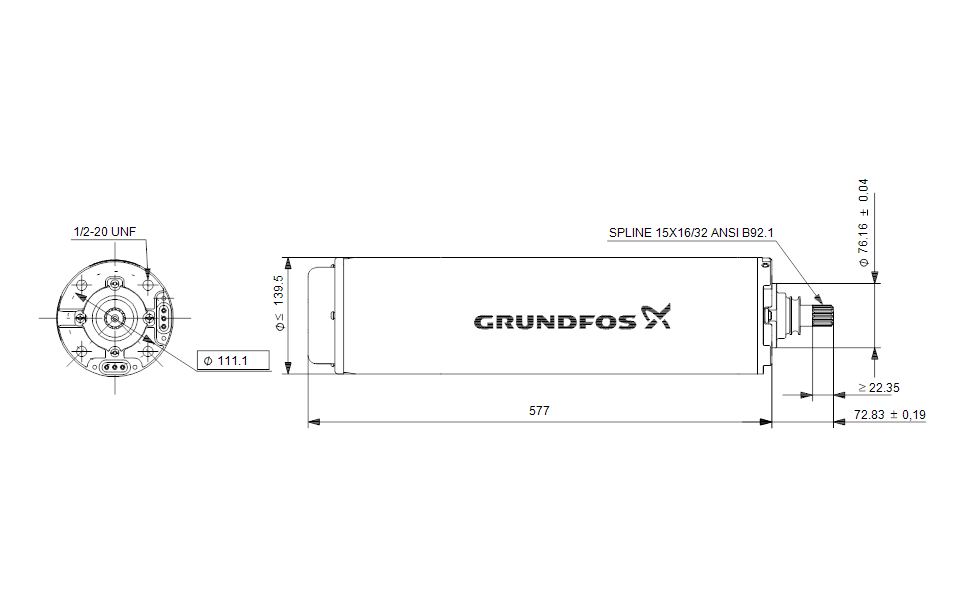

Dimensional Drawing

DWiring Diagram
