Grundfos 78105511 - MS6000T40 | Submersible Motor | High Efficiency

GRUNDFOSSKU: 78105511

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 78105511 - MS6000T40 is a submersible motor designed for use with MS6000 series pump controls and related pump systems, suited for industrial and commercial applications where a high-efficiency motor is required.

Key features

  • Manufactured by Grundfos for use in various industrial applications
  • Compatible with MS6000 series controls and accessory configurations
  • High-efficiency submersible design helps reduce energy use and operating cost

Applications

Commonly used in wastewater, sewage, and dewatering systems, as well as other pump installations that require a robust submersible motor compatible with MS6000 control platforms.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 78105511

EAN 5700390615802
Applications Motors
Approvals CE
Axial load max 7.5 kN
Breakdown torque 280-310 %
Built-in motor protection NONE
Built-in temp. transmitter yes
CE approved (Yes/No) Y
Diameter 6 inch
Enclosure class (IEC 34-5) IP68
Insulation class (IEC 85) F
Locked-rotor torque 170-180 %
Mains frequency 50 Hz
Material Pricing Group 28
Max liquid t at 0.15 m/sec 104 °F
Maximum ambient pressure 60 bar
Model C
Moment of inertia 0.088 lb ft²
Motor Stainless steel
Motor diameter 6 inch
Motor type MS6000
Motor version T40
Net weight 75.0 lb
Power factor 1 0.78-0.73
Product family MS6000
Rated current 24.4-24.8 A
Rated full-load torque 1 13.42 ft lb
Rated power - P2 5.5 kW
Rated speed 2880-2900 rpm
Rated voltage 3 x 220-230 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Shaft seal for motor CER/CARNBR
Start. method direct-on-line
Starting current 510-530 %
Thermal protec external
Type MS6000
Version T40
Voltage tolerance +6/-10 %
Winding resistance 0.760 ohm
Windings Enamelled

Motor Curves

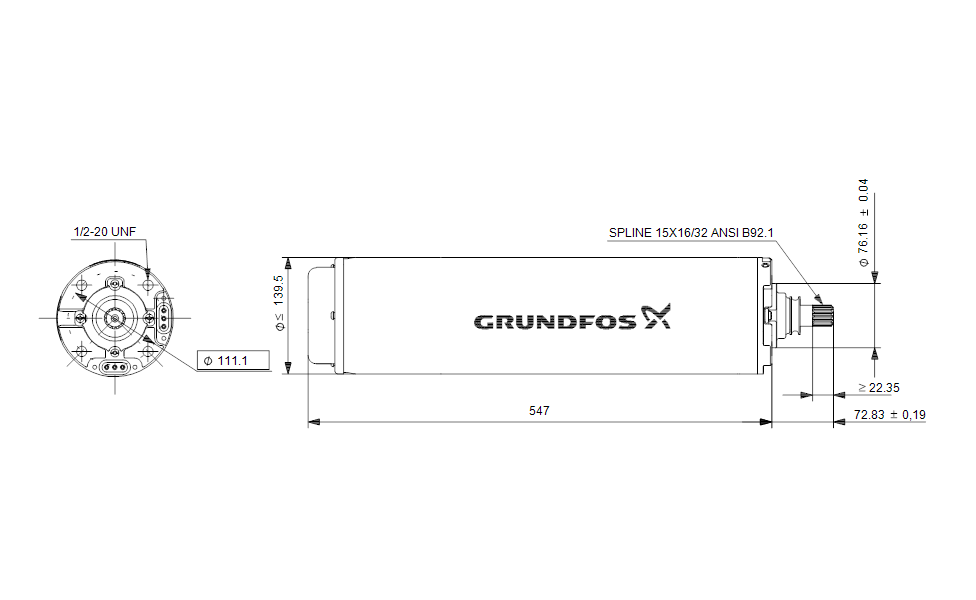

Dimensional Drawing

DWiring Diagram
