Grundfos 98735517 - MS6000RESWT40 | Submersible Motor | High Efficiency

GRUNDFOSSKU: 98735517

Price:
Sale price$11,191.67
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos MS6000RESWT40 submersible motor designed for use with MS6000 series pump systems; suited for commercial and industrial submersible pumping applications where a robust 3-phase motor is required.

Key features

  • 3-phase canned-type motor construction for reliable submersible operation
  • Sand shield and liquid-lubricated bearings to resist particulate wear
  • Pressure-equalizing diaphragm reduces shaft load and improves longevity

Applications

Suitable for wastewater, sewage lift stations, and other submerged pumping environments where solids-handling pumps are used. Compatible with control and accessory packages for MS series installations.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98735517

EAN 5712600689664
Applications Motors
Axial load max 27 kN
Breakdown torque 230-260-290 %
Built-in motor protection NONE
Built-in temp. transmitter yes
CE approved (Yes/No) Y
Diameter 6 inch
Enclosure class (IEC 34-5) IP68
Insulation class (IEC 85) F
Locked-rotor torque 140-160-170 %
Mains frequency 50 Hz
Material Pricing Group 91
Max liquid t at 0.15 m/sec 104 °F
Maximum ambient pressure 60 bar
Model C
Moment of inertia 0.297 lb ft²
Motor Stainless steel
Motor diameter 6 inch
Motor type MS6000
Motor version T40
Net weight 172.0 lb
Power factor 1 0.87-0.85-0.82
Product family MS6000
Rated current 140-160-170 A
Rated full-load torque 1 70.44 ft lb
Rated power - P2 30 kW
Rated speed 2850-2870-2880 rpm
Rated voltage 3 x 380-400-415 V
Real Time 1 Available on 10/12/2023 Plant: Spares US Memphis  Update with real time availability and Net price
Shaft seal for motor SIC/SICFKM
Start. method direct-on-line
Starting current 450-500-530 %
Thermal protec external
Type MS6000
Version T40
Voltage tolerance +6/-10 %
Winding resistance 0.383 ohm
Windings Enamelled

Motor Curves

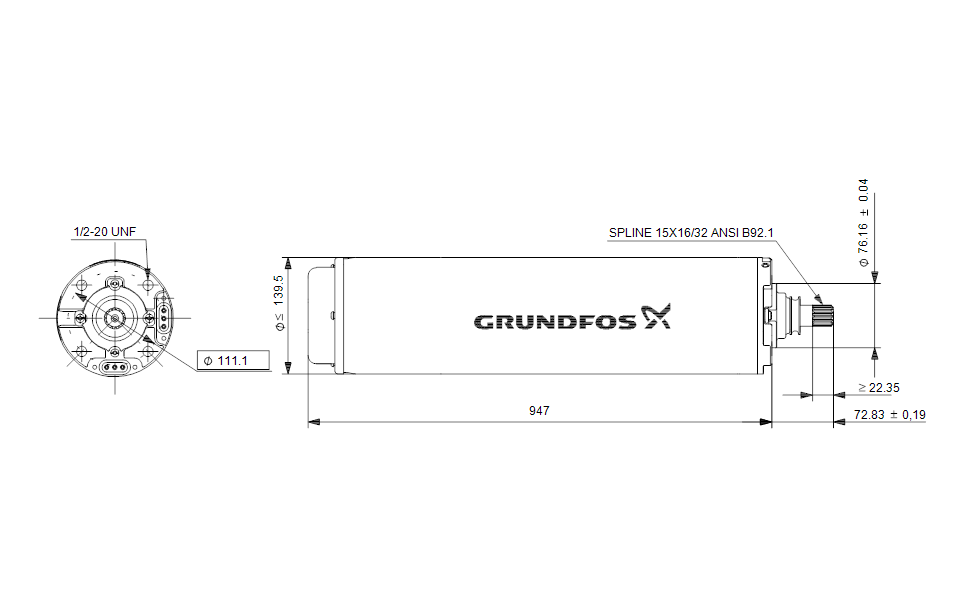

Dimensional Drawing

DWiring Diagram
