Grundfos 78198616 - MS6000RESWDT40 | Submersible Motor | High Efficiency

GRUNDFOSSKU: 78198616

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 78198616 - MS6000RESWDT40 is a high-efficiency submersible motor designed for industrial pump systems and control packages. It fits MS6000 series installations and is used by maintenance, OEM, and facilities teams.

Key features

  • Manufactured for various industrial applications and control system integration
  • Compatible with MS6000 controls and accessories for streamlined installation
  • High-efficiency submersible design for reduced operating costs and reliable service

Applications

Typical uses include water and wastewater pumping, booster and pressure systems, and industrial process pumping where MS6000 control compatibility is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 78198616

EAN 5700390622800
Applications Motors
Approvals CE
Axial load max 27 kN
Breakdown torque 240-280-310 %
Built-in motor protection NONE
Built-in temp. transmitter yes
CE approved (Yes/No) Y
Diameter 6 inch
Enclosure class (IEC 34-5) IP68
Insulation class (IEC 85) F
Locked-rotor torque 140-170-180 %
Mains frequency 50 Hz
Material Pricing Group 28
Max liquid t at 0.15 m/sec 104 °F
Maximum ambient pressure 60 bar
Model C
Moment of inertia 0.17 lb ft²
Motor Stainless steel
Motor diameter 6 inch
Motor type MS6000
Motor version T40
Net weight 117.0 lb
Power factor 1 0.85-0.82-0.79
Product family MS6000
Rated current 34.5-33.5-33.5 A
Rated full-load torque 1 35.03 ft lb
Rated power - P2 15 kW
Rated speed 2860-2870-2880 rpm
Rated voltage 3 x 380-400-415 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Shaft seal for motor SIC/SICFKM
Start. method direct-on-line
Starting current 490-540-570 %
Thermal protec external
Type MS6000
Version T40
Voltage tolerance +6/-10 %
Winding resistance 0.813 ohm
Windings Enamelled

Motor Curves

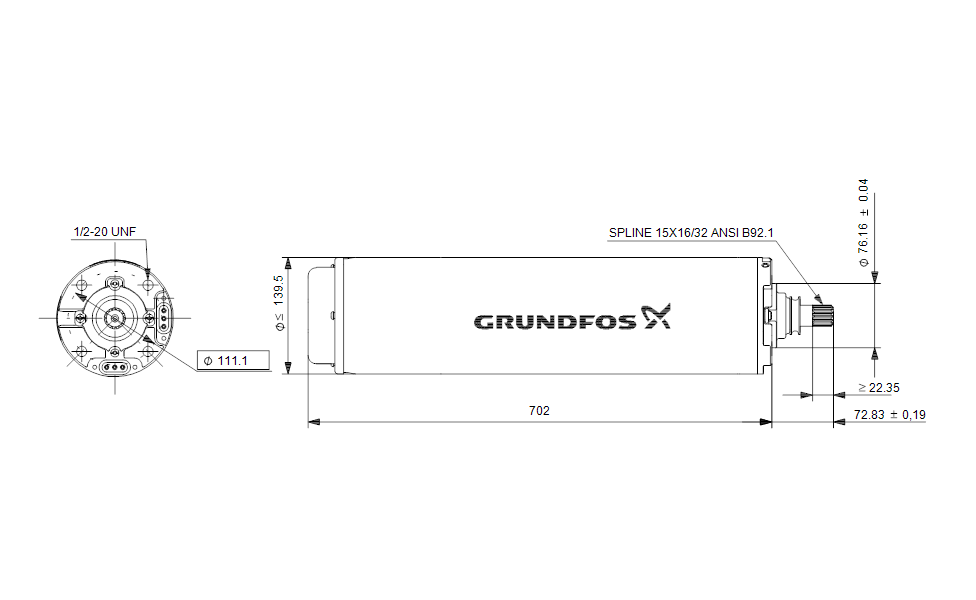

Dimensional Drawing

DWiring Diagram
