Grundfos 78198611 - MS6000RESWDT40 | Submersible Motor | High Efficiency

GRUNDFOSSKU: 78198611

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos MS6000RESWDT40 is a submersible, high-efficiency motor designed for MS6000 series pump applications used by contractors and industrial service technicians requiring reliable submerged drive power.

Key features

  • 3‑phase canned‑type motor with integrated sand shield for extended service life
  • Compatible with MS6000 series controls and accessories for seamless retrofit
  • Liquid‑lubricated bearings and a pressure‑equalizing diaphragm for improved durability and stable operation

Applications

Suitable for submersible pump systems in wells, water transfer, and dewatering installations where a compact, efficient motor is needed. Commonly used by pump service professionals and maintenance crews.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 78198611

EAN 5700390622589
Applications Motors
Approvals CE
Axial load max 7.5 kN
Breakdown torque 240-270-300 %
Built-in motor protection NONE
Built-in temp. transmitter yes
CE approved (Yes/No) Y
Diameter 6 inch
Enclosure class (IEC 34-5) IP68
Insulation class (IEC 85) F
Locked-rotor torque 140-160-180 %
Mains frequency 50 Hz
Material Pricing Group 28
Max liquid t at 0.15 m/sec 104 °F
Maximum ambient pressure 60 bar
Model C
Moment of inertia 0.088 lb ft²
Motor Stainless steel
Motor diameter 6 inch
Motor type MS6000
Motor version T40
Net weight 75.0 lb
Power factor 1 0.82-0.78-0.75
Product family MS6000
Rated current 13.6-13.4-13.6 A
Rated full-load torque 1 12.83 ft lb
Rated power - P2 5.5 kW
Rated speed 2870-2880-2890 rpm
Rated voltage 3 x 380-400-415 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Shaft seal for motor SIC/SICFKM
Start. method direct-on-line
Starting current 470-510-520 %
Thermal protec external
Type MS6000
Version T40
Voltage tolerance +6/-10 %
Winding resistance 2.467 ohm
Windings Enamelled

Motor Curves

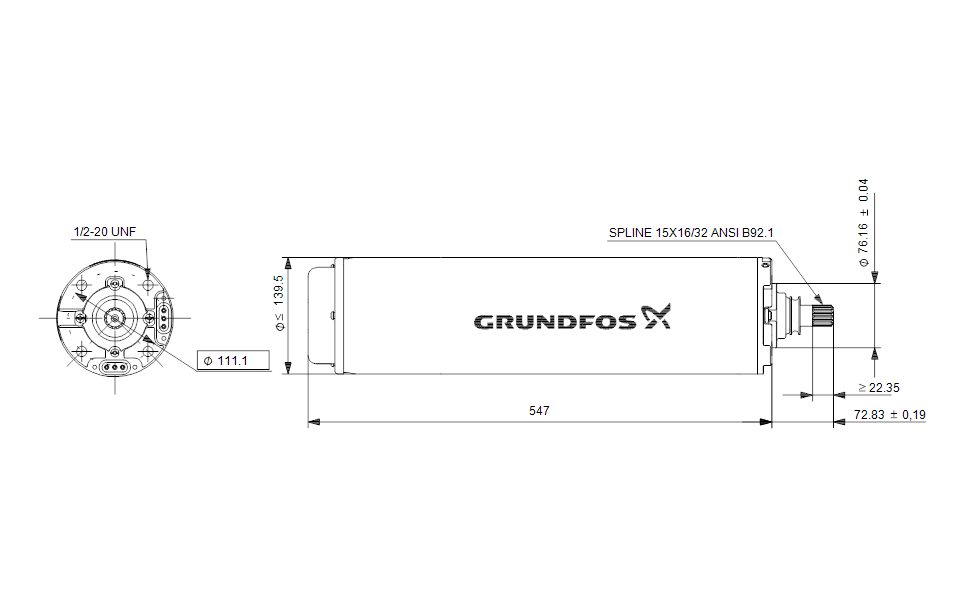

Dimensional Drawing

DWiring Diagram
