Grundfos 79712105 - MS 402 | Submersible Motor | High Efficiency

GRUNDFOSSKU: 79712105

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos MS 402 submersible motor (SKU 79712105) is a high-efficiency replacement motor for industrial pumping systems, suited for technicians and maintenance teams.

Key features

  • Manufactured for various industrial applications and equipment replacement
  • Designed for MS 402 and MS-series motor installations
  • High-efficiency design helps reduce energy use and extend service life

Applications

Suitable for industrial pumping, wastewater handling, irrigation systems, and OEM pump motor replacements where a submersible MS 402 motor is specified.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 79712105

EAN 5708601013812
Applications Motors
Approvals CE
Axial load max 350 kg
Built-in motor protection CONTACT
Built-in temp. transmitter no
Diameter 4 inch
Enclosure class (IEC 34-5) IP68
Insulation class (IEC 85) B
Locked-rotor torque 0.8
Mains frequency 50 Hz
Material Pricing Group 26
Max liquid t at 0.15 m/sec 104 °F
Maximum ambient pressure 15 bar
Model B
Moment of inertia 0.019 lb ft²
Motor Stainless steel
Motor diameter 4 inch
Motor type MS402
Motor type 1-phase RSIR
Motor version T40
Net weight 23.2 lb
Power factor 1 0.8
Product family MS 402
Rated current 10.8 A
Rated power - P2 1.1 kW
Rated speed 2860 rpm
Rated voltage 1 x 230 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Shaft seal for motor LIPSEAL
Start. method direct-on-line
Starting current 6
Thermal protec internal
Type MS402
Version T40
Voltage tolerance +10/-10 %
Windings Enamelled

Motor Curves

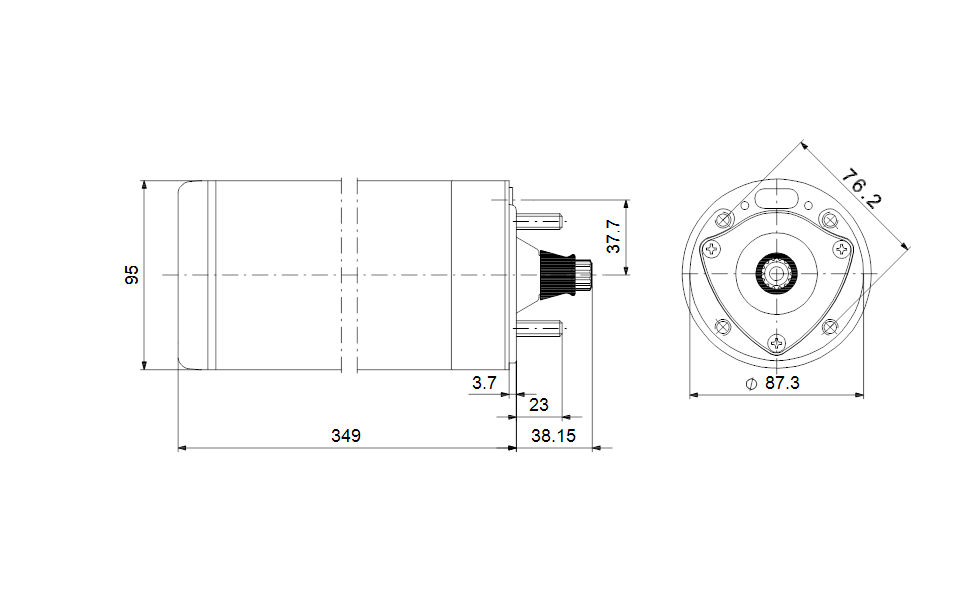

Dimensional Drawing

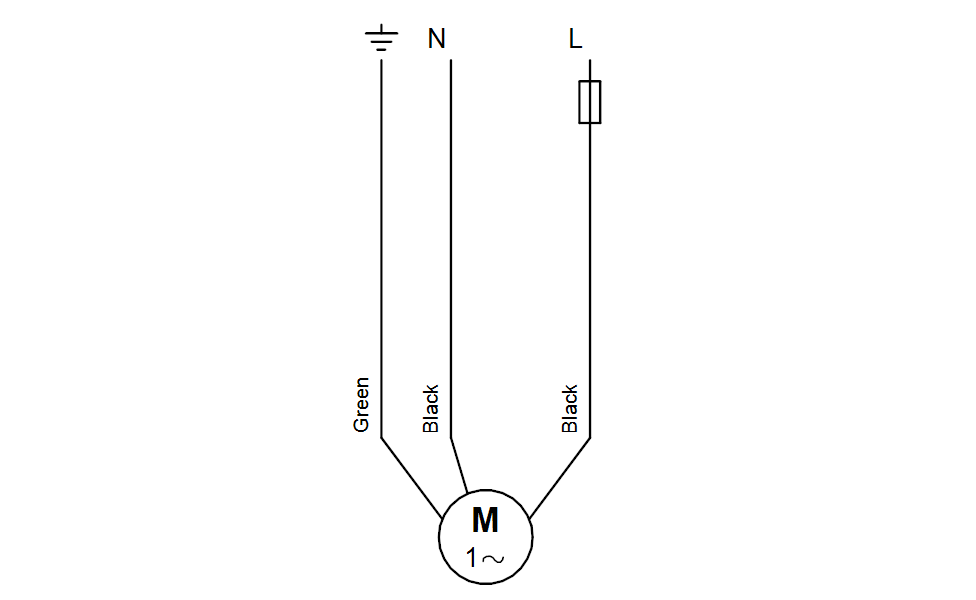

DWiring Diagram
