Grundfos 79712103 - MS 402 | Submersible Motor | High Efficiency

GRUNDFOSSKU: 79712103

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 79712103 - MS 402 is a submersible motor designed for use in pump systems and control assemblies, suited for technicians, contractors, and facility managers seeking reliable replacement components.

Key features

  • Manufactured for various industrial applications
  • Compatible with MS 402 and related Ms series controls & accessories
  • High-efficiency submersible motor offering improved operational economy

Applications

Typical uses include replacement motor installs in submersible pump systems, control panel integrations, municipal and commercial fluid handling, irrigation, and general industrial pumping tasks.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 79712103

EAN 5700390662325
Applications Motors
Approvals CE
Axial load max 350 kg
Built-in motor protection CONTACT
Built-in temp. transmitter no
Diameter 4 inch
Enclosure class (IEC 34-5) IP68
Insulation class (IEC 85) B
Locked-rotor torque 0.9
Mains frequency 50 Hz
Material Pricing Group 26
Max liquid t at 0.15 m/sec 104 °F
Maximum ambient pressure 15 bar
Model B
Moment of inertia 0.012 lb ft²
Motor Stainless steel
Motor diameter 4 inch
Motor type MS402
Motor type 1-phase RSIR
Motor version T40
Net weight 17.0 lb
Power factor 1 0.74
Product family MS 402
Rated current 5.8 A
Rated power - P2 0.55 kW
Rated speed 2860 rpm
Rated voltage 1 x 230 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Shaft seal for motor LIPSEAL
Start. method direct-on-line
Starting current 7.4
Thermal protec internal
Type MS402
Version T40
Voltage tolerance +10/-10 %
Windings Enamelled

Motor Curves

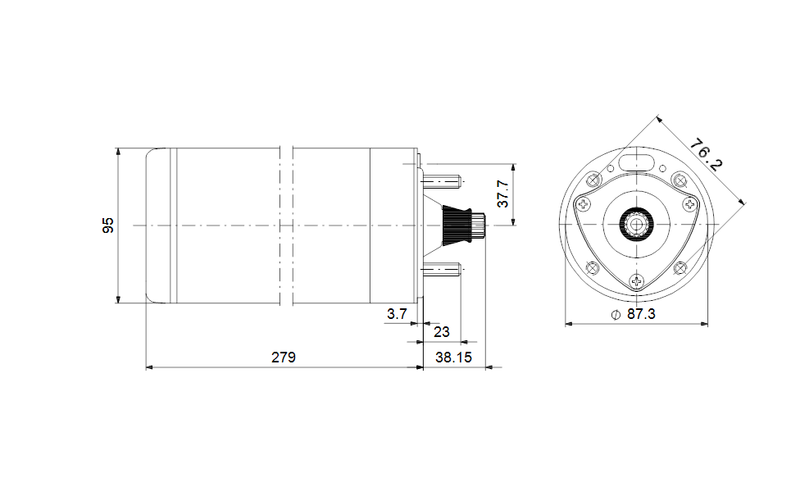

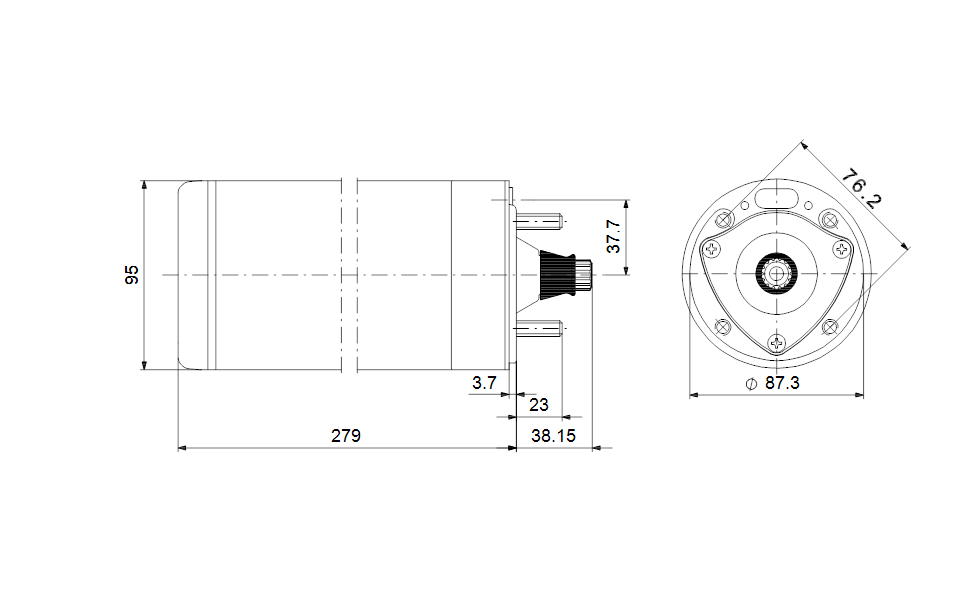

Dimensional Drawing

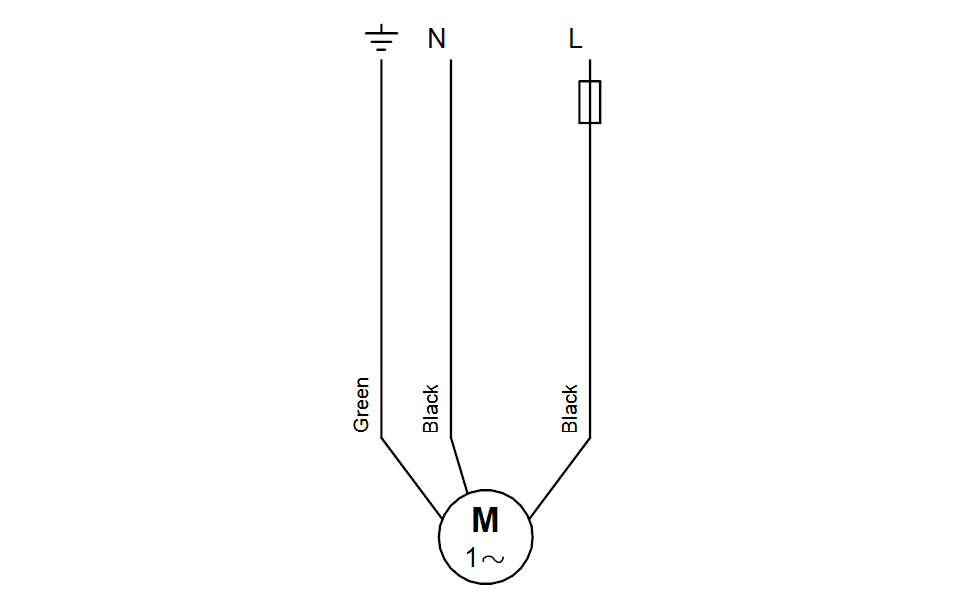

DWiring Diagram
