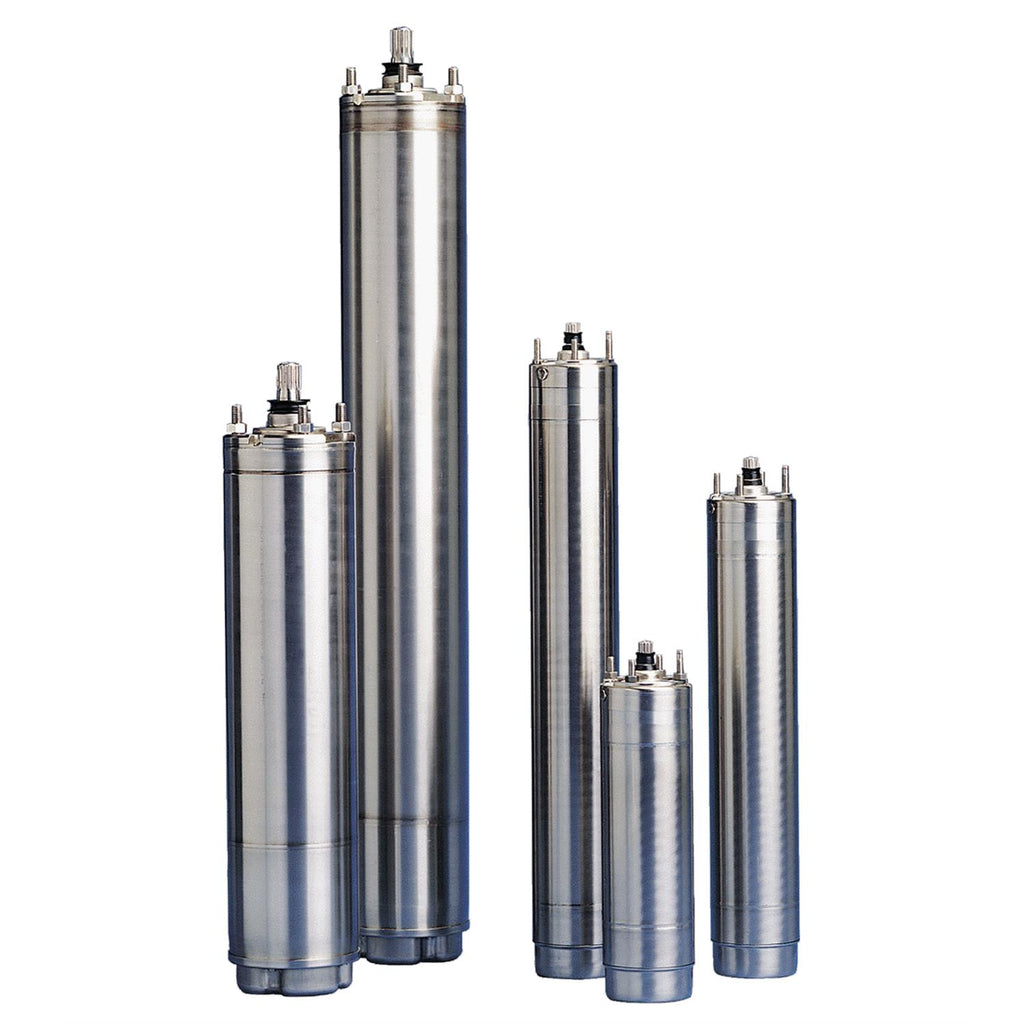

Grundfos 79302606 - MS 402 | Submersible Motor | High Efficiency

This item ships free!
GRUNDFOSSKU: 79302606

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos MS 402 is a high-efficiency submersible motor designed for use in sealed pump assemblies; technicians and maintenance teams use it for reliable submerged motor service in industrial and municipal pump systems.

Key features

  • 3-phase canned motor construction with sand shield for solid particle resistance
  • Liquid-lubricated bearings and pressure-equalizing diaphragm for extended service life
  • High-efficiency design to reduce operating energy and downtime

Applications

Suitable for submersible pump motors in water supply, wastewater, irrigation, and general dewatering or ventilation systems where sealed, submerged operation is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 79302606

EAN 5700390655389
Applications Motors
Approvals CE
Axial load max 350 kg
Breakdown torque 3.6
Built-in motor protection NONE
Built-in temp. transmitter no
Diameter 4 inch
Enclosure class (IEC 34-5) IP58
Insulation class (IEC 85) B
KVA code L
Locked-rotor torque 3.1
Mains frequency 60 Hz
Material Pricing Group 26
Maximum ambient pressure 15 bar
Maximum current consumption 8.7 A
Moment of inertia 0.019 lb ft²
Motor Stainless steel
Motor diameter 4 inch
Motor type MS402
Power factor 1 0.75
Product family MS 402
Rated current 8.7 A
Rated full-load torque 1 3.835 ft lb
Rated power - P2 1.5 kW
Rated speed 3450 rpm
Rated voltage 3 x 230 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Service factor 1.25
Shaft seal for motor LIPSEAL
Start. method direct-on-line
Starting current 5.5
Thermal protec external
Type MS402
Voltage tolerance +10/-10 %
Winding resistance 2.28 ohm

Motor Curves

DWiring Diagram
