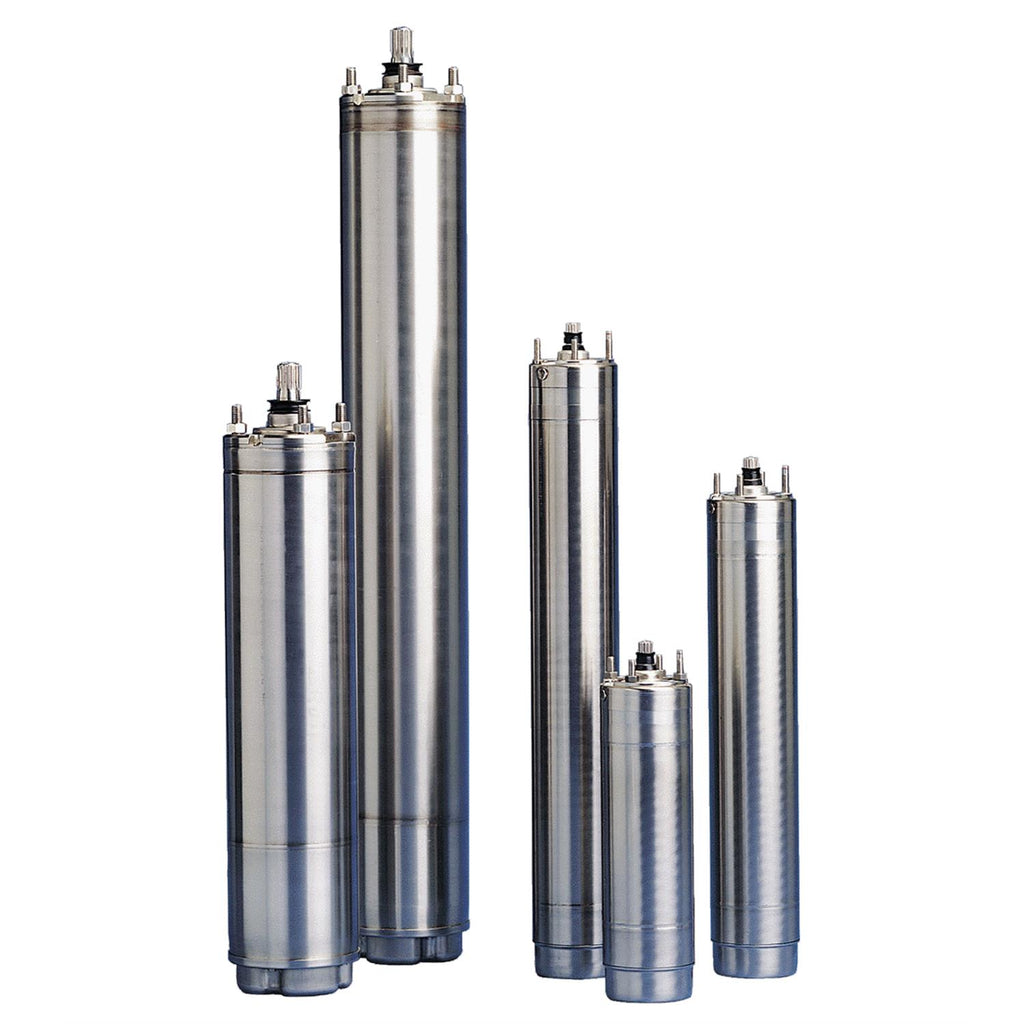

Grundfos 79213106 - MS 402 | Submersible Motor | High Efficiency

GRUNDFOSSKU: 79213106

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos MS 402 submersible motor designed for use as a replacement motor in compatible pump assemblies; suitable for technicians and maintenance teams servicing submersible pumps.

Key features

  • 1-phase canned motor construction with integrated sand shield
  • Liquid-lubricated bearings and pressure-equalizing diaphragm as noted in product literature
  • High-efficiency design to help maintain reliable pump operation and reduce downtime

Applications

Commonly used in submersible pump repairs, well and bore installations, irrigation systems, and general water-handling equipment where a compatible MS 402 motor is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 79213106

EAN 5700390653859
Applications Motors
Approvals CE
Axial load max 350 kg
Breakdown torque 2.1
Built-in motor protection NONE
Built-in temp. transmitter no
Capacitor size - run 50 µF/370 V
Capacitor size - start 160 µF/330 V
Diameter 4 inch
Enclosure class (IEC 34-5) IP68
Insulation class (IEC 85) B
Locked-rotor torque 1.8
Mains frequency 50 Hz
Material Pricing Group 26
Max liquid t at 0.15 m/sec 104 °F
Maximum ambient pressure 15 bar
Model B
Moment of inertia 0.019 lb ft²
Motor Stainless steel
Motor diameter 4 inch
Motor type MS402
Motor type 1-phase CSCR
Motor version T40
Net weight 24.3 lb
Power factor 1 0.98
Product family MS 402
Rated current 10.2 A
Rated full-load torque 1 3.688 ft lb
Rated power - P2 1.5 kW
Rated speed 2860 rpm
Rated voltage 1 x 230 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Shaft seal for motor LIPSEAL
Start. method direct-on-line
Starting current 4.6
Thermal protec external
Type MS402
Version T40
Voltage tolerance +10/-10 %
Windings Enamelled

Motor Curves

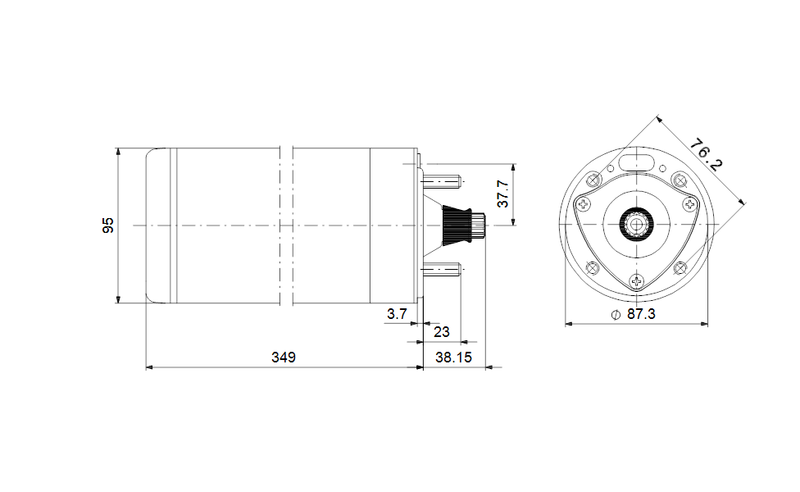

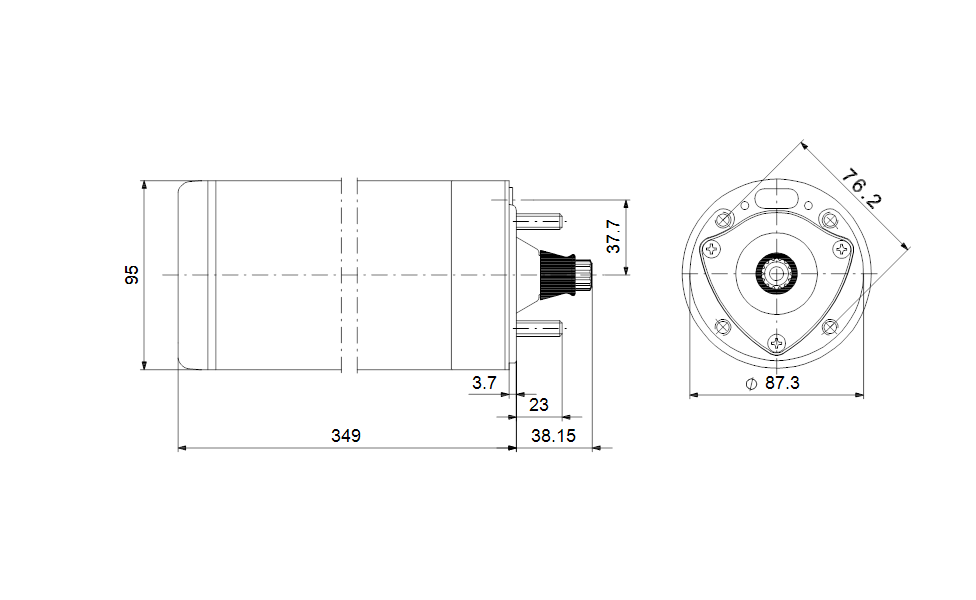

Dimensional Drawing

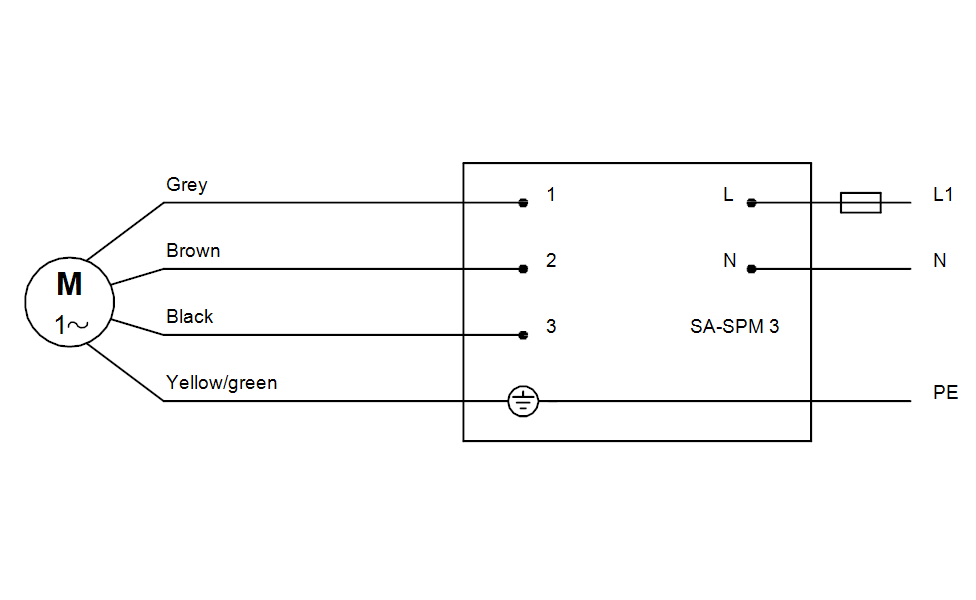

DWiring Diagram
