Grundfos 79192006 - MS 402 | Submersible Motor | High Efficiency

GRUNDFOSSKU: 79192006

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

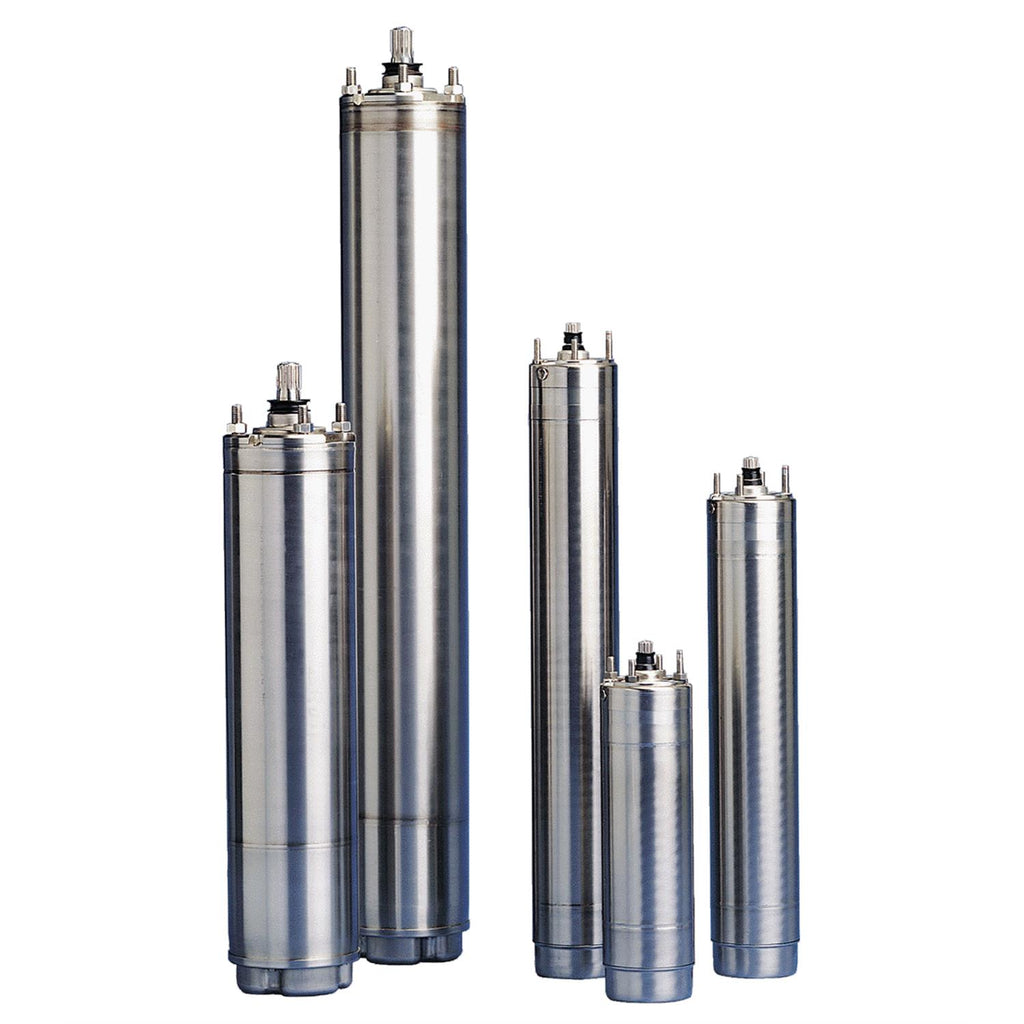

This listing is the Grundfos 79192006 MS 402 submersible motor, a high-efficiency replacement motor intended for use in compatible MS-series pump assemblies and industrial pump systems used by service technicians and plant maintenance teams.

Key features

  • Submersible motor construction suitable for wet installation environments
  • Designed for MS 402 series applications and related pump motor platforms
  • High-efficiency performance to help reduce operating energy use

Applications

Replacement and repair for MS-series submersible pumps, industrial dewatering, wastewater handling, and OEM service stock where MS 402 compatibility is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 79192006

EAN 5700392329134
Applications Motors
Approvals CE
Axial load max 350 kg
Breakdown torque 280-310-340 %
Built-in motor protection NONE
Built-in temp. transmitter no
Diameter 4 inch
Enclosure class (IEC 34-5) IP68
Insulation class (IEC 85) B
Locked-rotor torque 220-250-270 %
Mains frequency 50 Hz
Material Pricing Group 26
Max liquid t at 0.15 m/sec 104 °F
Maximum ambient pressure 15 bar
Model B
Moment of inertia 0.019 lb ft²
Motor Stainless steel
Motor diameter 4 inch
Motor type MS402
Motor version T40
Net weight 23.2 lb
Power factor 1 0.80-0.75-0.70
Product family MS 402
Rated current 4.10-4.20-4.40 A
Rated full-load torque 1 3.762 ft lb
Rated power - P2 1.5 kW
Rated speed 2850-2860-2870 rpm
Rated voltage 3 x 380-400-415 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Shaft seal for motor LIPSEAL
Start. method direct-on-line
Starting current 490-500-500 %
Thermal protec external
Type MS402
Version T40
Voltage tolerance +6/-10 %
Winding resistance 10.20 ohm
Windings Enamelled

Motor Curves

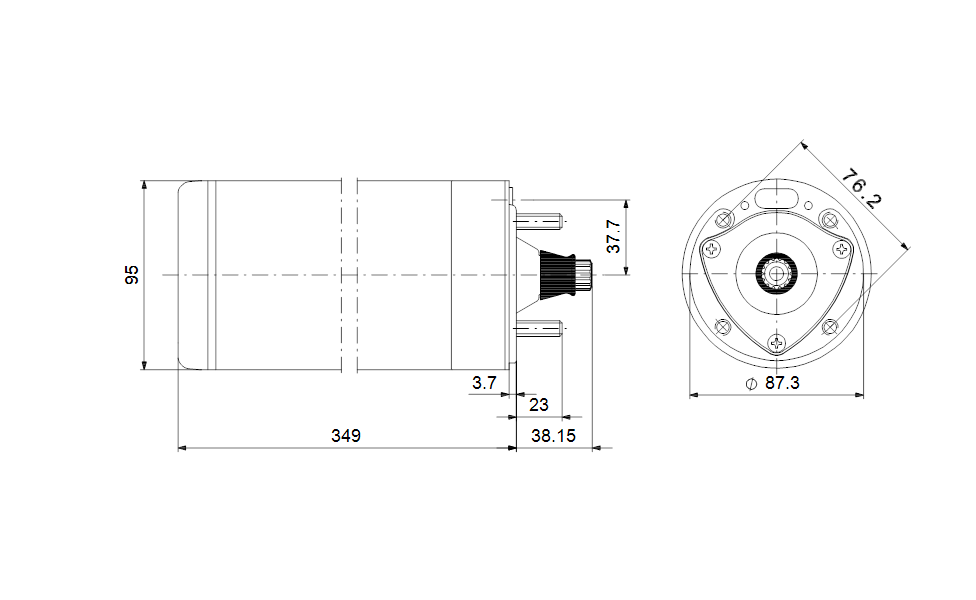

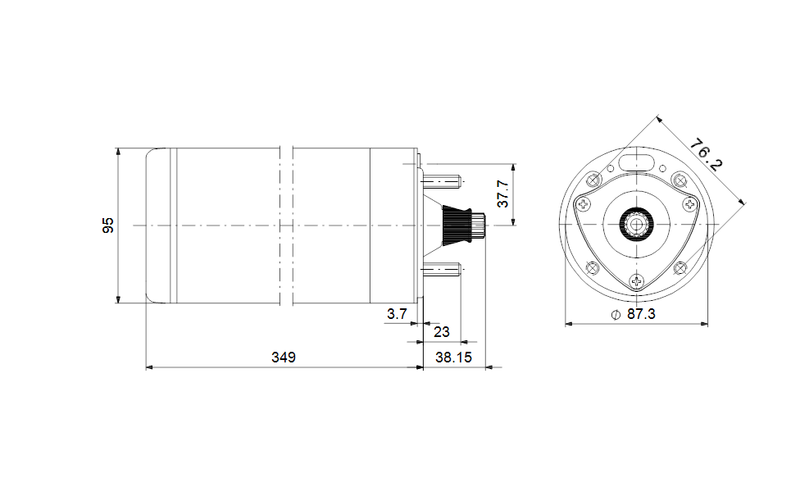

Dimensional Drawing

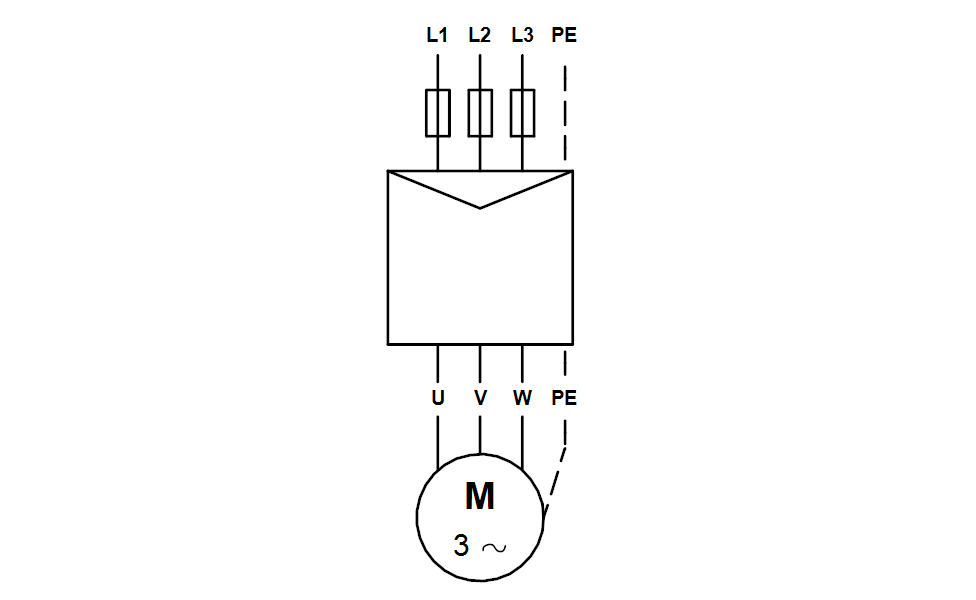

DWiring Diagram
