Grundfos 79192005 - MS 402 | Submersible Motor | High Efficiency

GRUNDFOSSKU: 79192005

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

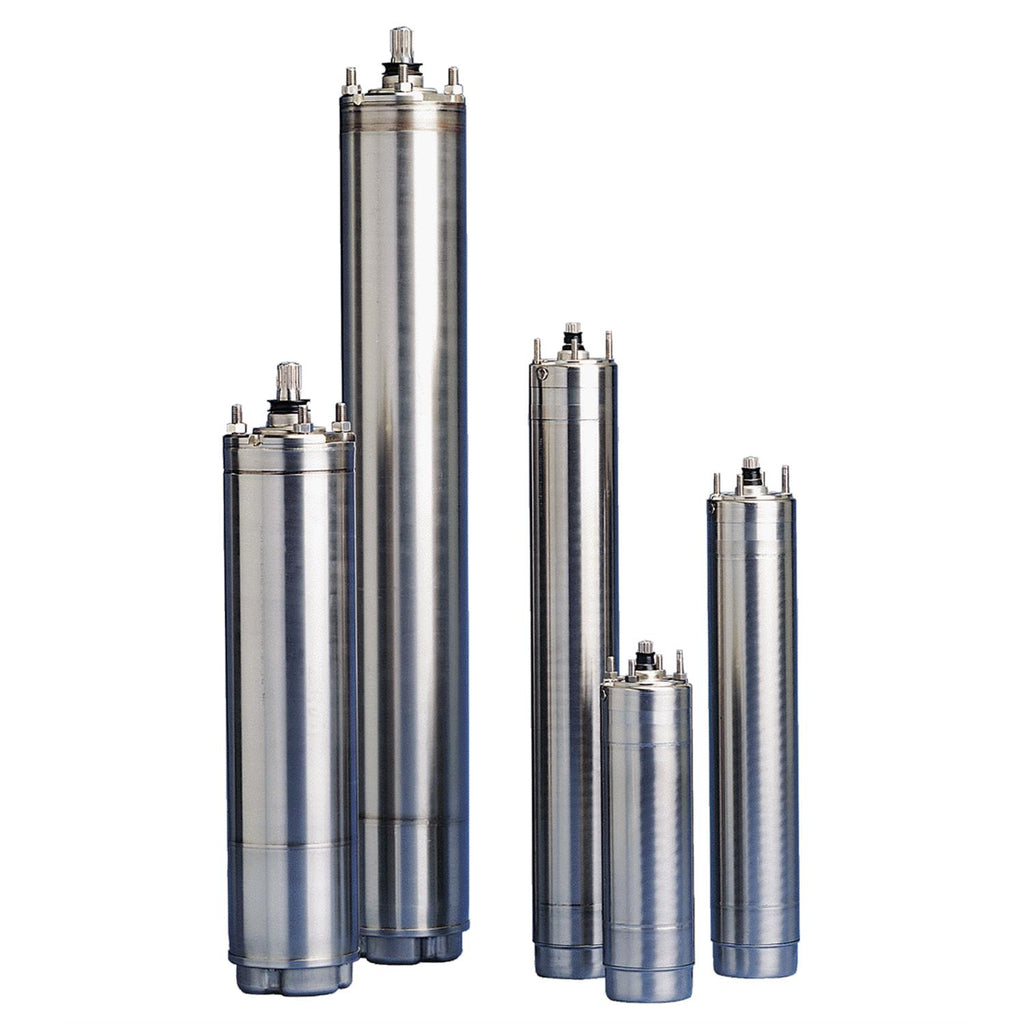

This Grundfos 79192005 - MS 402 submersible motor is a high-efficiency replacement motor designed for use with compatible MS-series submersible pumps and control assemblies; it is intended for industrial and commercial operators seeking reliable motor performance.

Key features

  • OEM-manufactured Grundfos MS 402 motor for direct-fit replacement and serviceability
  • Designed for MS-series pump controls and pump motor applications
  • High-efficiency design reduces energy use and supports longer operating intervals

Applications

Typical uses include industrial pumping systems, water handling and transfer, pump system maintenance and repairs, and integration with pump control panels where MS-series components are specified.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 79192005

EAN 5700392329103
Applications Motors
Approvals CE
Axial load max 350 kg
Breakdown torque 280-320-350 %
Built-in motor protection NONE
Built-in temp. transmitter no
Diameter 4 inch
Enclosure class (IEC 34-5) IP68
Insulation class (IEC 85) B
Locked-rotor torque 220-250-270 %
Mains frequency 50 Hz
Material Pricing Group 26
Max liquid t at 0.15 m/sec 104 °F
Maximum ambient pressure 15 bar
Model B
Moment of inertia 0.015 lb ft²
Motor Stainless steel
Motor diameter 4 inch
Motor type MS402
Motor version T40
Net weight 19.6 lb
Power factor 1 0.76-0.72-0.65
Product family MS 402
Rated current 3.25-3.40-3.65 A
Rated full-load torque 1 2.729 ft lb
Rated power - P2 1.1 kW
Rated speed 2850-2860-2870 rpm
Rated voltage 3 x 380-400-415 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Shaft seal for motor LIPSEAL
Start. method direct-on-line
Starting current 480-480-470 %
Thermal protec external
Type MS402
Version T40
Voltage tolerance +6/-10 %
Winding resistance 13.90 ohm
Windings Enamelled

Motor Curves

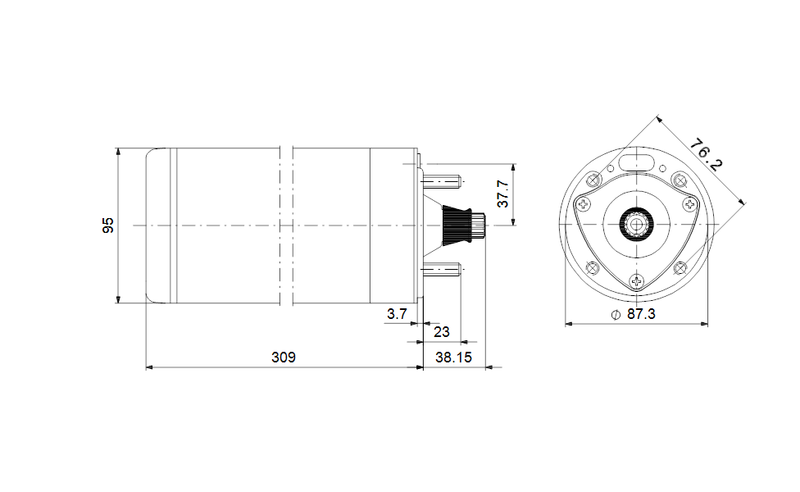

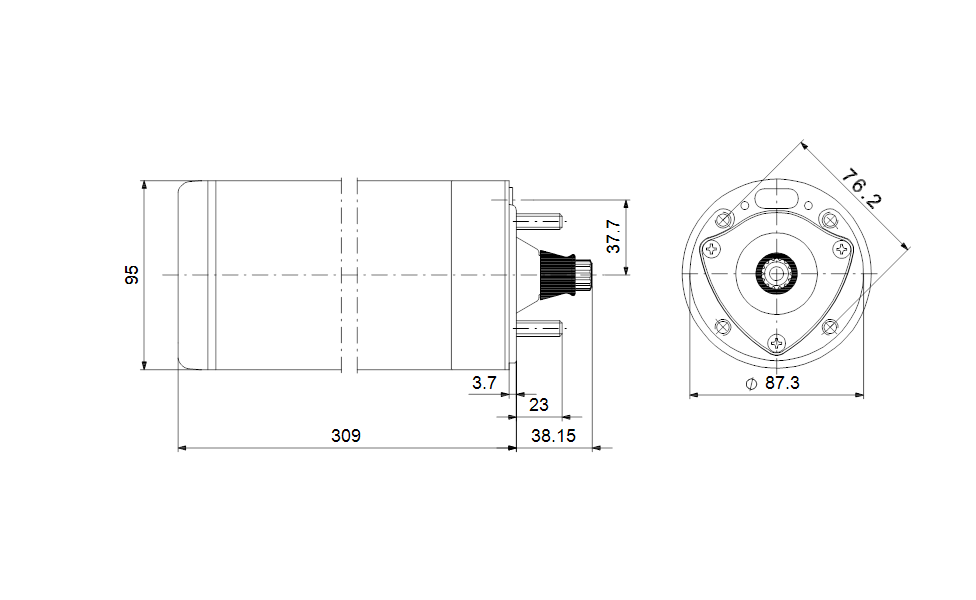

Dimensional Drawing

DWiring Diagram
