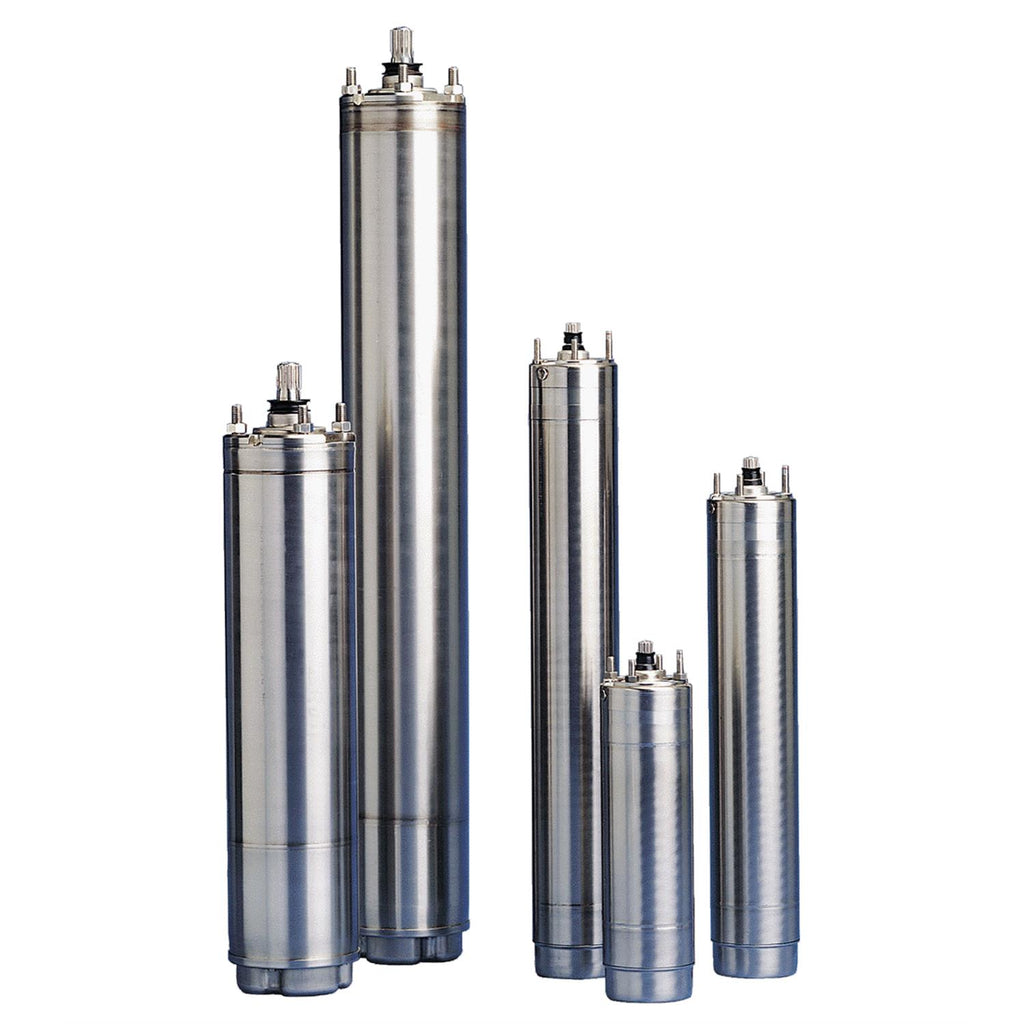

Grundfos 79092005 - MS 402 | Submersible Motor | High Efficiency

GRUNDFOSSKU: 79092005

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 79092005 - MS 402 is a submersible motor designed for industrial pump systems and control assemblies, suitable for service technicians and facilities managers who maintain Grundfos pump motors.

Key features

  • Manufactured by Grundfos for use in various industrial applications
  • Designed to integrate with Grundfos controls and accessories, including MS 402 installations
  • High-efficiency design helps reduce energy use and downtime in continuous or intermittent pumping systems

Applications

Compatible with submersible pump systems, repair and rebuild projects, control panel integrations, and industrial water handling equipment. Commonly used in commercial and light industrial settings.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 79092005

EAN 5700390647926
Applications Motors
Approvals CE
Axial load max 350 kg
Built-in motor protection NONE
Built-in temp. transmitter no
Diameter 4 inch
Enclosure class (IEC 34-5) IP68
Insulation class (IEC 85) B
Locked-rotor torque 2.5
Mains frequency 50 Hz
Material Pricing Group 26
Max liquid t at 0.15 m/sec 104 °F
Maximum ambient pressure 15 bar
Model B
Moment of inertia 0.015 lb ft²
Motor Stainless steel
Motor diameter 4 inch
Motor type MS402
Motor version T40
Net weight 19.6 lb
Power factor 1 0.7
Product family MS 402
Rated current 6.9 A
Rated power - P2 1.1 kW
Rated speed 2860 rpm
Rated voltage 3 x 200 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Shaft seal for motor LIPSEAL
Start. method direct-on-line
Starting current 4.8
Thermal protec external
Type MS402
Version T40
Voltage tolerance +10/-10 %
Winding resistance 3.48 ohm
Windings Enamelled

Motor Curves

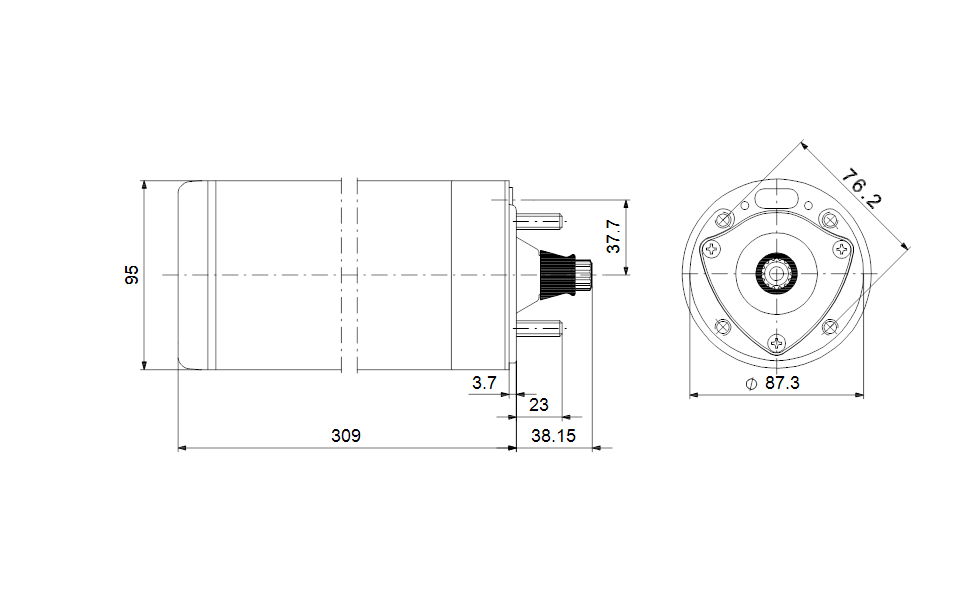

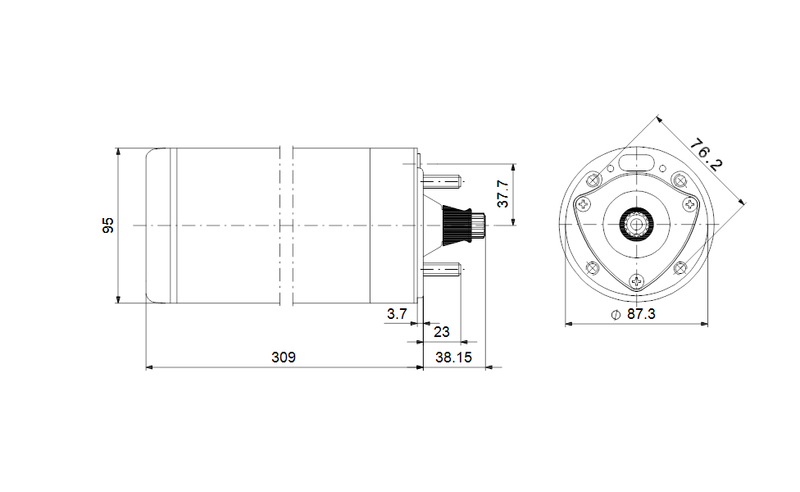

Dimensional Drawing

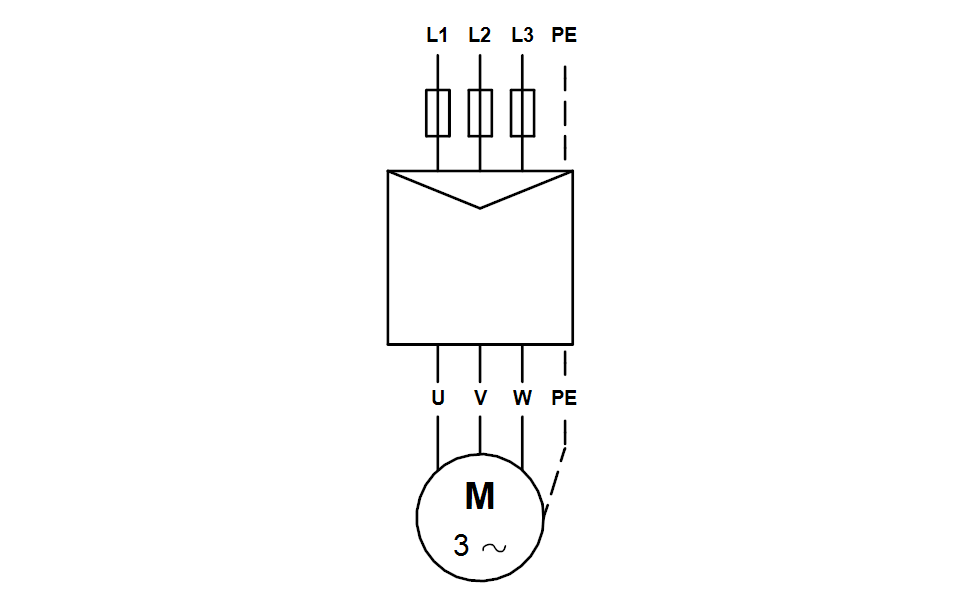

DWiring Diagram
