Grundfos 79194508 - MS 4000 | Submersible Motor | High Efficiency

GRUNDFOSSKU: 79194508

Price:
Sale price$1,728.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

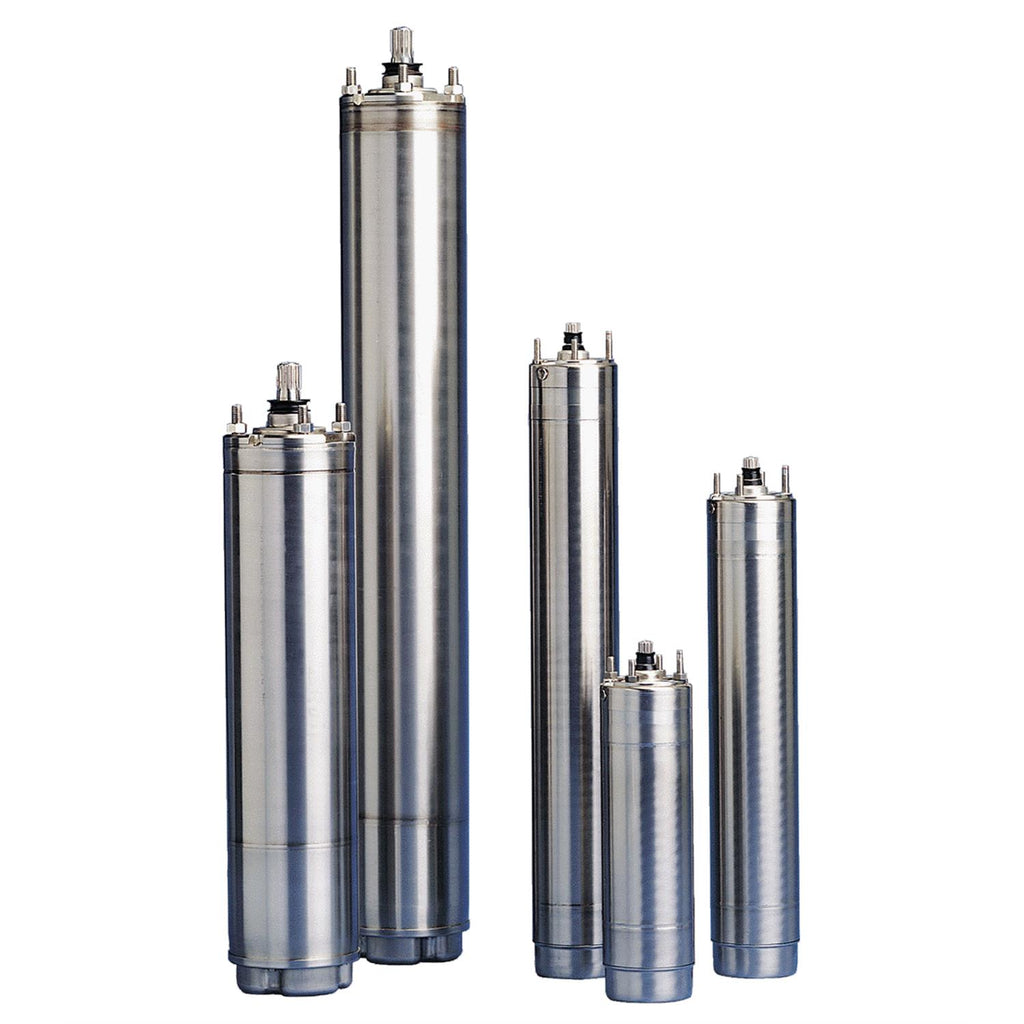

The Grundfos 79194508 MS 4000 is a high-efficiency submersible motor designed for use with MS-series pump systems and pump motor replacements, suited to technicians and facilities managing industrial pumping equipment.

Key features

  • Submersible motor construction for submerged pump installations
  • Designed for the MS 4000 series and compatible control accessories
  • High-efficiency operation reduces energy use and operating costs

Applications

Replacement motor for MS-series pumps, integration with Grundfos controls and accessories, and general industrial pumping tasks where a submersible motor is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 79194508

EAN 5700392329318
Applications Motors
Approvals CE
Axial load max 450 kg
Built-in motor protection NONE
Built-in temp. transmitter no
Diameter 4 inch
Enclosure class (IEC 34-5) IP68
Insulation class (IEC 85) F
Locked-rotor torque 150-170-190 %
Mains frequency 50 Hz
Material Pricing Group 26
Maximum ambient pressure 60 bar
Maximum liquid temperature 104 °F
Model B
Moment of inertia 0.04 lb ft²
Motor Stainless steel
Motor diameter 4 inch
Motor type MS4000
Motor version T40
Net weight 39.7 lb
Power factor 1 0.82-0.77-0.73
Product family MS 4000
Rated current 7.70-7.85-8.10 A
Rated power - P2 3 kW
Rated speed 2850-2865-2875 rpm
Rated voltage 3 x 380-400-415 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Shaft seal for motor HM/CER
Start. method direct-on-line
Starting current 460-490-500 %
Thermal protec external
Type MS4000
Version T40
Voltage tolerance +6/-10 %
Winding resistance 6.20 ohm
Windings Enamelled

Motor Curves

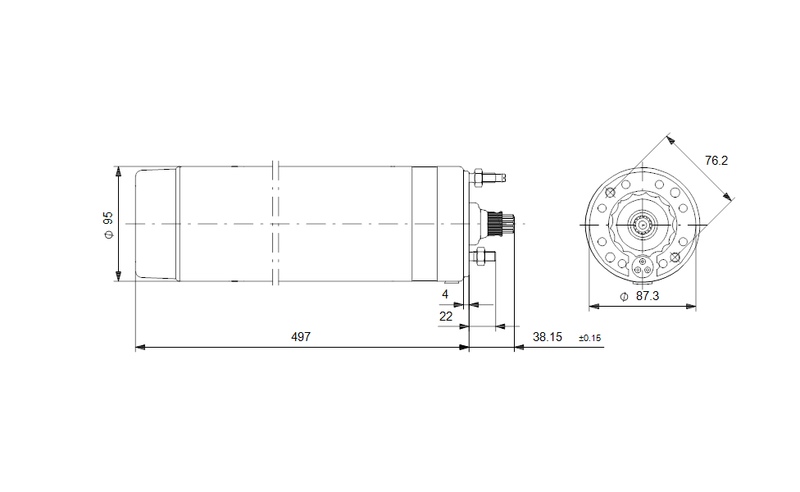

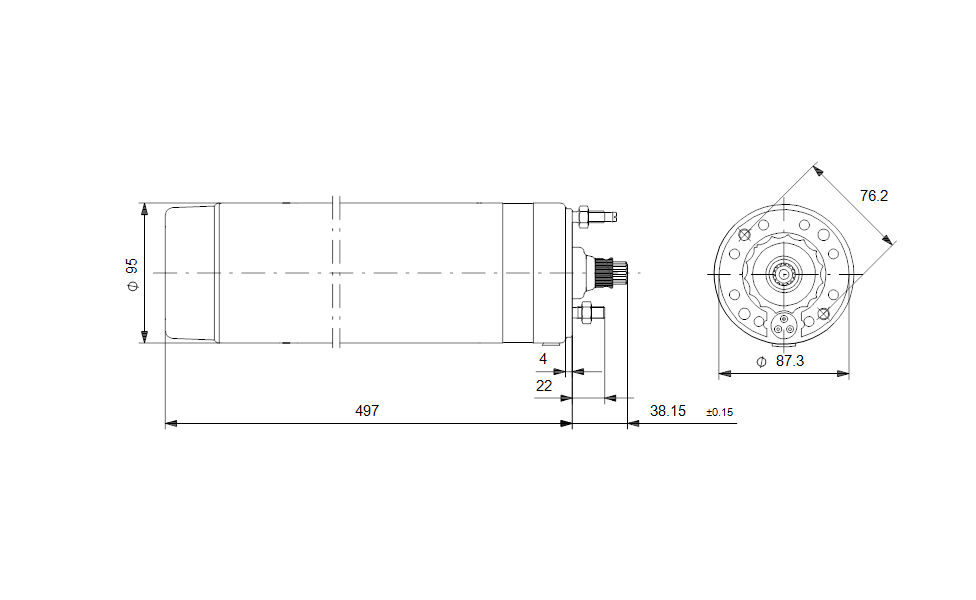

Dimensional Drawing

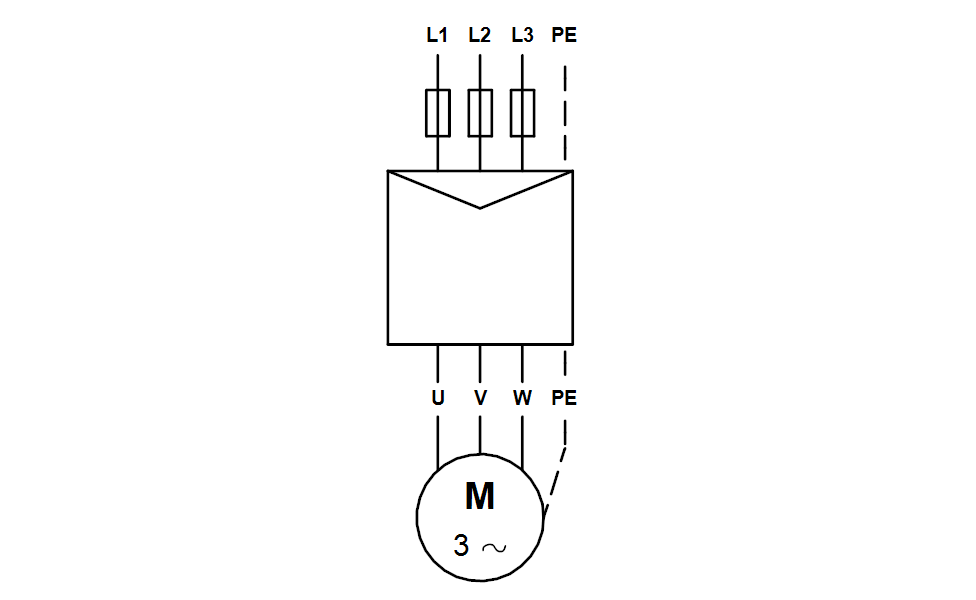

DWiring Diagram
