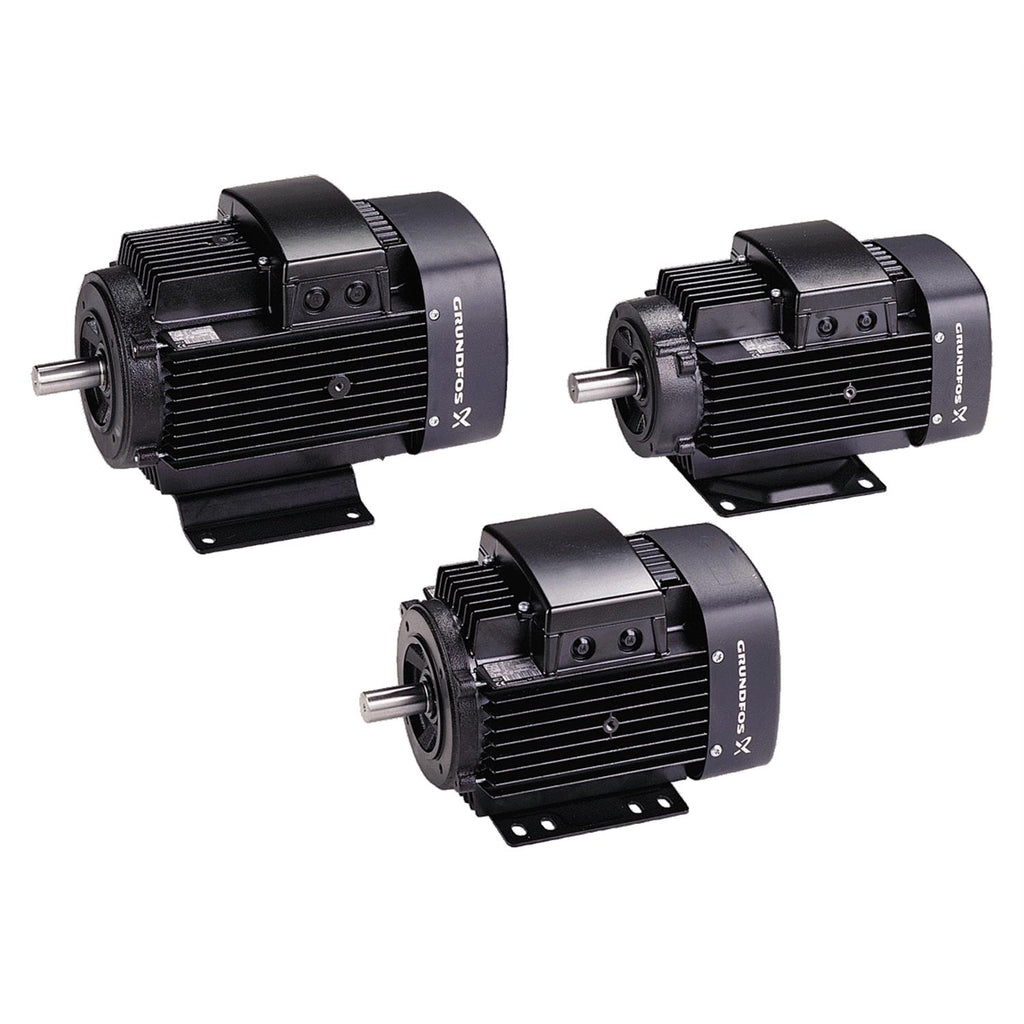

Grundfos 85900060 - ML71BA | Motor | High Efficiency

GRUNDFOSSKU: 85900060

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
ML71BA · Grundfos Accessory / Spare Part / Control
ACC0.75HP220-277D/380-480YV3.0-Phase60 HzNEMA Premium / IE3 60HzIP55 Dust/Jetting

The Grundfos 85900060 (ML71BA) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Rated 220-277D/380-480YV, 3.0-Phase, 60 Hz.

Power
0.75HP
Voltage
220-277D/380-480YV
Phase
3.0-Phase
Frequency
60 Hz
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
NEMA Premium / IE3 60Hz motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — ML71BA
Series: ACC
Model Code: ML71BA
Technical Specifications
Model Number 85900060
Product Series ACC
Series Description Grundfos Accessory / Spare Part / Control
Power 0.75HP
Voltage 220-277D/380-480YV
Phase 3.0-Phase
Frequency 60 Hz
Motor Speed 3370-3460rpm
Full Load Current 2,40-2,28/1,38-1,32A
Motor Type 71BA
Motor Efficiency Class NEMA Premium / IE3 60Hz
Motor Efficiency 76.8-79.1%
Insulation Class F
Protection Class (IP) IP55 Dust/Jetting
Max Ambient Temperature 140°F
Min Ambient Temperature -22°F
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 220-277D/380-480YV, 3.0-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature per nameplate or max ambient temperature 140°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — ML71BA
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5700394469883
Applications Motors
Approvals for motor WEEE
Bearing insulation type N-end STEEL BEARING
Breakdown torque 290-350 %
Built-in motor protection NONE
Cable gland entry 2xM20x1
Colour/Type NCS 9000 gloss 40+-10 /E-coat
Cooling IC 411
Diameter 0.55 in
Enclosure class (IEC 34-5) 55 Dust/Jetting
Energy approvals for motor CE
Environmental approvals for motor WEEE
Flange size for motor FT85
IE Efficiency class IE3
Insulation class (IEC 85) F
Length of shaft end 1.18 in
Locked-rotor torque 270-320 %
Mains frequency 50 Hz
Material Pricing Group 3X
Maximum current consumption 2.75/1.58 A
Model B3
Moment of inertia 0.013 lb ft²
Motor WEEE
Motor efficiency at 1/2 load 77.5-73.3 %
Motor efficiency at 3/4 load 79.8-77.8 %
Motor efficiency at full load 1 77.8-77.8 %
Motor standard IEC
Motor type 71BA
Mount. design. acc. IEC 34-7 IM B14/V18
Net weight 13.2 lb
Number of poles 2
Power factor 1 0.84-0.76
Product family MG, ML
R1 ohm 13.4 ohm
Range of ambient temperature -22 .. 140 °F
Rated current 2.50/1.44 A
Rated full-load torque 1 1.136 ft lb
Rated power - P2 0.55 kW
Rated speed 2800-2840 rpm
Rated voltage 3 x 220-240D/380-415Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Service factor 1
Shaft diameter 0.55 in
Standard IEC
Starting current 480-520 %
Thermal protec external
Tropic protec no
Type NCS 9000 gloss 40+-10 /E-coat
Winding 2 PHASE 2
Winding 3 PHASE 3

Motor Curves

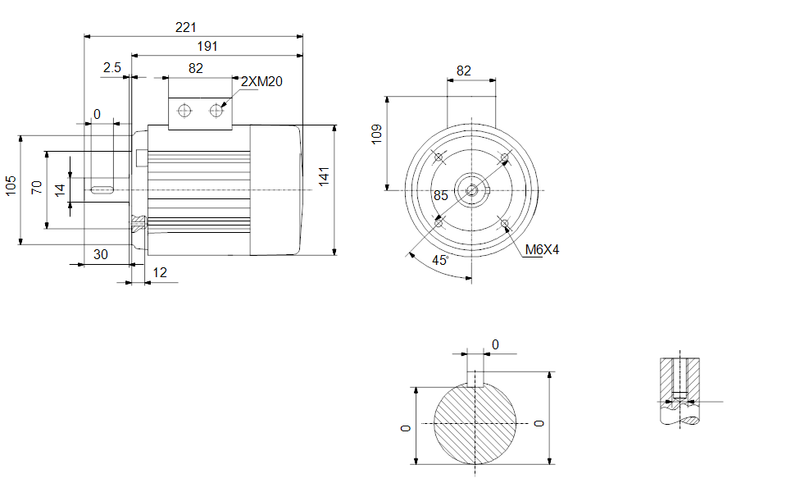

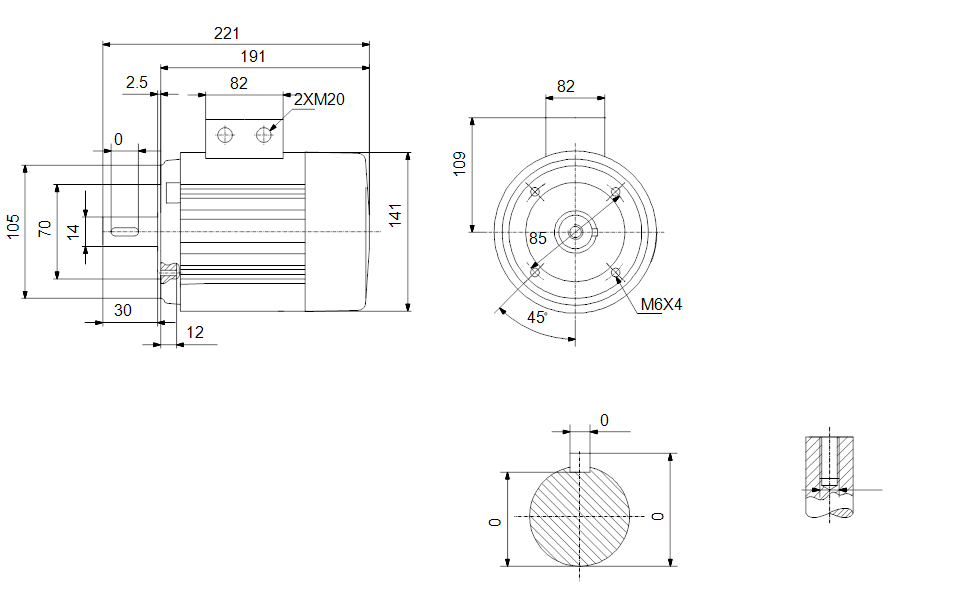

Dimensional Drawing

DWiring Diagram
