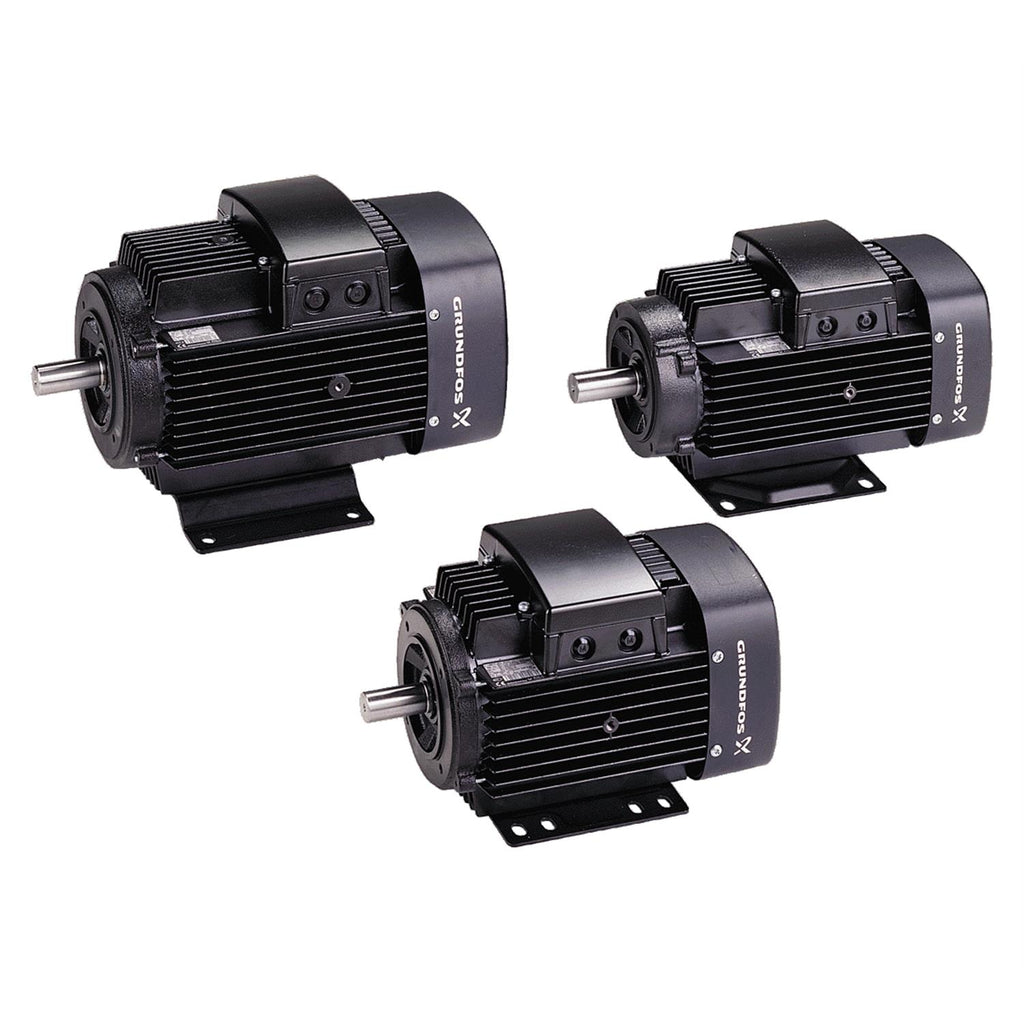

Grundfos 85903414 - ML180AA | Motor | High Efficiency

GRUNDFOSSKU: 85903414

Price:
Sale price$7,481.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

ML180AA The motor is a 3-phase AC standard motor. Grundfos Blueflux(R) technology represents the best from Grundfos within energy efficient motors and variable frequency drives (MG motors, MGE motors and CUE drives). Grundfos Blueflux(R) solutions either meet or exceed legislative requirements such as the EuP IE3 grade.

EAN 5700311368183
Applications Motors
Approvals for motor CE
Bearing insulation type N-end STEEL BEARING
Breakdown torque 2.9
Built-in motor protection PTC
Cable gland entry 2xM20 + 4xM40 knock out
Colour/Type NCS 9000 gloss 40+-10 /E-coat
Cooling TEFC
Diameter 1.63 in
Enclosure class (IEC 34-5) 55 Dust/Jetting
Energy approvals for motor CE
Flange size for motor 286TC
IE Efficiency class IE3
Insulation class (IEC 85) F
Length of shaft end 3.25 in
Locked-rotor torque 2.5
Lubricant type UNIREX N3
Mains frequency 50 Hz
Material Pricing Group 3X
Maximum current consumption 43.5 A
Model F1
Moment of inertia 1.542 lb ft²
Motor 286TC
Motor efficiency at 1/2 load 0.935
Motor efficiency at 3/4 load 0.93
Motor efficiency at full load 1 0.927
Motor standard NEMA
Motor type 180AA
Mount. design. acc. IEC 34-7 NEMA type C
Net weight 251.0 lb
Number of poles 2
Power factor 1 0.91
Product family MG, ML
R1 ohm 0.460 ohm
Range of ambient temperature -22 .. 104 °F
Rated current 39.5 A
Rated full-load torque 1 61.0-60.5 Nm
Rated power - P2 22 kW
Rated speed 2930 rpm
Rated voltage 3 x 400D V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Service factor 1.15
Shaft diameter 1.63 in
Standard NEMA
Starting current 7.5
Temperature 1 4000 h / 104 °F
Thermal protec external
Tropic protec no
Type NCS 9000 gloss 40+-10 /E-coat
Winding 2 PHASE 2
Winding 3 PHASE 3
Lubricant quan. 15 g

Motor Curves

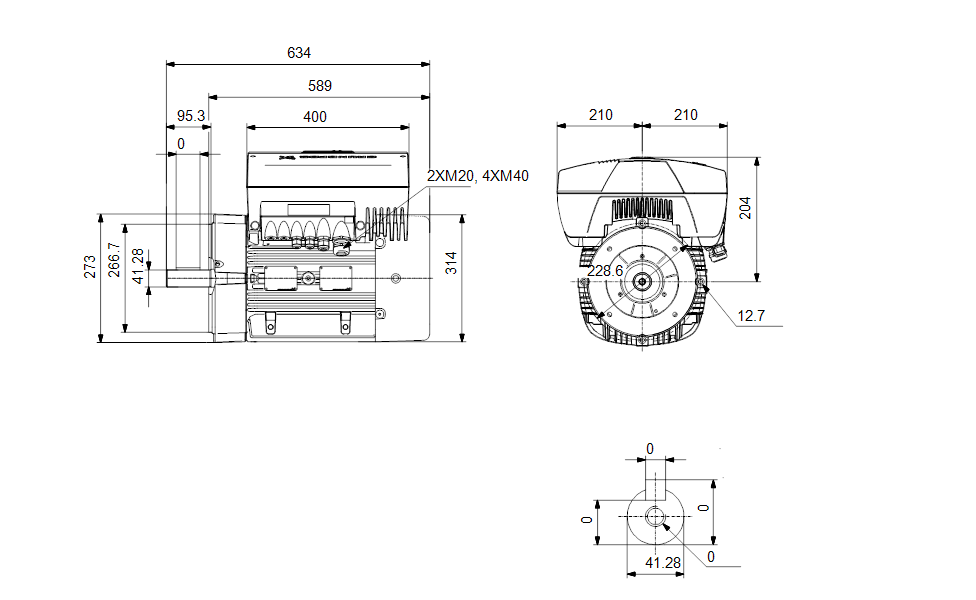

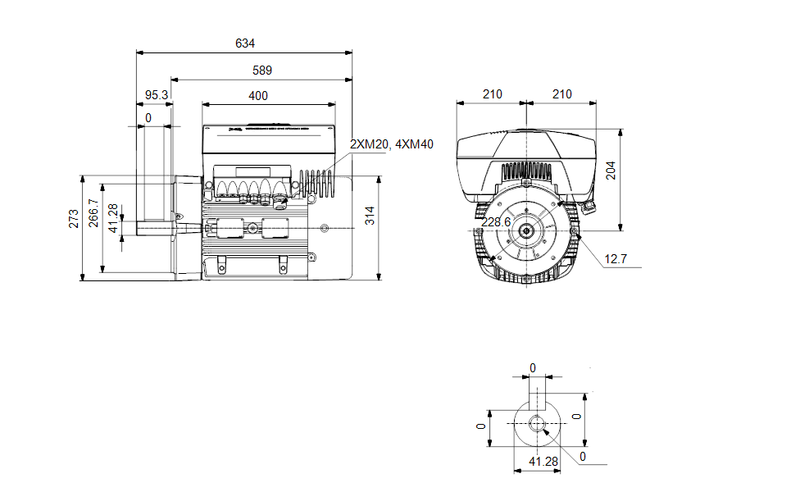

Dimensional Drawing

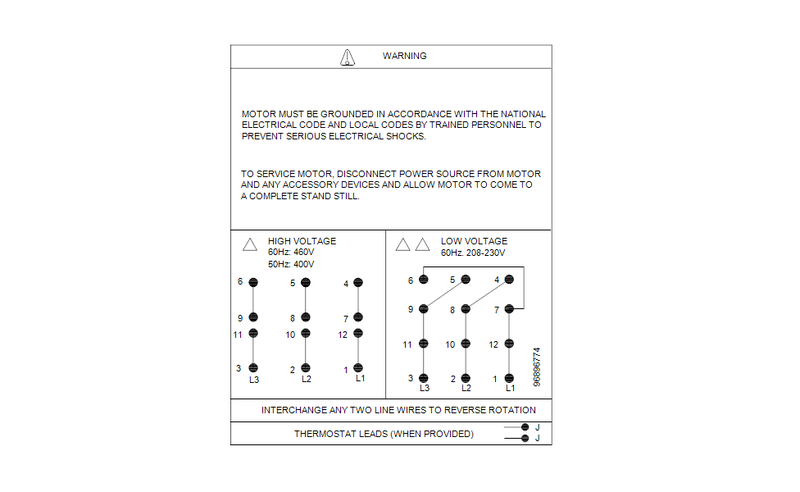

DWiring Diagram
