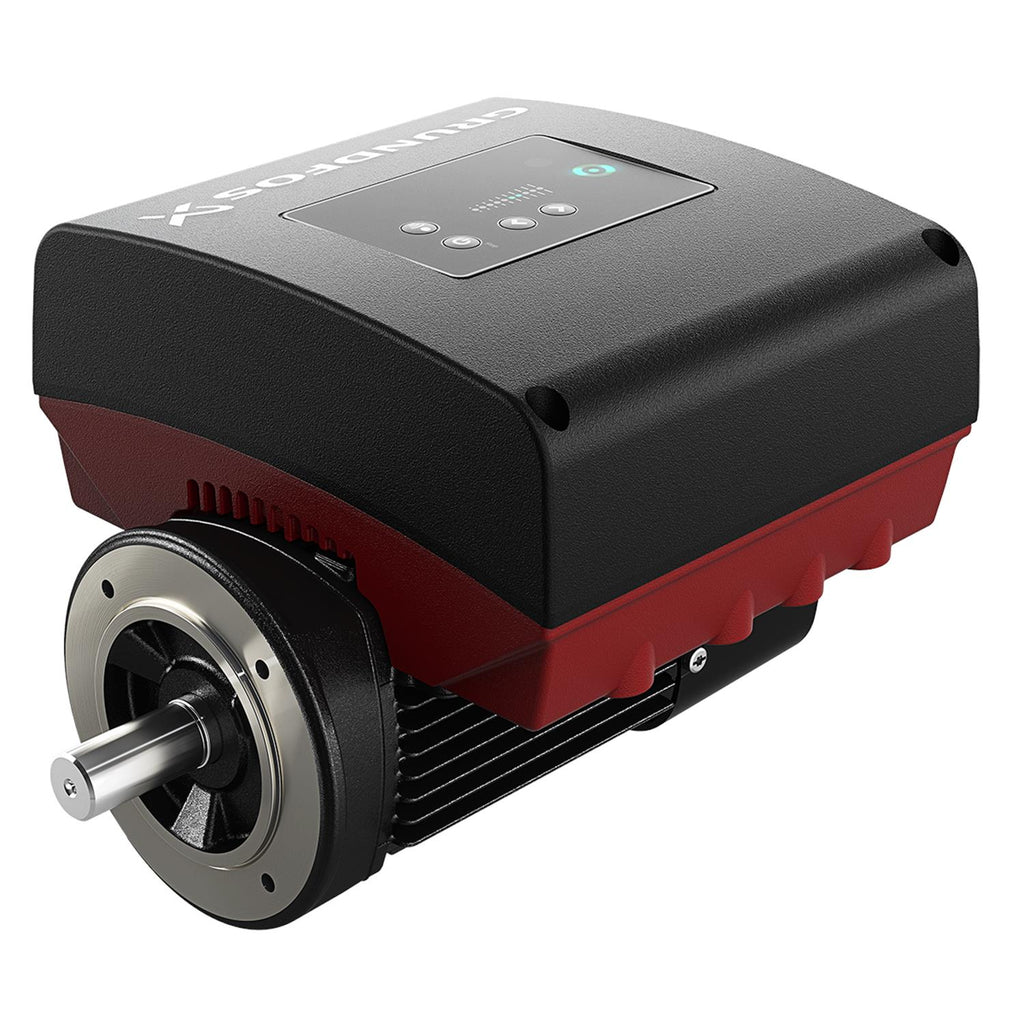

Grundfos 98648663 | Three‑Phase Motor | MGE80B | 1.1 kW | FT100 B14 Mount | Speed‑Control Motor

GRUNDFOSSKU: 98648663

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 98648663 is a three-phase MGE80B speed-control motor designed to fit FT100 B14 mounts and used by technicians and maintenance teams in industrial pump systems.

Key features

  • Manufactured by Grundfos for industrial applications
  • Part of Controls & Accessories and pump motor assemblies (Mge Mle)
  • Speed-control capability for smoother operation and improved process control

Applications

Suitable for use in commercial and industrial pumping systems where three-phase speed control and a B14 flange mount are required; often used in circulation, transfer, and process support applications.

Compatibility note: Match the exact model or SKU before ordering. For help, call 781-281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98648663

EAN 5711498886339
Applications Motors
Approvals for motor WEEE
Bearing insulation type N-end STEEL BEARING
Built-in motor protection ELEC
Cable gland entry 4xM20 blind plug
Colour/Type NCS 9000 gloss 40+-10 /E-coat
Com. module NONE
Config. file no 98373205
Control panel HMI300 - Graphical
Cooling IC 411
Enclosure class (IEC 34-5) IP55
Energy approvals for motor CE
Environmental approvals for motor WEEE
Flange size for motor FT100
Function Module FM300 - Advanced
IE Efficiency class IE5
Insulation class (IEC 85) F
Mains frequency 50 Hz
Material Pricing Group 25
Model I
Moment of inertia 0.008 lb ft²
Motor WEEE
Motor efficiency at full load 1 0.891
Motor standard IEC
Motor type 80B
Mount. design. acc. IEC 34-7 IM B14/V18
Net weight 24.3 lb
Power factor 1 0.89-0.79
Product family MGE, MLE
Range of ambient temperature -4 .. 122 °F
Rated current 2.20-1.90 A
Rated full-load torque 1 2.655 ft lb
Rated power - P2 1.1 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 380-500 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Standard IEC
Thermal protec ELEC
Type NCS 9000 gloss 40+-10 /E-coat

Motor Curves

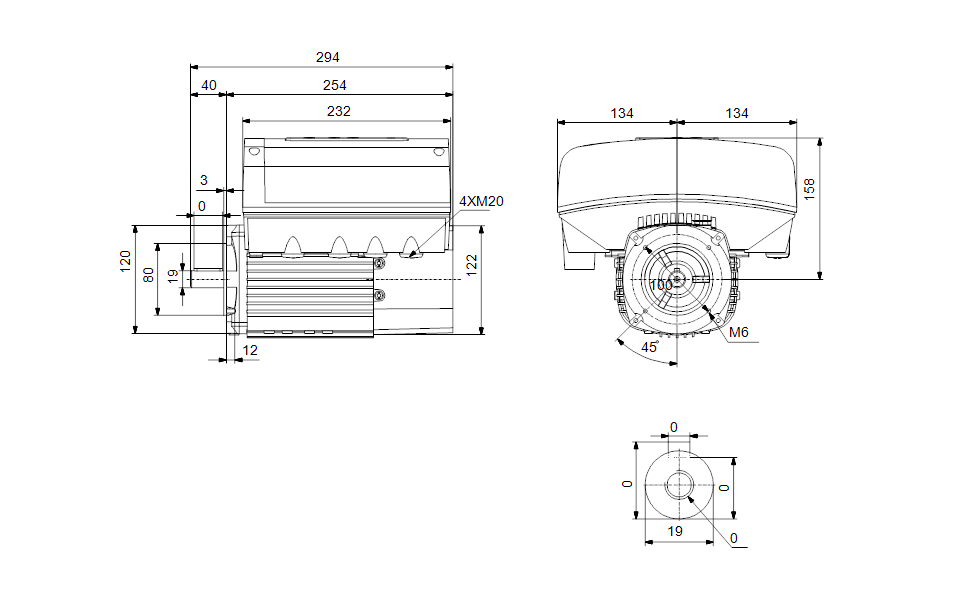

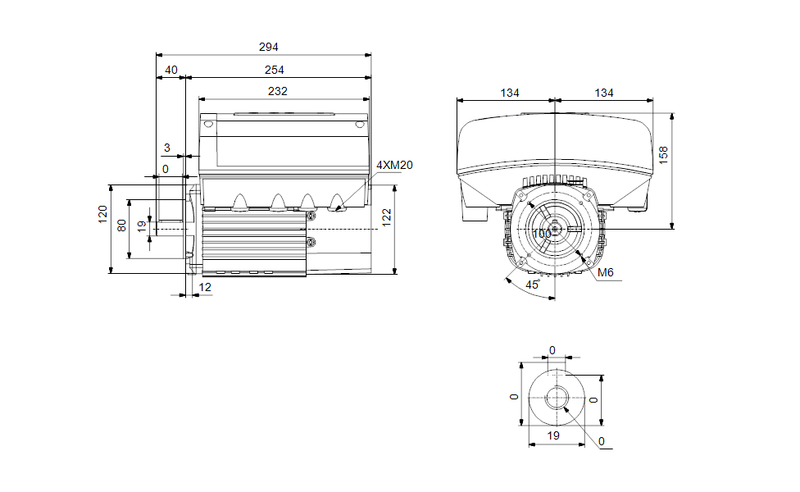

Dimensional Drawing

DWiring Diagram
