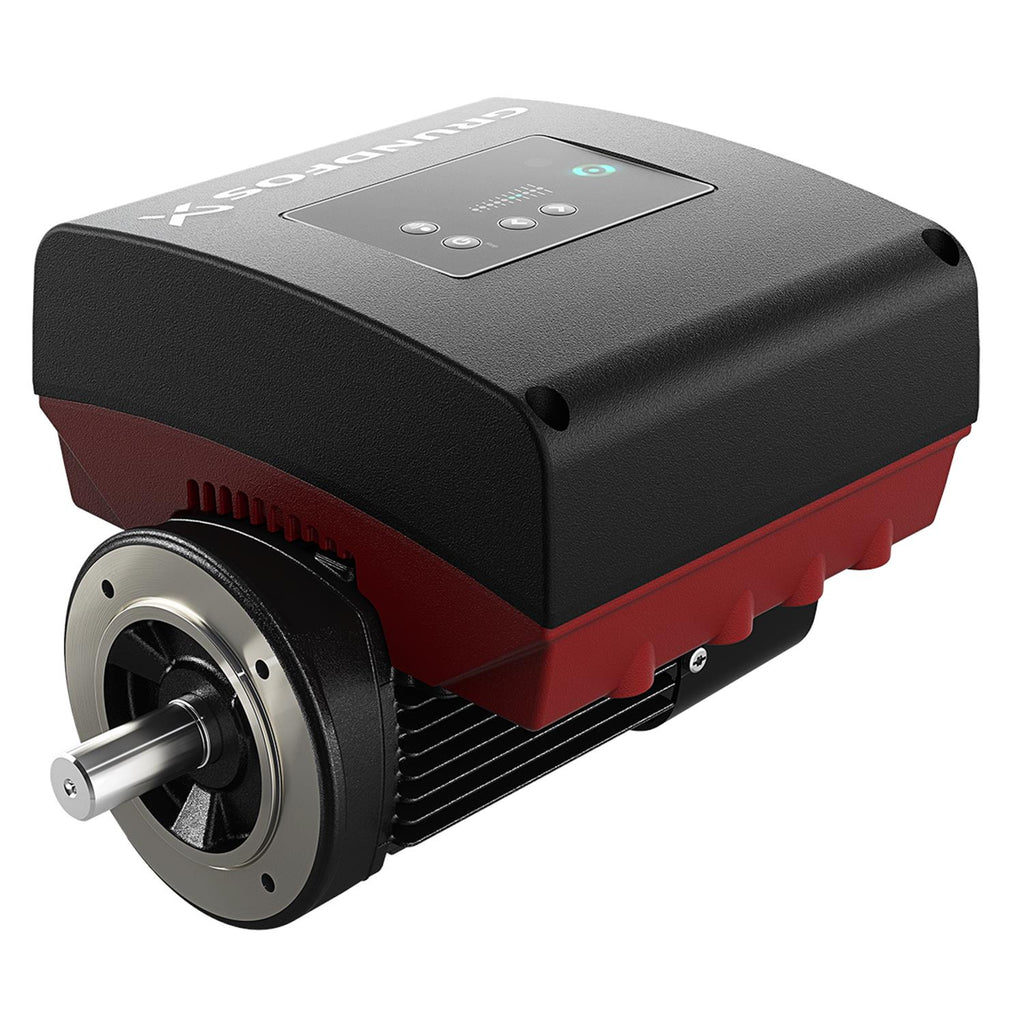

Grundfos 98190219 - MGE80B

GRUNDFOSSKU: 98190219

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
MGE80B · Grundfos Accessory / Spare Part / Control
ACC1.5HP380-500V3-Phase50, 60 HzIE5IP55

The Grundfos 98190219 (MGE80B) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Rated 380-500V, 3-Phase, 50, 60 Hz.

Power
1.5HP
Voltage
380-500V
Phase
3-Phase
Frequency
50, 60 Hz
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Ultra-Premium Efficiency
IE5 motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — MGE80B
Series: ACC
Model Code: MGE80B
Technical Specifications
Model Number 98190219
Product Series ACC
Series Description Grundfos Accessory / Spare Part / Control
Power 1.5HP
Voltage 380-500V
Phase 3-Phase
Frequency 50, 60 Hz
Motor Speed 360-4000rpm
Full Load Current 2,2-1,9A
Motor Type 80B
Motor Protection ELEC
Motor Efficiency Class IE5
Motor Efficiency 89.1%
Insulation Class F
Protection Class (IP) IP55
Max Ambient Temperature 122°F
Min Ambient Temperature -4°F
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 380-500V, 3-Phase, 50, 60 Hz.
Temperature limits Do not exceed max fluid temperature per nameplate or max ambient temperature 122°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — MGE80B
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5711491196510
Applications Motors
Approvals for motor WEEE
Bearing insulation type N-end STEEL BEARING
Built-in motor protection ELEC
Cable gland entry 4xM20 blind plug
Colour/Type NCS 9000 gloss 40+-10 /E-coat
Com. module NONE
Config. file no 98373205
Control panel HMI200 - Standard
Cooling IC 411
Enclosure class (IEC 34-5) IP55
Energy approvals for motor CE
Environmental approvals for motor WEEE
Flange size for motor FT100
Function Module FM300 - Advanced
IE Efficiency class IE5
Insulation class (IEC 85) F
Mains frequency 50 Hz
Material Pricing Group 3Y
Model I
Moment of inertia 0.0004 kg m²
Motor WEEE
Motor efficiency at full load 1 0.891
Motor standard IEC
Motor type 80B
Mount. design. acc. IEC 34-7 IM B14/V18
Net weight 11.0 kg
Power factor 1 0.89-0.79
Product family MGE, MLE
Range of ambient temperature -20 .. 50 °C
Rated current 2.20-1.90 A
Rated full-load torque 1 3.6 Nm
Rated power - P2 1.1 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 380-500 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Standard IEC
Thermal protec ELEC
Type NCS 9000 gloss 40+-10 /E-coat

Motor Curves

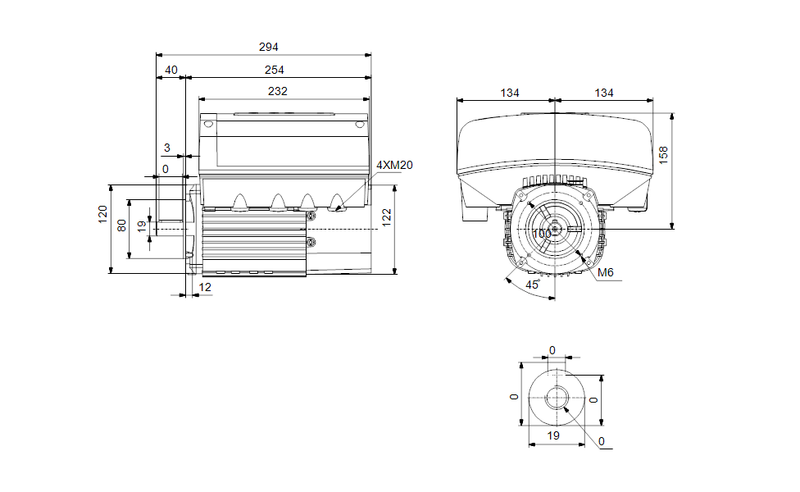

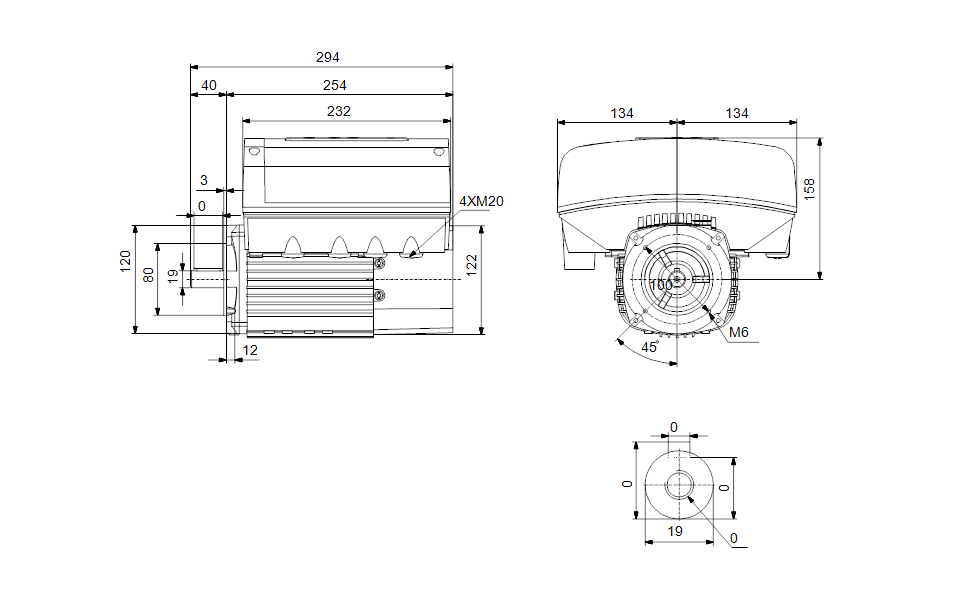

Dimensional Drawing

DWiring Diagram
