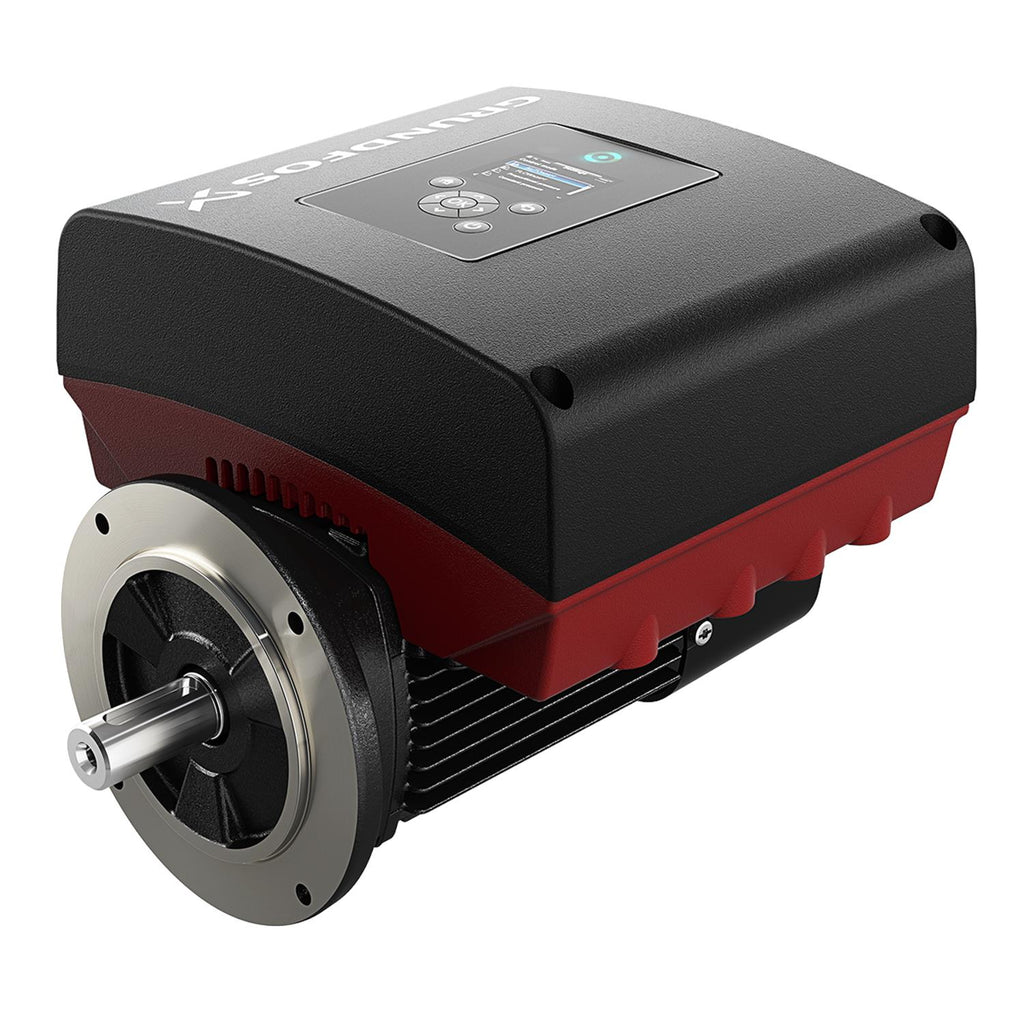

Grundfos 99138041 - MGE71A

GRUNDFOSSKU: 99138041

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 99138041 - MGE71A is a replacement control accessory used with Grundfos pump systems, intended for industrial maintenance and service. Owners, technicians, and facility engineers use this component when refurbishing or upgrading pump controls.

Key features

  • Manufactured by Grundfos for industrial pump system applications
  • Related to Controls & Accessories and pump motor control configurations
  • Provides reliable control functionality to help restore system performance

Applications

Typical uses include control panel repairs, pump motor replacements, routine maintenance, and OEM system service for industrial and commercial pumping installations.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99138041

EAN 5712607451844
Applications Motors
Approvals for motor WEEE
Bearing insulation type N-end STEEL BEARING
Built-in motor protection ELEC
Cable gland entry 4xM20 blind plug
Colour/Type NCS 9000 gloss 40+-10 /E-coat
Com. module NONE
Config. file no 98373210
Control panel HMI200 - Standard
Cooling IC 411
Enclosure class (IEC 34-5) IP55
Energy approvals for motor CE
Environmental approvals for motor WEEE
Flange size for motor 56C
Function Module FM300 - Advanced
IE Efficiency class IE5
Insulation class (IEC 85) F
Mains frequency 50 Hz
Material Pricing Group 25
Model I
Moment of inertia 0.006 lb ft²
Motor WEEE
Motor efficiency at full load 1 0.868
Motor standard IEC
Motor type 71A
Mount. design. acc. IEC 34-7 NEMA type C
Net weight 26.5 lb
Power factor 1 0.76-0.61
Product family MGE, MLE
Range of ambient temperature -4 .. 122 °F
Rated current 1.35-1.30 A
Rated full-load torque 1 0.959 ft lb
Rated power - P2 0.55 kW
Rated speed 480-5900 rpm
Rated voltage 3 x 380-500 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Standard IEC
Thermal protec ELEC
Type NCS 9000 gloss 40+-10 /E-coat

Motor Curves

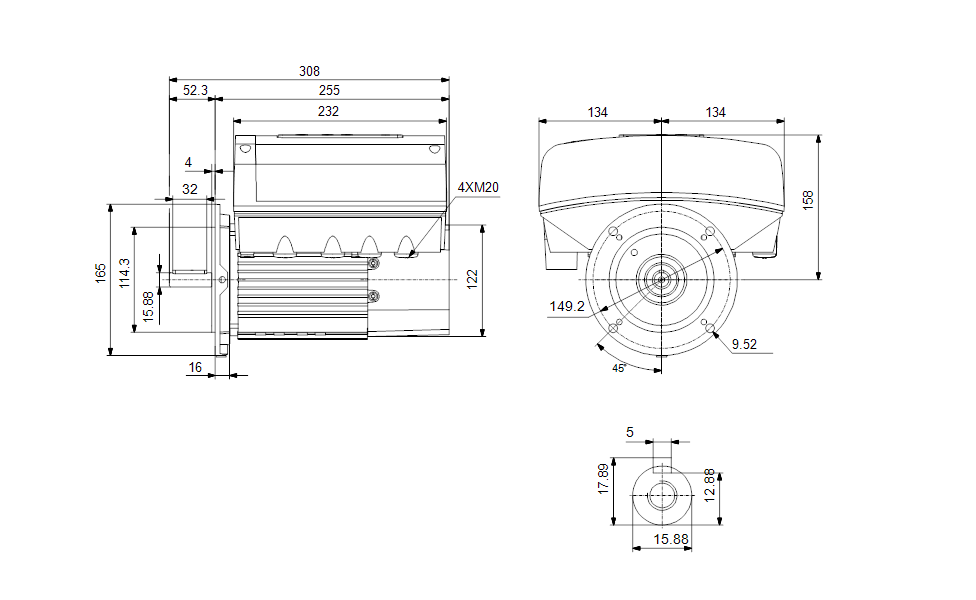

Dimensional Drawing

DWiring Diagram
