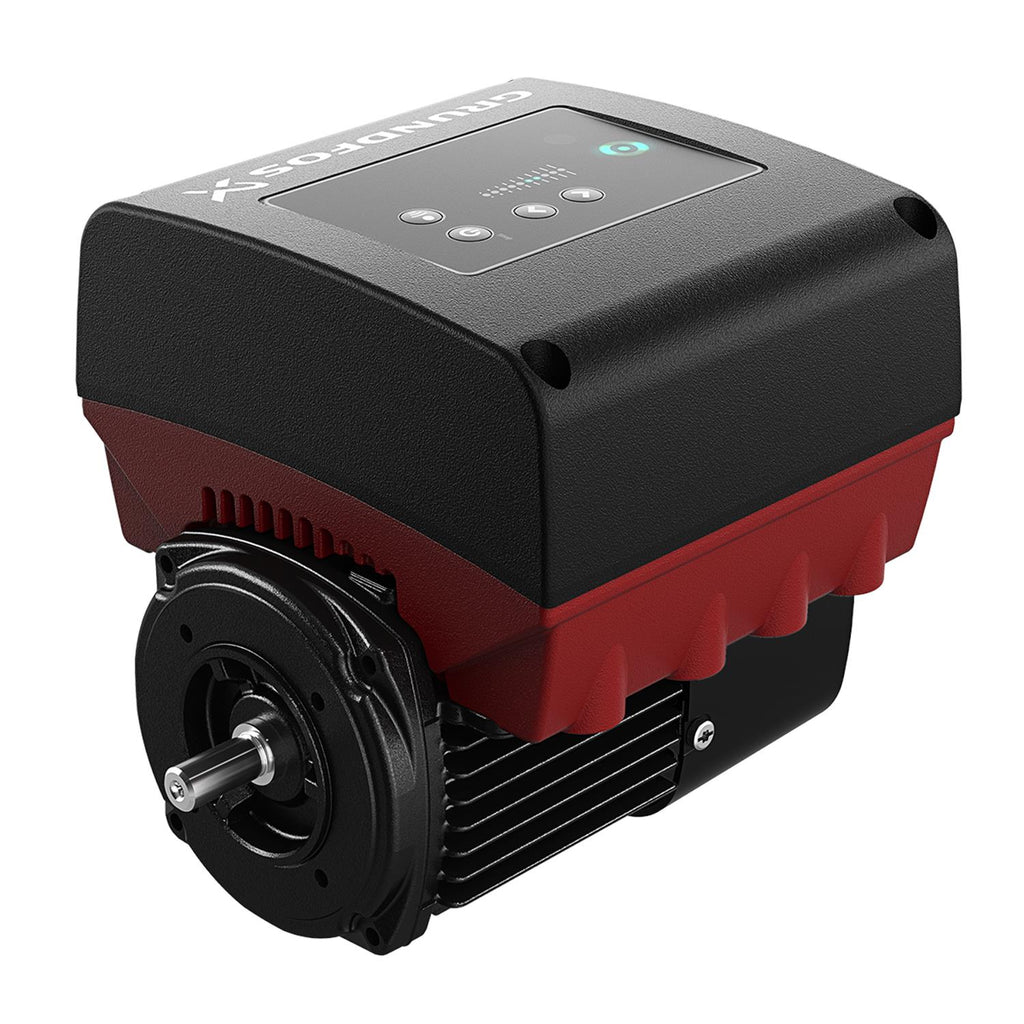

Grundfos 98248246 - MGE71A

GRUNDFOSSKU: 98248246

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 98248246 - MGE71A control module for Grundfos systems, suited for industrial control and pump accessory installations used by service technicians and facility engineers.

Key features

  • Manufactured by Grundfos for industrial control and accessory applications
  • Fits within the Grundfos Controls & Accessories and Mge Mle product families
  • Provides reliable control interface to simplify installation and reduce downtime

Applications

Typical uses include pump control panels, retrofit accessory upgrades, and integration with pump motor control systems in commercial and light industrial facilities.

Compatibility note: Match the exact model or SKU before ordering. For help, call 781-281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98248246

EAN 5711492052198
Applications Motors
Approvals for motor WEEE
Bearing insulation type N-end STEEL BEARING
Built-in motor protection ELEC
Cable gland entry 4xM20 blind plug
Colour/Type NCS 9000 gloss 40+-10 /E-coat
Com. module NONE
Config. file no 98372141
Control panel HMI200 - Standard
Cooling IC 411
Enclosure class (IEC 34-5) IP55
Energy approvals for motor CE
Environmental approvals for motor WEEE
Flange size for motor FT85
Function Module FM300 - Advanced
IE Efficiency class IE5
Insulation class (IEC 85) F
Mains frequency 50 Hz
Material Pricing Group 3X
Model H
Moment of inertia 0.006 lb ft²
Motor WEEE
Motor efficiency at full load 1 0.853
Motor standard IEC
Motor type 71A
Mount. design. acc. IEC 34-7 IM B14/V18
Net weight 19.8 lb
Power factor 1 0.98
Product family MGE, MLE
Range of ambient temperature -4 .. 122 °F
Rated current 3.45-2.90 A
Rated full-load torque 1 1.328 ft lb
Rated power - P2 0.55 kW
Rated speed 360-4000 rpm
Rated voltage 1 x 200-240 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Standard IEC
Thermal protec ELEC
Type NCS 9000 gloss 40+-10 /E-coat

Motor Curves

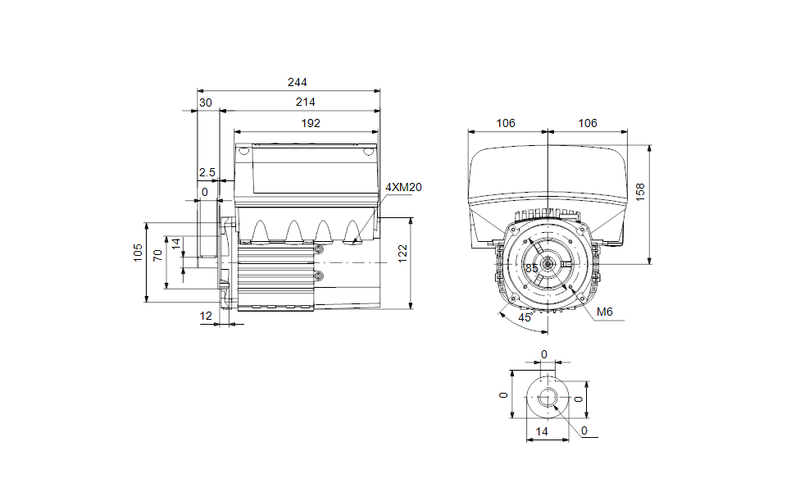

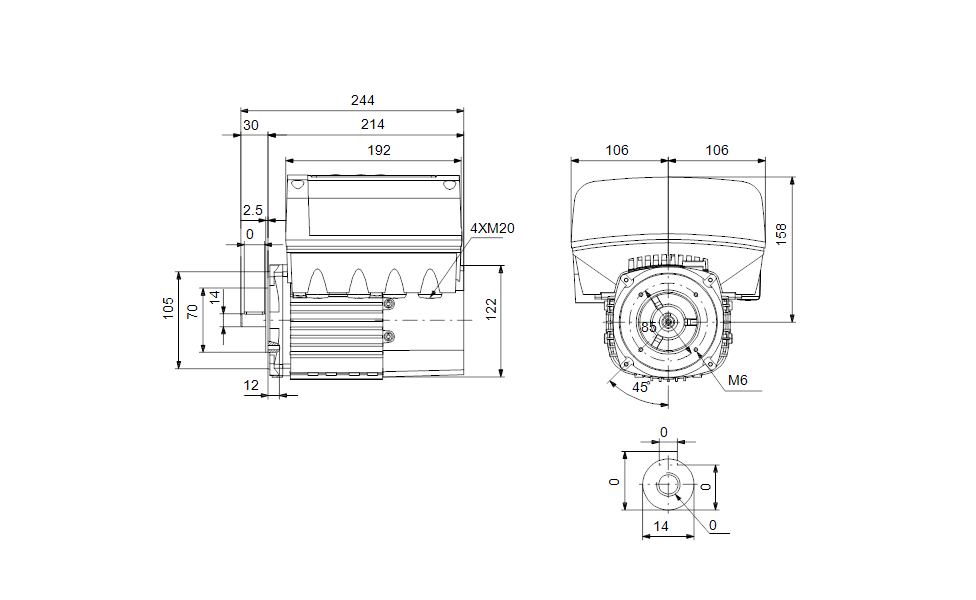

Dimensional Drawing

DWiring Diagram
