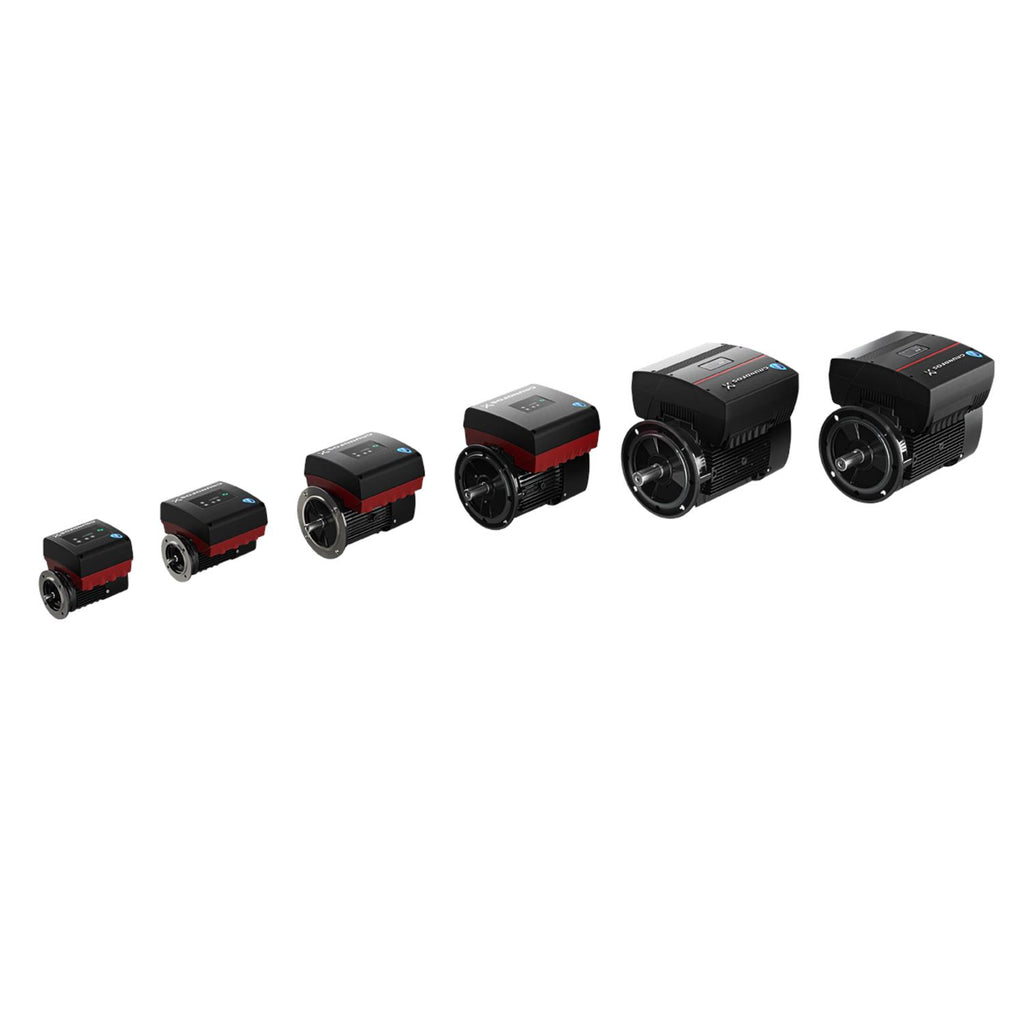

Grundfos 85901027 | Spare Motor | MGE180MB‑2 | 22 kW | Speed‑Control

GRUNDFOSSKU: 85901027

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

This Grundfos spare motor, model 85901027 for MGE180MB‑2, is a replacement speed‑control motor rated 22 kW used with industrial pump control systems by technicians and maintenance teams.

Key features

  • Replacement motor engineered for MGE/MLE pump control assemblies
  • Designed for use with Grundfos controls and accessories
  • Speed‑control capability provides stable performance and easier system integration

Applications

Suitable for industrial pumping systems, control cabinets, and motor replacements in commercial water and process installations where MGE series drives are used.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 85901027

EAN 5700836610866
Applications Motors
Applic. motor C9-S ADVANCED I/O
Approvals for motor WEEE
Bearing insulation type N-end N
Built-in motor protection YES
Cable gland entry 1xM40+1xM20+4xM16 knock out
Colour/Type NCS 9000 gloss 40+-10 /E-coat
Com. module CIM50 - GENIBus
Config. file no 95139381
Control panel Standard
Cooling IC 411
Enclosure class (IEC 34-5) IP55
Energy approvals for motor CE
Environmental approvals for motor WEEE
Flange size for motor FF300
Function Module ADVANCED I/O
IE Efficiency class IE3
Insulation class (IEC 85) F
Lubricant type UNIREX N3
Mains frequency 50 Hz
Material Pricing Group 3Y
Model F3
Moment of inertia 1.566 lb ft²
Motor WEEE
Motor efficiency at full load 1 0.927
Motor standard IEC
Motor type 180MB
Mount. design. acc. IEC 34-7 IM V1/B5
Net weight 348.0 lb
Number of poles 2
Power factor 1 0.91-0.90
Product family MGE, MLE
Range of ambient temperature -4 .. 104 °F
Rated current 43.5-35.0 A
Rated full-load torque 1 43.88 ft lb
Rated power - P2 22 kW
Rated speed 480-3540 rpm
Rated voltage 3 x 380-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Standard IEC
Temperature 1 4000 h / 104 °F
Thermal protec ELEC
Tropic protec no
Type NCS 9000 gloss 40+-10 /E-coat
Lubricant quan. 15 g

Motor Curves

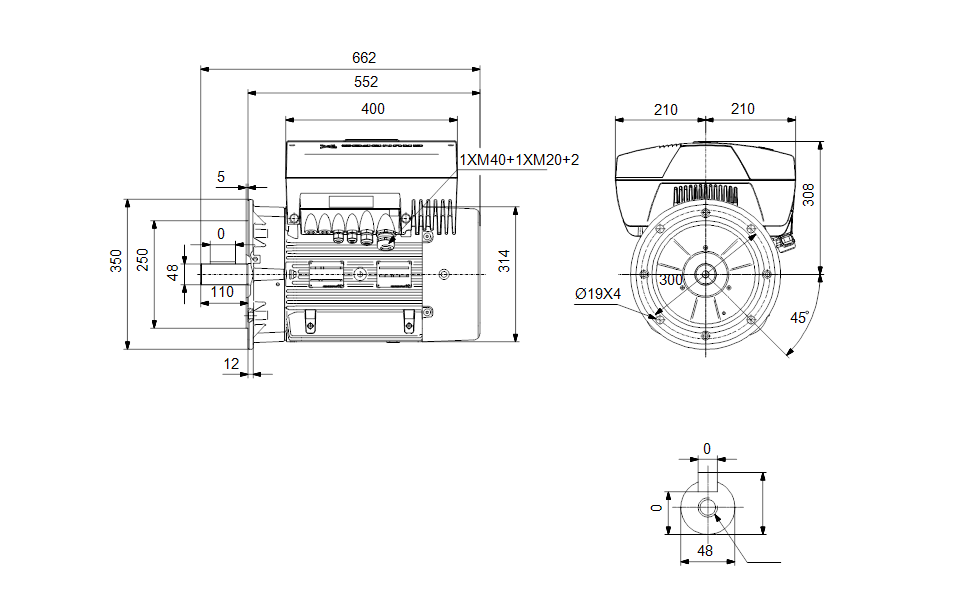

Dimensional Drawing

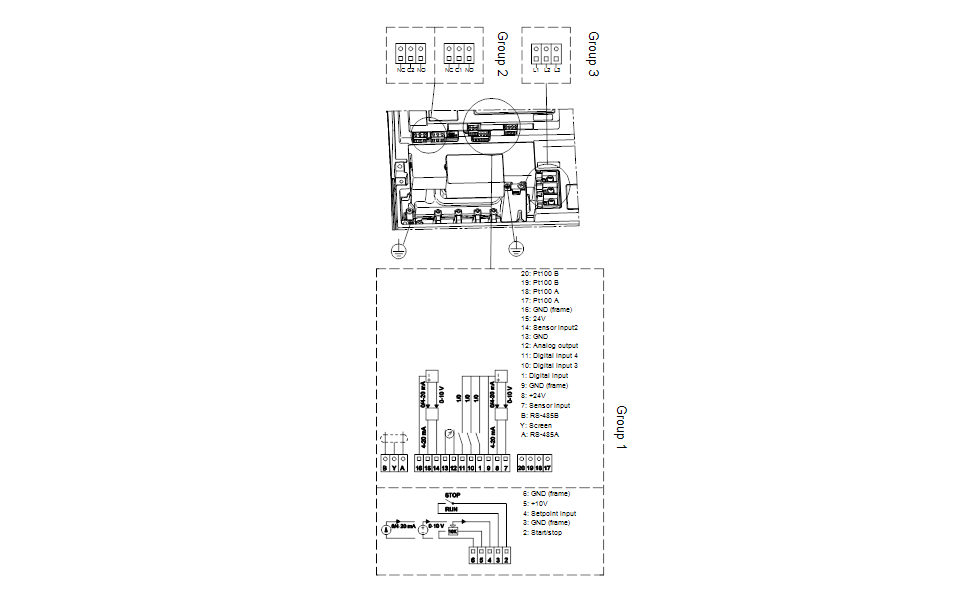

DWiring Diagram
