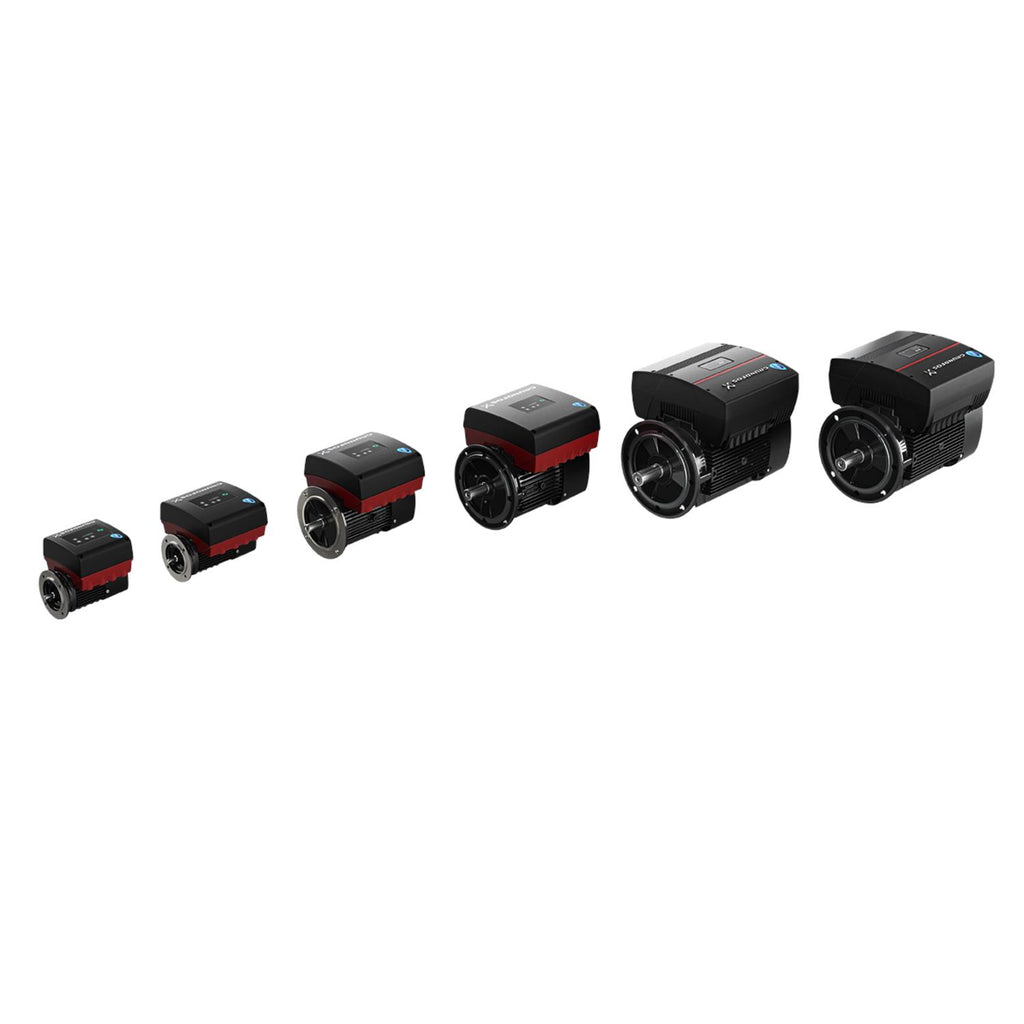

Grundfos 85757530 Three-Phase Motor | MGE 180MB | 22 kW | Spare Motor Kit

GRUNDFOSSKU: 85757530

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

This Grundfos 85757530 Three-Phase Motor (MGE 180MB) is a 22 kW spare motor kit designed for industrial pump systems and service technicians needing a direct replacement motor for MGE series equipment.

Key features

  • Three-phase 22 kW motor configured as a spare motor kit for MGE 180MB
  • Compatible with Grundfos controls & accessories and MGE/ MLE pump platforms
  • Provides reliable replacement performance to minimize downtime during repairs

Applications

Used as a replacement motor in industrial pumping systems, OEM maintenance and field service repairs, and mechanical overhauls where MGE series motors are specified.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 85757530

EAN 5700838540499
Applications Motors
Applic. motor C2-S PUMP I/O
Approvals for motor WEEE
Built-in motor protection YES
Cable gland entry 1xM40+1xM20+4xM16 knock out
Colour/Type NCS 9000 gloss 40+-10 /E-coat
Com. module CIM50 - GENIBus
Config. file no 95139381
Control panel Standard
Cooling IC 411
Enclosure class (IEC 34-5) IP55
Energy approvals for motor CE
Environmental approvals for motor WEEE
Flange size for motor FF300
Function Module PUMP I/O
IE Efficiency class IE3
Insulation class (IEC 85) F
Lubricant type UNIREX N3
Mains frequency 50 Hz
Material Pricing Group 3Y
Model F3
Moment of inertia 1.566 lb ft²
Motor WEEE
Motor efficiency at full load 1 0.927
Motor standard IEC
Motor type 180MB
Mount. design. acc. IEC 34-7 IM V1/B5
Net weight 348.0 lb
Number of poles 2
Power factor 1 0.91-0.90
Product family MGE, MLE
Range of ambient temperature -4 .. 104 °F
Rated current 43.5-35.0 A
Rated full-load torque 1 43.88 ft lb
Rated power - P2 22 kW
Rated speed 480-3540 rpm
Rated voltage 3 x 380-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Standard IEC
Temperature 1 4000 h / 104 °F
Thermal protec ELEC
Tropic protec no
Type NCS 9000 gloss 40+-10 /E-coat
Lubricant quan. 15 g

Motor Curves

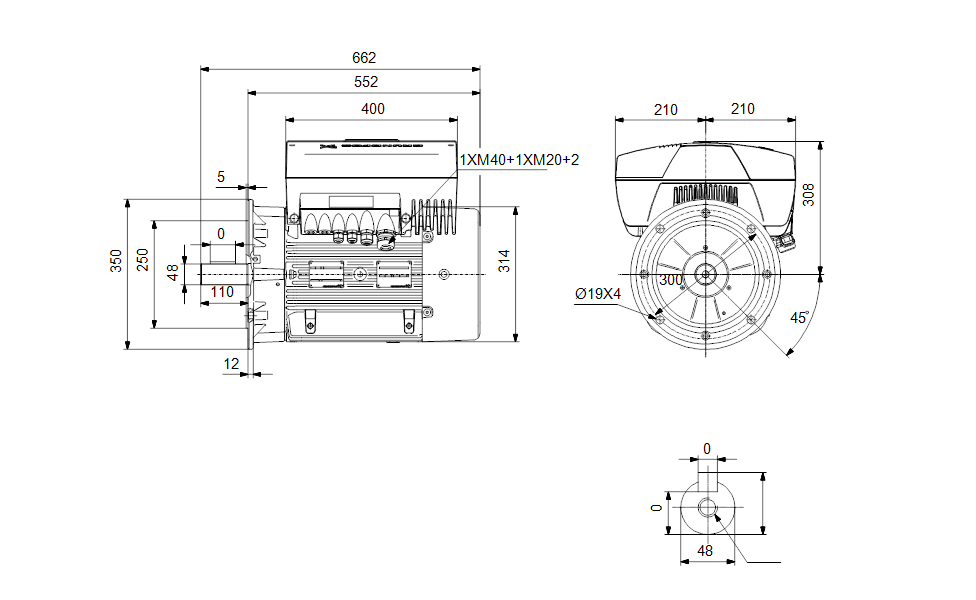

Dimensional Drawing

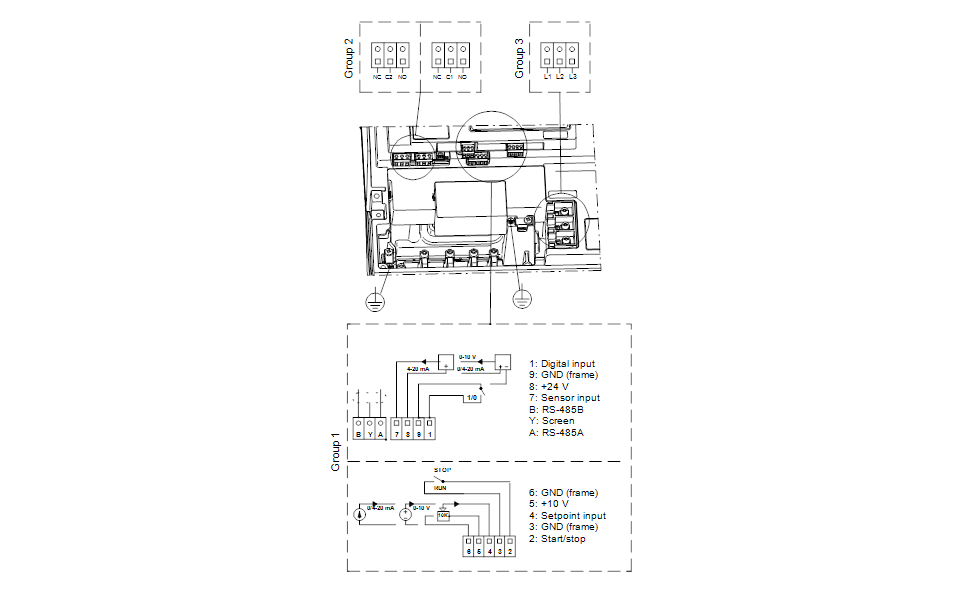

DWiring Diagram
