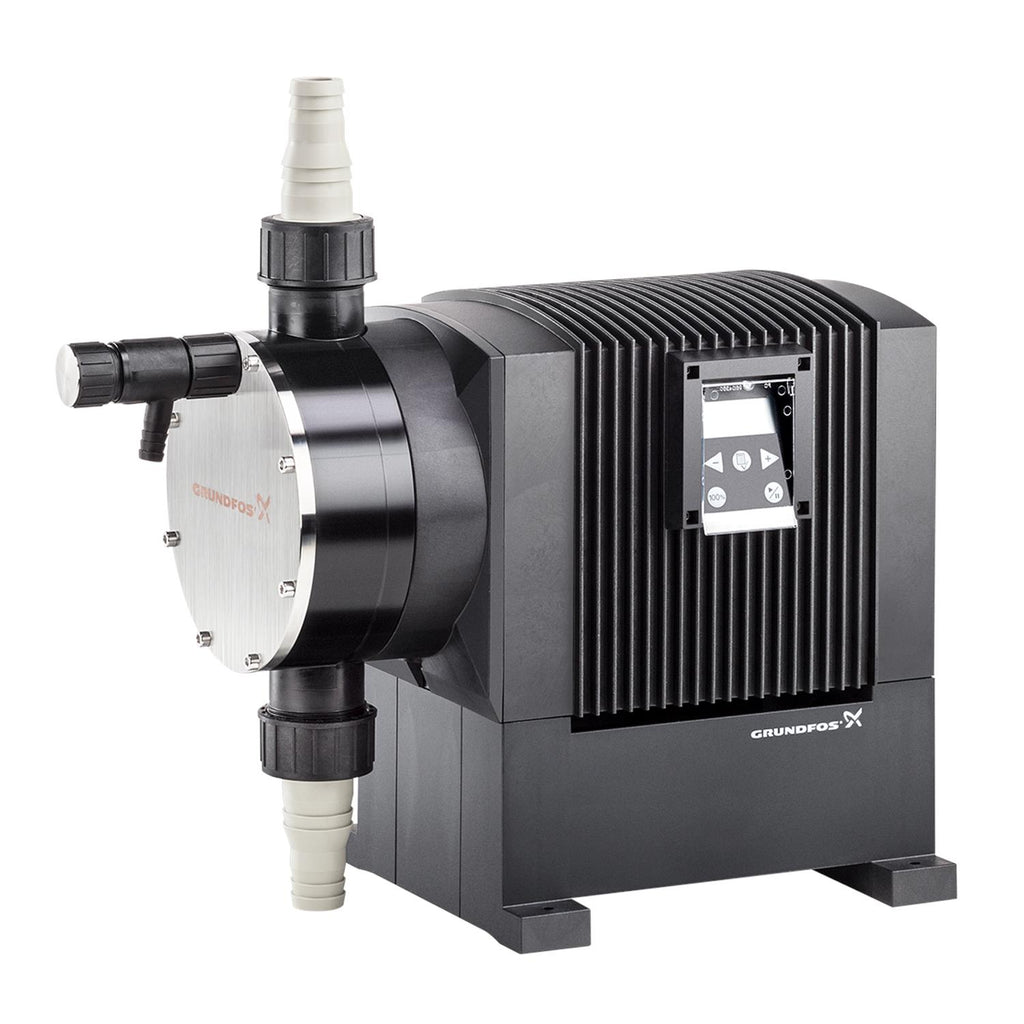

Grundfos 96529123 - DME375-10B PP/E/G-F-31A4A4B | Dosing Pump | Stepper Motor | High Accuracy

GrundfosSKU: 96529123

Price:
Sale price$11,922.22
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
DME375-10B PP/E/G-F-31A4A4B · Digital dosing pumps
DME375-10B120-240V1-Phase60 Hz

The Grundfos 96529123 (DME375-10B PP/E/G-F-31A4A4B) is a Digital dosing pumps 120-240V 1-Phase — Digital diaphragm dosing pumps with internal brushless motor drive. Designed for Process liquids transfer, Cooling, Industrial process water treatment.

Voltage
120-240V
Phase
1-Phase
Frequency
60 Hz
Max Pressure
145.04psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
gf-sh"
Why This Product

Motor-Driven Diaphragm — Precise and Pulsation-Free

Motor-driven diaphragm mechanism delivers chemically accurate dosing without the pressure variation of solenoid-driven designs. Consistent dose volume at each stroke regardless of back-pressure changes in the dosing line.

Grundfos Smart Digital Interface

DDA/DDC series pumps feature the Grundfos Smart Digital interface — touchscreen control, communication protocols (Profibus, Modbus, GENIbus), and external signal input for analogue control from analyzers and SCADA systems.

Chemical Resistance — PVDF and Stainless Construction

Liquid end components in PVDF (polyvinylidene fluoride), stainless steel, and EPDM/Viton for compatibility across a broad range of chemicals — acids, alkalis, oxidizers, and solvents used in water treatment and process applications.

Auto-Degas Function

Automatic degassing function purges gas bubbles from the pump head before dosing — critical for hypochlorite and other gas-releasing chemicals where air pockets cause dosing inaccuracy and pump damage.

Wide Flow Range with One Pump

Variable stroke frequency and length provide a wide effective flow range from a single pump — one pump covers multiple dosing rate requirements without requiring different pump models.

Leak Detection and Dry-Run Protection

Integrated leak detection and dry-run protection prevent chemical spills and pump damage from empty chemical containers — important safety features for unattended dosing installations.

Model Code Decoded — DME375-10B PP/E/G-F-31A4A4B
Series: DME375-10B
Model Code: DME375-10B PP/E/G-F-31A4A4B
Housing Material: Polypropylene
Performance
Max Operating Pressure 145.04psi
Electrical Specifications
Voltage 120-240V
Phase 1-Phase
Frequency 60 Hz
Full Load Current 2.4A
Cable / Plug Type USA,CANADA
Connections
Inlet Connection THREADED NPT 1 1/4"
Outlet Connection THREADED NPT 1 1/4"
Materials
Housing Material Polypropylene
Gasket Material EPDM
Product Identity
Model Number 96529123
Product Series DME375-10B
Model Code DME375-10B PP/E/G-F-31A4A4B
Approvals / Certifications CSA, CE
Applications
Process liquids transfer
Cooling
Industrial process water treatment
Important Notices
Electrical Requires correctly rated supply — 120-240V, 1-Phase, 60 Hz. Install with correctly rated circuit protection and motor starter.
Temperature limits Do not exceed max fluid temperature per nameplate. Operating outside these limits will damage seals and motor insulation.
Dry running Do not run dry. DME375-10B pumps use the pumped fluid to lubricate the shaft seal — dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance intervals. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — DME375-10B
✓ Product Data Sheet — DME375-10B PP/E/G-F-31A4A4B
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation requirements. For sizing help or spare parts guidance, chat or call (781) 281-8905.
EAN 5700397157305
Applications Dosing & Disinfection
4-20 mA control not integrated
Anti-cavitation function integrated
Approvals CSA
Batch (puls) not integrated
Batch (timer) not integrated
Capacity 375 l/h
Capacity limit max. capacity limitation function integrated
Control panel front
Control variant B
Density 62.29 lb/ft³
Gasket EPDM
Gross weight 53.2 lb
Housing Polypropylene
Level control not integrated
Mains frequency 60 Hz
Material Pricing Group 42
Max. capacity 1 375 l/h
Maximum operating pressure 10 bar
Model A
Net weight 46.3 lb
Other in/output no
Power 1 240 W
Power input - P1 240 W
Product family DME
Pulse control not integrated
Pump housing Polypropylene
Pump inlet THREADED NPT 1 1/4"
Pump outlet THREADED NPT 1 1/4"
Pumped liquid Water
Rated current 2.4 A
Rated voltage 1 x 120-240 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Selected liquid temperature 68 °F
Type of cable plug USA
Valve Standard
Valve ball Glass
Venting valve integrated in pump housing

Motor Curves

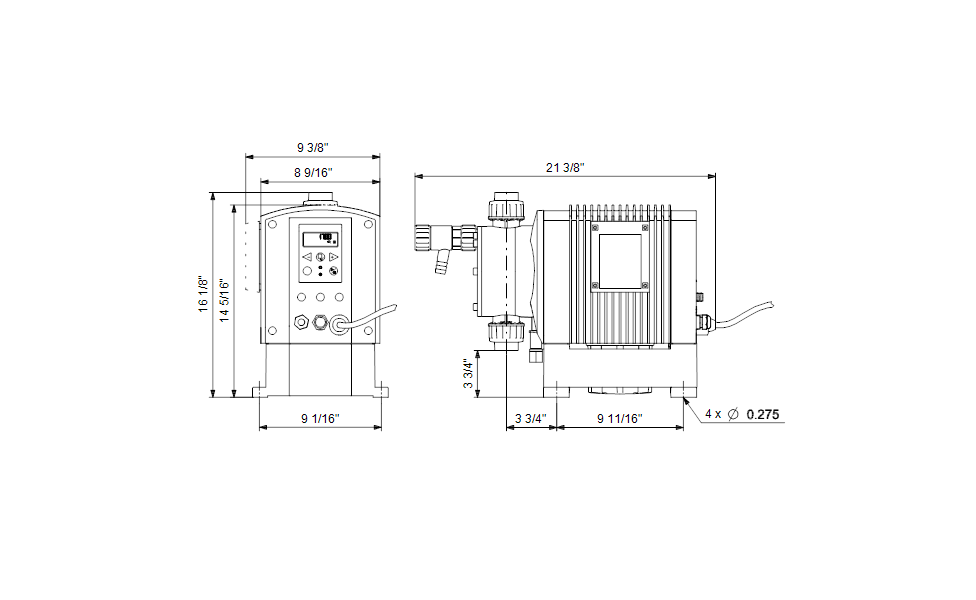

Dimensional Drawing

DWiring Diagram
