Grundfos 91129765 - CRT 8-5 A-P-A-E-AUUE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 91129765

Price:
Sale price$26,800.28
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

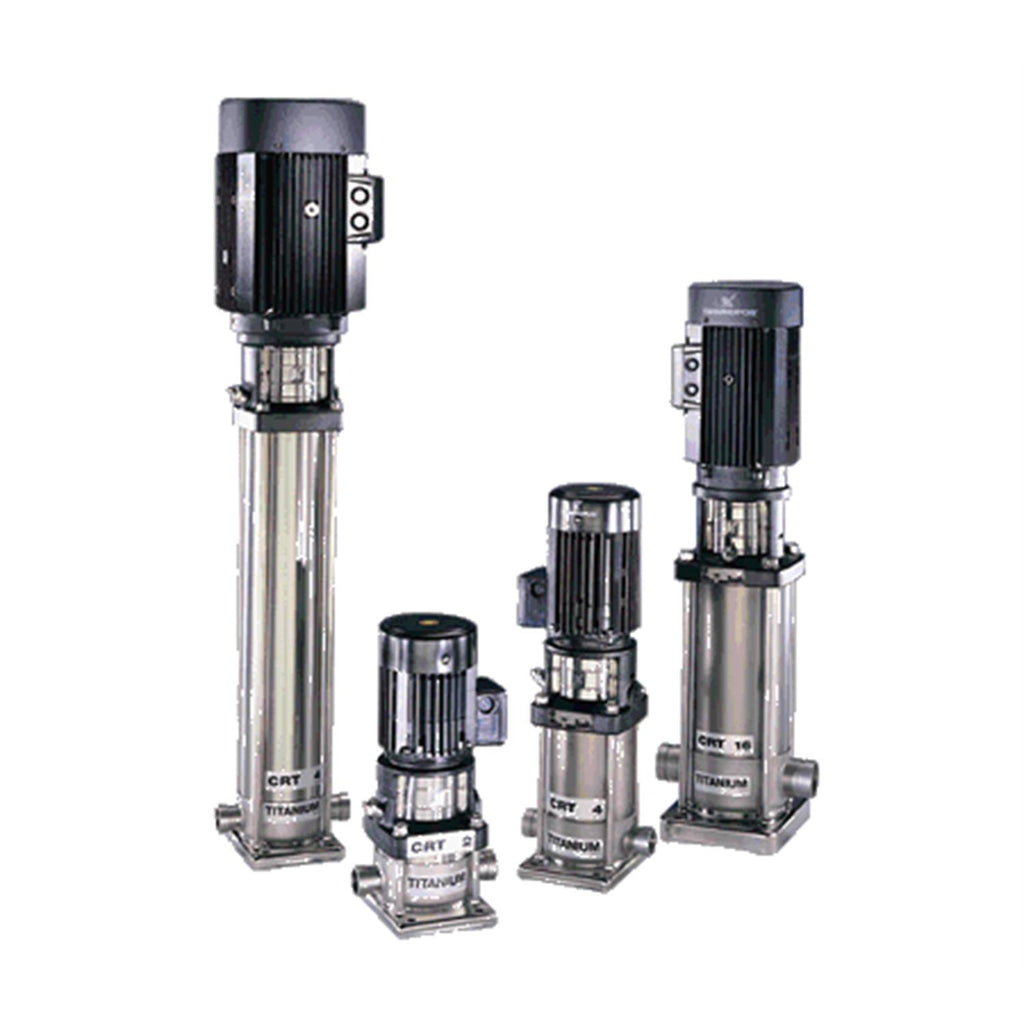

CRT 8-5 A-P-A-E-AUUE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in titanium. The pump is fitted with a mechanical shaft seal, type unbalanced O-ring seal. Power transmission is via a rigid split coupling. Pipe connection is via PJE (Victaulic®) couplings. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

EAN 5700398951056
Applications Industrial applications
Approvals CE
Built-in motor protection PTC
Code for rubber E
Connect code P
Connection PJE 2
Cooling TEFC
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Eta 1/1 84.5-85.5%
Flange size for motor 184TC
Frequency 60 HZ
Frequency converter NONE
Gross weight 137.0 lb
Head max 255.9 ft
Housing Titanium
Impeller Titanium
Impellers 5
Liquid max temp 120°C
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum operating pressure 362.59 psi
Maximum permissible operating pressure 25bar
Model A
Motor 184TC
Motor efficiency at 1/2 load 0.825
Motor efficiency at 3/4 load 0.845
Motor efficiency at full load 1 84.5-85.5 %
Motor protec PTC
Motor standard NEMA
Motor type 100BC
n rpm 3480-3510rpm
Net weight 123.0 lb
Number of poles 2
P2 HP 5 HP
P2 kW 3.7kW
Phase 3
Pipe connection PJE 2
Power factor 1 0.88-0.80
Primary shaft seal AUUE
Product family CRT 8
Pump housing Titanium
Pump version A
Pumped liquid Water
Rated flow 52.8 US gpm
Rated flow 2 52.8 US gpm
Rated head 186.4 ft
Rated head 2 186.4 ft
Rated power - P2 5 HP
Rated speed 3480-3510 rpm
Rated voltage 3 x 208-230YY/460Y V
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Shaft seal AUUE
Stages 6
Standard NEMA
Type 100BC
Version A
