Grundfos 96101007 - CRT 4-14 A-P-A-E-AUUE | Multistage | Centrifugal | Vertical | Inline

Save $8,582.26
GrundfosSKU: 96101007

Price:
Sale price$11,469.74 Regular price$20,052.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
CRT 4-14 A-P-A-E-AUUE · Grundfos Accessory / Spare Part / Control
ACC

The Grundfos 96101007 (CRT 4-14 A-P-A-E-AUUE) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor.

Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — CRT 4-14 A-P-A-E-AUUE
Series: ACC
Model Code: CRT 4-14 A-P-A-E-AUUE
Seal Type: Cartridge seal — A rubber bellows, UU SiC/SiC faces, E EPDM
Technical Specifications
Model Number 96101007
Product Series ACC
Series Description Grundfos Accessory / Spare Part / Control
Seal Code AUUE
Seal Description Cartridge seal — A rubber bellows, UU SiC/SiC faces, E EPDM
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation.
Temperature limits Do not exceed max fluid temperature per nameplate. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — CRT 4-14 A-P-A-E-AUUE
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5700396155050
Applications Industrial applications
Approvals CE
Code for rubber E
Connect code P
Connection PJE 1 1/4
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor 213TC
Flange standard Victaulic
Frequency 60 HZ
Frequency converter NONE
Gross weight 39.7 lb
Head max 675.9 ft
Housing Titanium
Impeller Titanium
Impellers 14
Liquid max temp 120°C
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum operating pressure 362.59 psi
Maximum permissible operating pressure 25bar
Model A
Motor 213TC
Motor standard NEMA
n rpm 3450rpm
Net weight 17.6 lb
Number of poles 2
Pipe connection PJE 1 1/4
Power (P2) required by pump 7.5 HP
Primary shaft seal AUUE
Product family CRT 4
Pump 7.5 HP
Pump housing Titanium
Pump version A
Pumped liquid Water
Rated flow 30.8 US gpm
Rated flow 2 30.8 US gpm
Rated head 448.2 ft
Rated head 2 448.2 ft
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Shaft seal AUUE
Stages 16
Standard Victaulic
Version A

Motor Curves

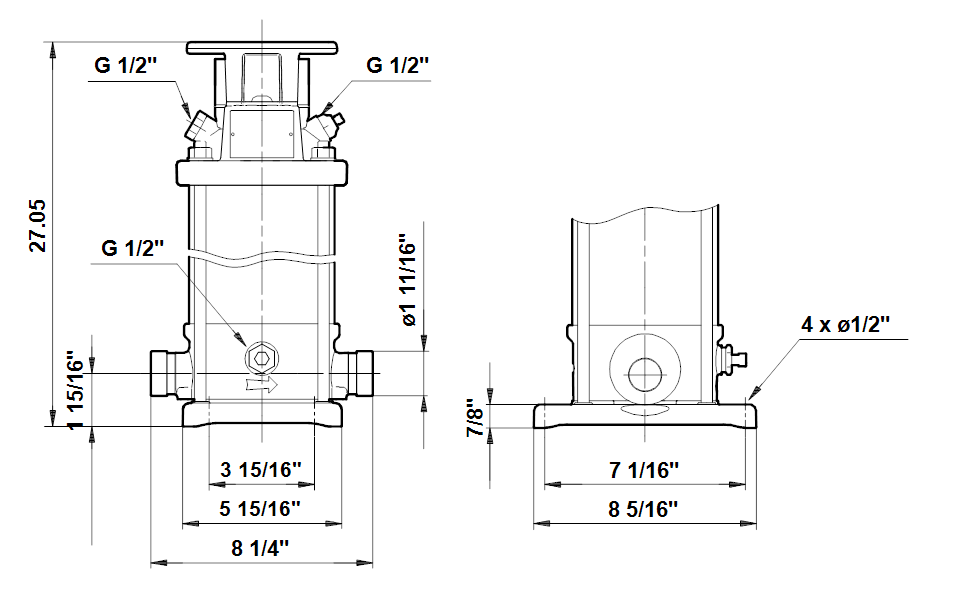

Dimensional Drawing
