Grundfos 96124887 - CRT 16-6 A-P-A-E-AUUE | Multistage | Centrifugal | Vertical | Inline

Save $11,309.04
GrundfosSKU: 96124887

Price:
Sale price$15,113.96 Regular price$26,423.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

⚠ Discontinued Product This model has been discontinued by Grundfos. Stock may be limited. Contact PumpStop to confirm availability or discuss a replacement model.
Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
CRT 16-6 A-P-A-E-AUUE · Grundfos Accessory / Spare Part / Control
ACC60 HzTitanium

The Grundfos 96124887 (CRT 16-6 A-P-A-E-AUUE) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Nominal performance: 79.3US gpm at 345.8ft. Applications include HVAC: Heating, HVAC: Air Conditioning, Plumbing: Pressure Boosting and more.

Max Flow
79.3US gpm
Max Head
345.8ft
Max Pressure
362.59psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — CRT 16-6 A-P-A-E-AUUE
Series: ACC
Model Code: CRT 16-6 A-P-A-E-AUUE
Seal Type: Cartridge seal — A rubber bellows, UU SiC/SiC faces, E EPDM
Impeller Material: Titanium
Housing Material: Titanium
Shaft Seal: AUUE
Technical Specifications
Model Number 96124887
Product Series ACC
Series Description Grundfos Accessory / Spare Part / Control
Frequency 60 Hz
Pump Speed 3479rpm
Nominal Flow 79.3US gpm
Nominal Head 345.8ft
Max Operating Pressure 362.59psi
Max Fluid Temperature 248°F
Nominal Pipe Bore PJE 2
Pipe Standard Victaulic
Impeller Material Titanium
Housing Material Titanium
Shaft Seal AUUE
Approvals / Certifications CE
Applications
HVAC: Heating
HVAC: Air Conditioning
Plumbing: Pressure Boosting
District heating
District cooling
Machining
Wash and clean
Process liquids transfer
Industrial heating
Cooling
Industrial water supply & transfer
Industrial wastewater treatment & reuse
Industrial process water treatment
Desalination
Municipal surface water
Drinking water treatment
Municipal water transportation
Municipal solar solutions
Rotor & spray irrigation
Ground water transfer
Livestock & Wildlife Watering
Water Treatment Fertigation
Chemigation & Dosing
Pivot & Lateral Irrigation
Frost protection
Solar boosting and water supply solutions
Controls and digital groundwater management
Solar controls and digital water management
Municipal solar solutions
Agriculture solar solutions
Livestock watering with solar solutions
Community solar solutions
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation.
Temperature limits Do not exceed max fluid temperature 248°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — CRT 16-6 A-P-A-E-AUUE
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5700397139745
Applications Industrial applications
Approvals CE
Code for rubber E
Connect code P
Connection PJE 2
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor 254TC
Flange standard Victaulic
Frequency 60 HZ
Frequency converter NONE
Gross weight 92.6 lb
Head max 411.4 ft
Housing Titanium
Impeller Titanium
Impellers 6
Liquid max temp 120°C
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum operating pressure 362.59 psi
Maximum permissible operating pressure 25bar
Model A
Motor 254TC
Motor standard NEMA
n rpm 3479rpm
Net weight 70.6 lb
Number of poles 2
Pipe connection PJE 2
Power (P2) required by pump 15 HP
Primary shaft seal AUUE
Product family CRT 16
Pump 15 HP
Pump housing Titanium
Pump version A
Pumped liquid Water
Rated flow 79.3 US gpm
Rated flow 2 79.3 US gpm
Rated head 345.8 ft
Rated head 2 345.8 ft
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Shaft seal AUUE
Stages 7
Standard Victaulic
Version A

Motor Curves

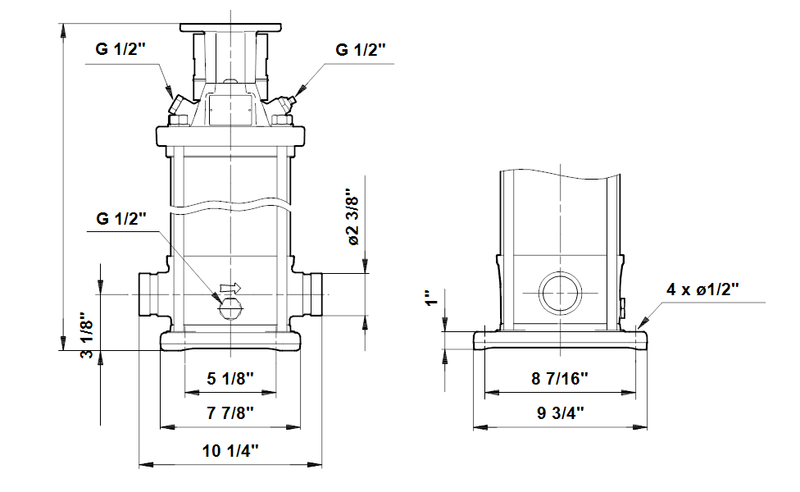

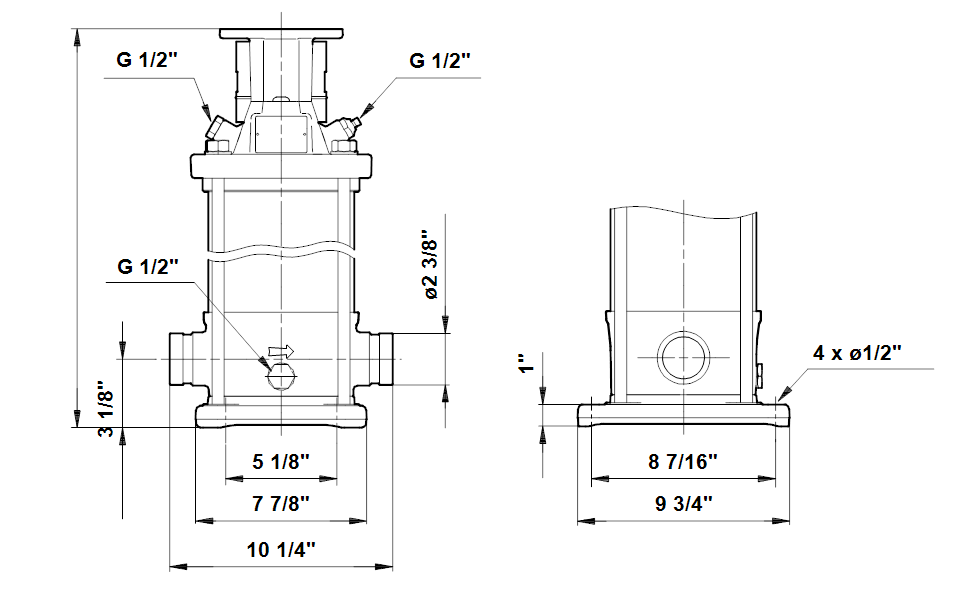

Dimensional Drawing
