Grundfos 91129985 - CRT 16-12 A-P-A-E-AUUE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 91129985

Price:
Sale price$68,343.62
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

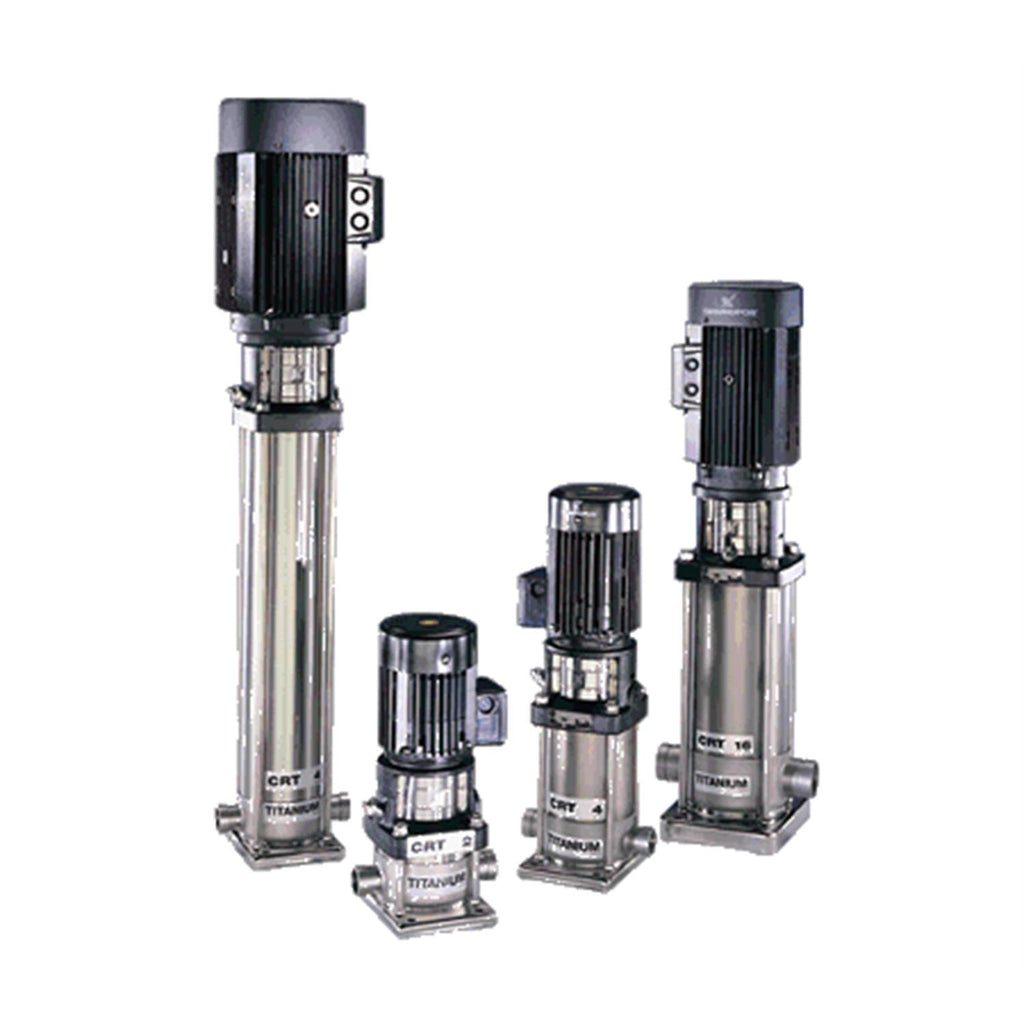

CRT 16-12 A-P-A-E-AUUE | Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in titanium. The pump is fitted with a mechanical shaft seal, type unbalanced O-ring seal. Power transmission is via a rigid split coupling. Pipe connection is via PJE (Victaulic®) couplings. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

EAN 5700398951513
Applications Industrial applications
Approvals CE
Built-in motor protection NONE
Code for rubber E
Connect code P
Connection PJE 2
Cooling ODP
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP23
Eta 1/1 0.93
Flange size for motor 284TC
Flange standard Victaulic
Frequency 60 HZ
Frequency converter NONE
Gross weight 441.0 lb
Head max 821.2 ft
Housing Titanium
Impeller Titanium
Impellers 12
Liquid max temp 120°C
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum operating pressure 362.59 psi
Maximum permissible operating pressure 25bar
Motor 284TC
Motor efficiency at full load 1 0.93
Motor protec NONE
Motor standard NEMA
Motor type BALDOR
n rpm 3520rpm
Net weight 397.0 lb
Number of poles 2
P2 HP 25 HP
P2 kW 18.5kW
Phase 3
Pipe connection PJE 2
Primary shaft seal AUUE
Product family CRT 16
Pump housing Titanium
Pump version A
Pumped liquid Water
Rated flow 79.3 US gpm
Rated flow 2 79.3 US gpm
Rated head 626.7 ft
Rated head 2 626.7 ft
Rated power - P2 25 HP
Rated speed 3520 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Shaft seal AUUE
Stages 14
Standard Victaulic
Type BALDOR
Version A
