Grundfos 97653286 - CR 1S-6 H-GA-A-E-HQQE | Horizontal | End Suction

Save $1,233.50
GrundfosSKU: 97653286

Price:
Sale price$1,648.50 Regular price$2,882.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
CR 1S-6 H-GA-A-E-HQQE · Vertical Multistage Centrifugal Pump
CR0.5HP115/208-230V1-Phase60 HzTEFCStainless steel

The Grundfos 97653286 (CR 1S-6 H-GA-A-E-HQQE) is a Vertical Multistage Centrifugal Pump. Cast iron head and base, stainless steel wetted parts. Used in water supply, pressure boosting, HVAC, and industrial liquid transfer. Nominal performance: 4.84US gpm at 114.2ft. Rated 115/208-230V, 1-Phase, 60 Hz.

Power
0.5HP
Voltage
115/208-230V
Phase
1-Phase
Max Flow
4.84US gpm
Max Head
114.2ft
Max Pressure
232.06psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Vertical Multistage Design

Multiple stages in series deliver high head at compact footprint. CR handles up to 60 bar and flow ranges from 0.5 to 900 m³/h across the series range.

Stainless Steel Wetted Parts

All parts in contact with the pumped fluid are stainless steel — impeller, shaft, chamber. Cast iron is used only for the head and base which never contact the fluid.

QuickTight Connection System

No special tools needed for coupling. Integrated coupling design reduces installation and service time.

Wide Configuration Range

Available in 60+ frame sizes and 16 impeller variants. CR can be configured for almost any pressure/flow combination in commercial and industrial water systems.

Authorized Grundfos Distributor

PumpStop supplies genuine Grundfos CR pumps with full manufacturer warranty and factory-trained technical support.

Contact PumpStop for Sizing

The CR family covers a wide operating range. Contact PumpStop to confirm the correct model, voltage, and frequency for your system.

Model Information — CR 1S-6 H-GA-A-E-HQQE
Series: CR
Model Code: CR 1S-6 H-GA-A-E-HQQE
Seal Type: Cartridge seal — H rubber bellows, QQ SiC/SiC faces, E EPDM O-ring
Impeller Material: Stainless steel
Housing Material: Cast iron
Shaft Seal: HQQE
Flange Rating: PN 16
Technical Specifications
Model Number 97653286
Product Series CR
Series Description Vertical Multistage Centrifugal Pump
Power 0.5HP
Voltage 115/208-230V
Phase 1-Phase
Frequency 60 Hz
Motor Speed 3450rpm
Pump Speed 3443rpm
Full Load Current 7,4/4,1-3,70A
Motor Type BALDOR
Motor Efficiency 62%
Insulation Class B
Protection Class (IP) TEFC
Nominal Flow 4.84US gpm
Nominal Head 114.2ft
Max Operating Pressure 232.06psi
Max Fluid Temperature 248°F
Max Ambient Temperature 104°F
Inlet Connection 1 1/2inch
Outlet Connection 1inch
Pipe Pressure Rating PN 16
Impeller Material Stainless steel
Housing Material Cast iron
Shaft Seal HQQE
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 115/208-230V, 1-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 248°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. CR pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — CR Series
✓ Product Data Sheet — CR 1S-6 H-GA-A-E-HQQE
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
Approvals on nameplate CURUS,NSF/ANSI 61
Bearing 1 SIC
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code GA
Connection PN 16
Cooling TEFC
Curve tolerance ISO9906:2012 3B
Flange rating inlet 150 lb
Flange size for motor 56C
Frequency 60 Hz
Frequency converter NONE
Gross weight 76.9 lb
IE efficiency 0.62
Impeller Stainless steel
Impellers 0
Insulation B
Insulation class (IEC 85) B
Liquid max temp 248°F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Maximum ambient temperature 104 °F
Maximum head 168.3 ft
Maximum operating pressure 232.06 psi
Model A
Motor 56C
Motor efficiency at full load 1 0.62
Motor standard NEMA
Motor type BALDOR
n rpm B
Net weight 64.6 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 kW 0.5 HP
Phase 1
Power (P2) required by pump 0.5 HP
Pressure rating for connection PN 16
Pressure sensor N
Pump 0.5 HP
Pump version H
Rated current 7,4/4,1-3,70 A
Rated flow 4.84 US gpm
Rated head 114.2 ft
Rated power - P2 0.5 HP
Rated speed 3450 rpm
Rated voltage 1 x 115/208-230 V
Rubber E
Sales region USA
Service factor 1.6
Shaft Product name:CR 1S-6 H-GA-A-E-HQQE
Shaft seal HQQE
Stages 6
Standard NEMA
Type BALDOR
Version H

Motor Curves

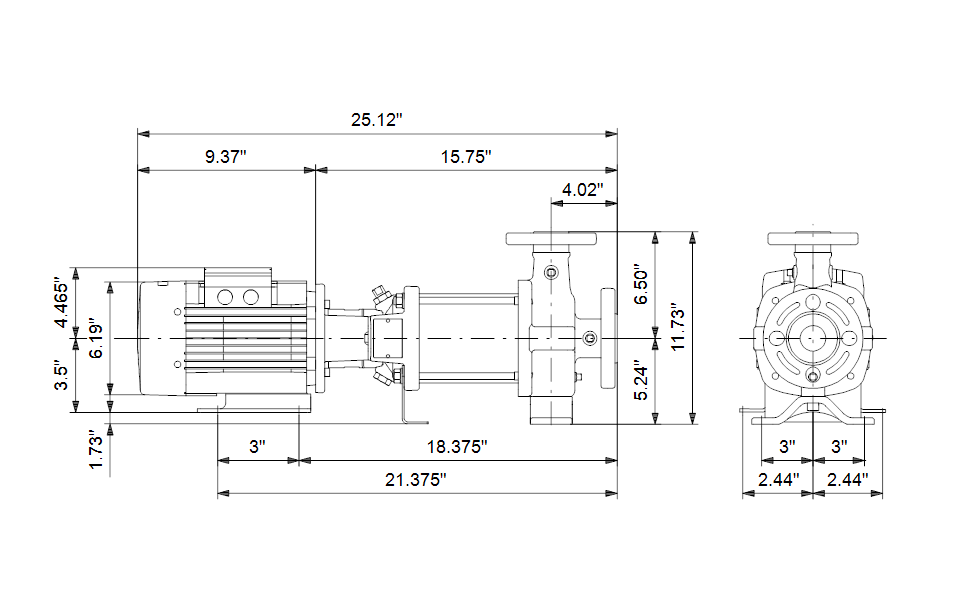

Dimensional Drawing

DWiring Diagram
