Grundfos 99438884 - CME25-2 A-S-A-E-AQQE | Multistage | Centrifugal | Horizontal

This item ships free!
GRUNDFOSSKU: 99438884

Price:
Sale price$9,316.67
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CME25-2 A-S-A-E-AQQE | CME is a compact horizontal multistage centrifugal pump, close-coupled with a: 3-phase, 200-240 V, 50 / 60 Hz Hz. Foot mounted E-motor. The CME motor includes frequency converter and PI-controller integrated in the motor terminal box. No additional motor protection is required as both motor and electronics are protected by integrated overload and temperature protection. The pump is with axial suction port and radial discharge port including a special designed mechanical shaft seal in the solution AQQE. Shaft, impellers, chambers and filling plugs are made of stainless steel. Suction and discharge are made of Cast iron. The CM can also operate as a CME by connecting the motor to a CUE. Please find more information in the CUE part of Win/WebCAPS. An external sensor can be connected if controlled pump operation is required for: flow
differential pressure
temperature controlSensor kits are available as accessories. The pump is equipped with a control panel that enables setting of: Required set-point
Min.
Max.
Stop. The control panel has indicator lights for "Operation" and "Fault". Communication with the pump is possible by means of Grundfos R100 remote control enabling further settings as well as reading out of a number of parameters such as : Actual value
Speed
Power input
Power consumptionThe terminal box holds terminals for the connection of: External start/stop (potential-free contact)
External remote setpoint setting via analog signal, 0 - 10 V, 0(4) - 20 mA,
10 V voltage supply for setpoint potentiometer, Imax = 5 mA,
sensor, 0 - 10 V, 0(4) - 20 mA,
24 V voltage supply for sensor, Imax = 40 mA,
input for forced control to MIN, MAX, External fault or Flowswitch (potential-free contact)
potential-free fault signal relay with changeover contact,
RS485 GENIbus.

EAN 5712609771155
Density 62.29 lb/ft³
Gross weight 122.0 lb
Liquid temperature range -4 .. 194 °F
Material Pricing Group 31
Max pressure at stated temp 145 psi / 194 °F
Max. capacity 2 ,
Maximum ambient temperature 104 °F
Net weight 114.0 lb
Rated flow 116 US gpm
Rated head 154.2 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Selected liquid temperature 68 °F

Motor Curves

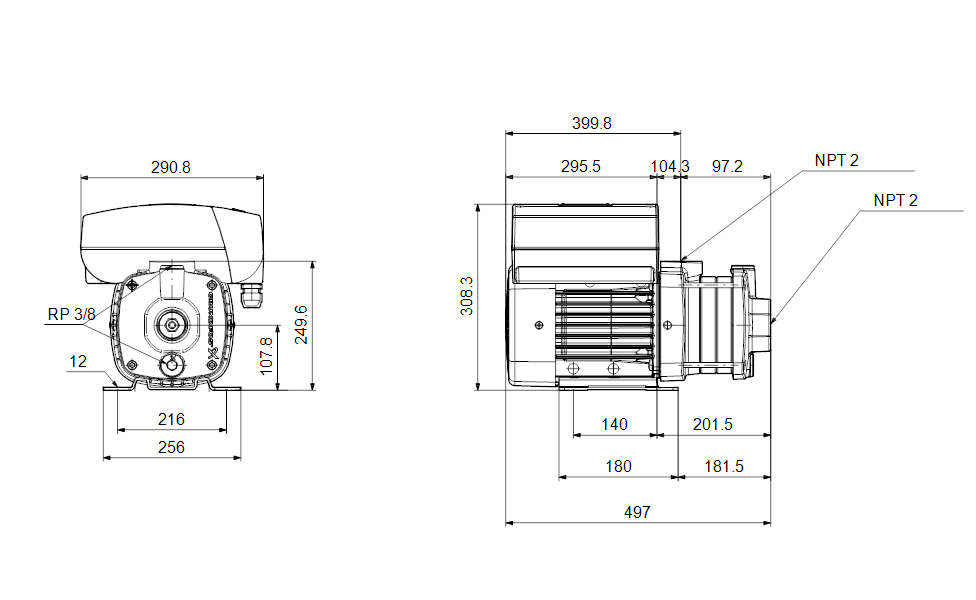

Dimensional Drawing

DWiring Diagram
