Grundfos 99438886 - CME15-3 A-S-A-E-AQQE | Multistage | Centrifugal | Horizontal

GRUNDFOSSKU: 99438886

Price:
Sale price$8,850.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CME15-3 A-S-A-E-AQQE | CME is a compact horizontal multistage centrifugal pump, close-coupled with a: 3-phase, 200-240 V, 50 / 60 Hz Hz. Foot mounted E-motor. The CME motor includes frequency converter and PI-controller integrated in the motor terminal box. No additional motor protection is required as both motor and electronics are protected by integrated overload and temperature protection. The pump is with axial suction port and radial discharge port including a special designed mechanical shaft seal in the solution AQQE. Shaft, impellers, chambers and filling plugs are made of stainless steel. Suction and discharge are made of Cast iron. The CM can also operate as a CME by connecting the motor to a CUE. Please find more information in the CUE part of Win/WebCAPS. An external sensor can be connected if controlled pump operation is required for: flow
differential pressure
temperature controlSensor kits are available as accessories. The pump is equipped with a control panel that enables setting of: Required set-point
Min.
Max.
Stop. The control panel has indicator lights for "Operation" and "Fault". Communication with the pump is possible by means of Grundfos R100 remote control enabling further settings as well as reading out of a number of parameters such as : Actual value
Speed
Power input
Power consumptionThe terminal box holds terminals for the connection of: External start/stop (potential-free contact)
External remote setpoint setting via analog signal, 0 - 10 V, 0(4) - 20 mA,
10 V voltage supply for setpoint potentiometer, Imax = 5 mA,
sensor, 0 - 10 V, 0(4) - 20 mA,
24 V voltage supply for sensor, Imax = 40 mA,
input for forced control to MIN, MAX, External fault or Flowswitch (potential-free contact)
potential-free fault signal relay with changeover contact,
RS485 GENIbus.

EAN 5712609771179
Approvals CE
Code for rubber E
Config. file no 99303408
Connect code S
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange standard INTERNAL NPT THREAD
Full load SF current 23.0-19.3 A
Gross weight 124.0 lb
Housing Cast iron
IE Efficiency class IE5
Impeller Stainless steel
Impellers 3
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Mains frequency 50 / 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 145 psi / 194 °F
Maximum ambient temperature 104 °F
Maximum operating pressure 10 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor type 132F
Net weight 116.0 lb
Primary shaft seal AQQE
Pump housing Cast iron
Pump inlet NPT 2
Pump outlet NPT 2
Pump speed on which pump data are based 3480 rpm
Pump version A
Pumped liquid Water
Rated current 20.0-16.6 A
Rated flow 89.8 US gpm
Rated head 211 ft
Rated power - P2 5.5 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 200-240 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Standard INTERNAL NPT THREAD
Type 132F
Version A

Motor Curves

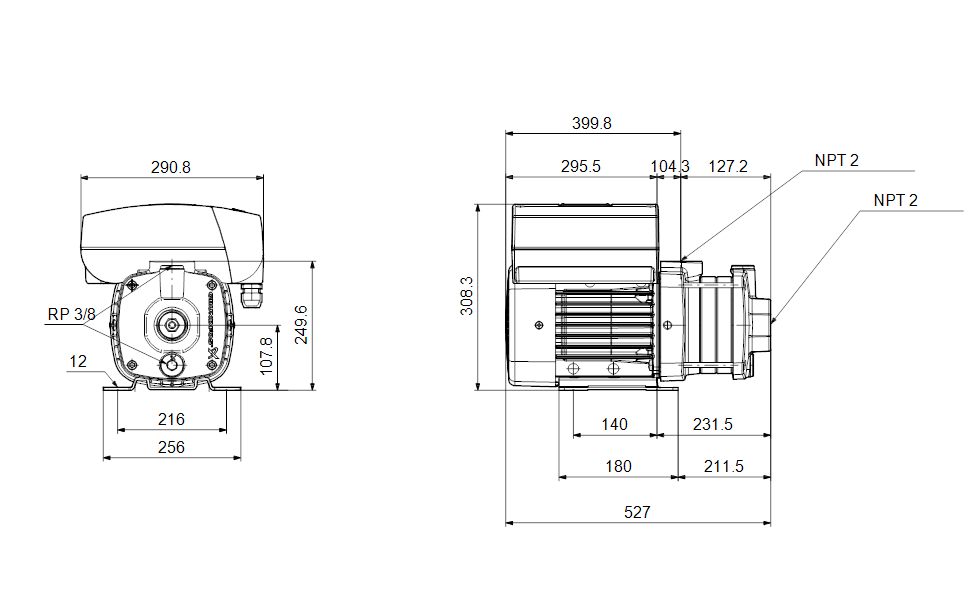

Dimensional Drawing

DWiring Diagram
